基于SIFT特征的图像特征提取

    import cv2
    import numpy as np
    img = cv2.imread('home.jpg')
    gray= cv2.cvtColor(img,cv2.COLOR_BGR2GRAY)
    sift = cv2.SIFT()
    kp = sift.detect(gray,None)
    img=cv2.drawKeypoints(gray,kp)
    cv2.imwrite('sift_keypoints.jpg',img)

    # Developer：Fazzie
    # Time: 2020/6/1420:25
    # File name: SIFT.py
    # Development environment: Anaconda Python

    import cv2
    import numpy as np
    import scipy
    import _pickle as pickle
    import random
    import os
    from matplotlib import pyplot as plt
    import scipy.spatial

    # 特征提取模块
    def feature_extract(image_path,vector_size=32):
        img = cv2.imread(image_path,1)#读取图片
        # 显示图片
        # cv2.imshow('image',img)
        # cv2.waitKey(0)
        # cv2.destroyAllWindows()

        # SIFT特征提取
        gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
        sift = cv2.xfeatures2d.SIFT_create()
     kp = sift.detect(gray, None)

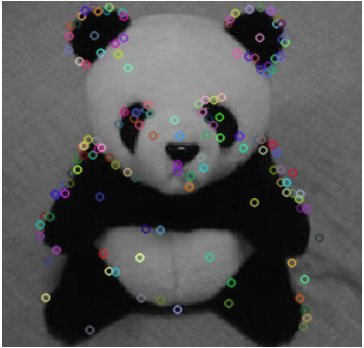

      # 画出特征点并保存
        img = cv2.drawKeypoints(gray, kp, img)
        cv2.imwrite('sift_keypoints.jpg', img)

        # 根据关键点的返回值进行排序（越大越好）
        kp = sorted(kp, key=lambda x: -x.response)[:vector_size]

        # 计算描述符向量
        kp, des = sift.compute(gray, kp)

        # 将其放在一个大的向量中，作为我们的特征向量
        des = des.flatten()

        # 使描述符的大小一致
        # 描述符向量的大小为128
        needed_size = (vector_size * 128)
        if des.size < needed_size:
            # 如果少于32个描述符，则在特征向量后面补零
            des = np.concatenate([des, np.zeros(needed_size - des.size)])

        return des

    #   数据存储
    def batch_extractor(images_path, pickled_db_path="features.pck"):
        files = [os.path.join(images_path, p) for p in sorted(os.listdir(images_path))]
        result = {}
        for f in files:
            print('Extracting features from image %s' % f)
            name = f.split('/')[-1].lower()
            result[name] = feature_extract(f)

        # 将特征向量存于pickled 文件
        with open(pickled_db_path, 'wb') as fp:
            pickle.dump(result, fp)

    # 图像特征匹配模块
    class Matcher(object):

        def __init__(self, pickled_db_path="features.pck"):
            with open(pickled_db_path,"rb") as fp:
                self.data = pickle.load(fp)
            self.names = []
            self.matrix = []
            for k, v in self.data.items():
                self.names.append(k)
                self.matrix.append(v)
            self.matrix = np.array(self.matrix)
            self.names = np.array(self.names)

        def cos_cdist(self, vector):
            # 计算待搜索图像与数据库图像的余弦距离
            v = vector.reshape(1, -1)
            return scipy.spatial.distance.cdist(self.matrix, v, 'cosine').reshape(-1)

        def match(self, image_path, topn=5):
            features = feature_extract(image_path)
            img_distances = self.cos_cdist(features)
            # 获得前5个记录
            nearest_ids = np.argsort(img_distances)[:topn].tolist()

            nearest_img_paths = self.names[nearest_ids].tolist()
            return nearest_img_paths, img_distances[nearest_ids].tolist()


    def show_img(path):
        img = cv2.imread(path,1)
        plt.imshow(img)
        plt.show()

    # 主程序
    def run():
        images_path = 'E:/Code/SFIT/101_ObjectCategories/panda/'
        files = [os.path.join(images_path, p) for p in sorted(os.listdir(images_path))]
        # 随机获取1张图

        sample = random.sample(files, 1)

        batch_extractor(images_path)

        ma = Matcher('features.pck')

        for s in sample:
            print('Query image ==========================================')
            show_img(s)
            names, match = ma.match(s, topn=3)
            print('Result images ========================================')
            for i in range(3):

                # 我们得到了余弦距离，向量之间的余弦距离越小表示它们越相似，因此我们从1中减去它以得到匹配值
                print('Match %s' % (1 - match[i]))
                show_img(os.path.join(images_path, names[i]))

    run()
