WSI医学图像处理

 pip install histolab


 from histolab.data import prostate_tissue, ovarian_tissue



 prostate_svs, prostate_path = prostate_tissue()

 ovarian_svs, ovarian_path = ovarian_tissue()





 from histolab.slide import Slide

 import os

 BASE_PATH = os.getcwd()

 PROCESS_PATH_PROSTATE = os.path.join(BASE_PATH, 'prostate', 'processed')

 PROCESS_PATH_OVARIAN = os.path.join(BASE_PATH, 'ovarian', 'processed')



 prostate_slide = Slide(prostate_path, processed_path=PROCESS_PATH_PROSTATE)

 ovarian_slide = Slide(ovarian_path, processed_path=PROCESS_PATH_OVARIAN)



 #显示图片信息（名称、层数、各层维度）

 print(f"Slide name: {prostate_slide.name}")

 print(f"Levels: {prostate_slide.levels}")

 print(f"Dimensions at level 0: {prostate_slide.dimensions}")

 print(f"Dimensions at level 1: {prostate_slide.level_dimensions(level=1)}")

 print(f"Dimensions at level 2: {prostate_slide.level_dimensions(level=2)}")

 #Slide name: TCGA-CH-5753-01A-01-BS1.4311c533-f9c1-4c6f-8b10-922daa3c2e3e

 #Levels: [0, 1, 2]

 #Dimensions at level 0: (16000, 15316)

 #Dimensions at level 1: (4000, 3829)

 #Dimensions at level 2: (2000, 1914)



 print(f"Slide name: {ovarian_slide.name}")

 print(f"Levels: {ovarian_slide.levels}")

 print(f"Dimensions at level 0: {ovarian_slide.dimensions}")

 print(f"Dimensions at level 1: {ovarian_slide.level_dimensions(level=1)}")

 print(f"Dimensions at level 2: {ovarian_slide.level_dimensions(level=2)}")

 #Slide name: TCGA-13-1404-01A-01-TS1.cecf7044-1d29-4d14-b137-821f8d48881e

 #Levels: [0, 1, 2]

 #Dimensions at level 0: (30001, 33987)

 #Dimensions at level 1: (7500, 8496)

 #Dimensions at level 2: (1875, 2124)





 #图片展示

 prostate_slide.show()

 ovarian_slide.show()




    python


![](https://ad.itadn.com/c/weblog/blog-img/images/2025-07-12/wQY2vMab8nCfVREzxmuIcOXZ4T5e.png)

 import openslide


 import numpy as np

 from IPython.display import display

 import cv2



 def display_wsi_info_and_level(wsi_path, level):

     # 打开 WSI 文件

     slide = openslide.open_slide(wsi_path)



     # 获取 WSI 的尺寸

     width, height = slide.dimensions

     print("WSI尺寸：{}x{}".format(width, height))



     # 获取 WSI 的 level 数量

     num_levels = slide.level_count

     dimensions = slide.level_dimensions

     print("WSI Level数量：", num_levels)

     print("WSI Level明细：", dimensions)



     #获取WSI元数据，读取相关信息

     if 'aperio.AppMag' in slide.properties.keys():

     level_0_magnification = int(slide.properties['aperio.AppMag'])

     elif 'openslide.mpp-x' in slide.properties.keys():

     level_0_magnification = 40 if int(np.floor(float(slide.properties['openslide.mpp-x']) * 10)) == 2 else 20

     else:

     level_0_magnification = 40



     #输出level0对应的放大倍数

     print("level_0对应的放大倍数为:",level_0_magnification)



     magnification = 5

     # 根据levle0放大倍数和指定需要的放大倍数计算放大倍率，比如level0的放大倍数如果是40倍，那么想要5倍的话，下采样率就是40/5=8

     downsample = level_0_magnification/5



     # 获取与该下采样率对应的放大倍数最接近的 Level级别

     level = slide.get_best_level_for_downsample(downsample)



     # 打印 Level

     print("{}倍放大倍率对应Level_{}".format(magnification,level))





     # 显示出对应 level 的图像数据

     image = slide.read_region((0, 0), slide.level_count - 5, slide.level_dimensions[5])



     # 调用电脑相册显示图像

     image.show()



     # 直接在notebook上显示图像

     display(image)



     image = cv2.cvtColor(np.array(image), cv2.COLOR_RGBA2BGR)  # 转换为 OpenCV 格式的图像

     # 保存图像为普通的图像文件

     output_path = 'path_to_output_image.jpg'  # 替换为输出图像的路径

     cv2.imwrite(output_path, image)



 # 指定 WSI 文件路径和选择的 level

 wsi_path = r"C:\Usersy\Desktop\detect_example\all\B2015\B2015.svs"

 selected_level = 0



 # 调用函数进行显示

 display_wsi_info_and_level(wsi_path, selected_level)




    python


![](https://ad.itadn.com/c/weblog/blog-img/images/2025-07-12/BhekK83U2yOaisvAxHjrYZ7tPQgz.png)

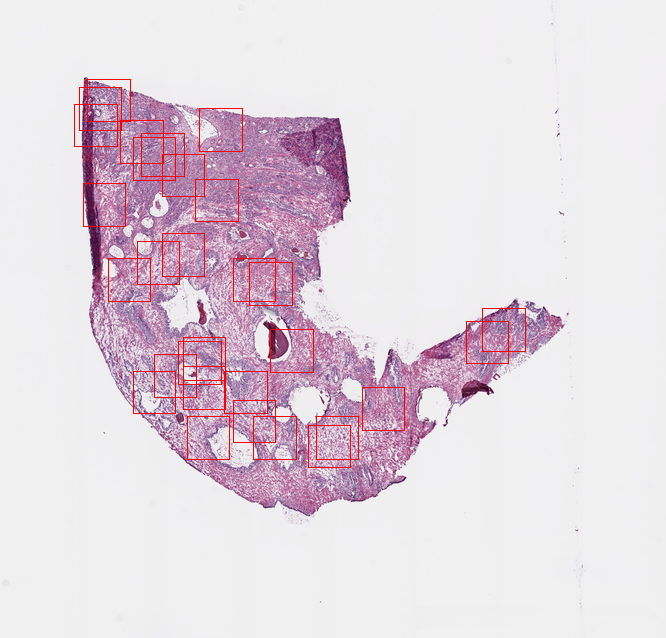

 from histolab.tiler import RandomTiler




 random_tiles_extractor = RandomTiler(

     tile_size=(128, 128),

     n_tiles=30,

     level=2,

     seed=42,

     check_tissue=True, # default

     tissue_percent=80.0, # default

     prefix="random/", # save tiles in the "random" subdirectory of slide's processed_path

     suffix=".png" # default

 )



 random_tiles_extractor.locate_tiles(

     slide=prostate_slide,

     scale_factor=24,  # default

     alpha=128,  # default

     outline="red",  # default

 )




    python


![](https://ad.itadn.com/c/weblog/blog-img/images/2025-07-12/iOCsrvX1yxQH7h6joMPlkpGf5DmF.png)

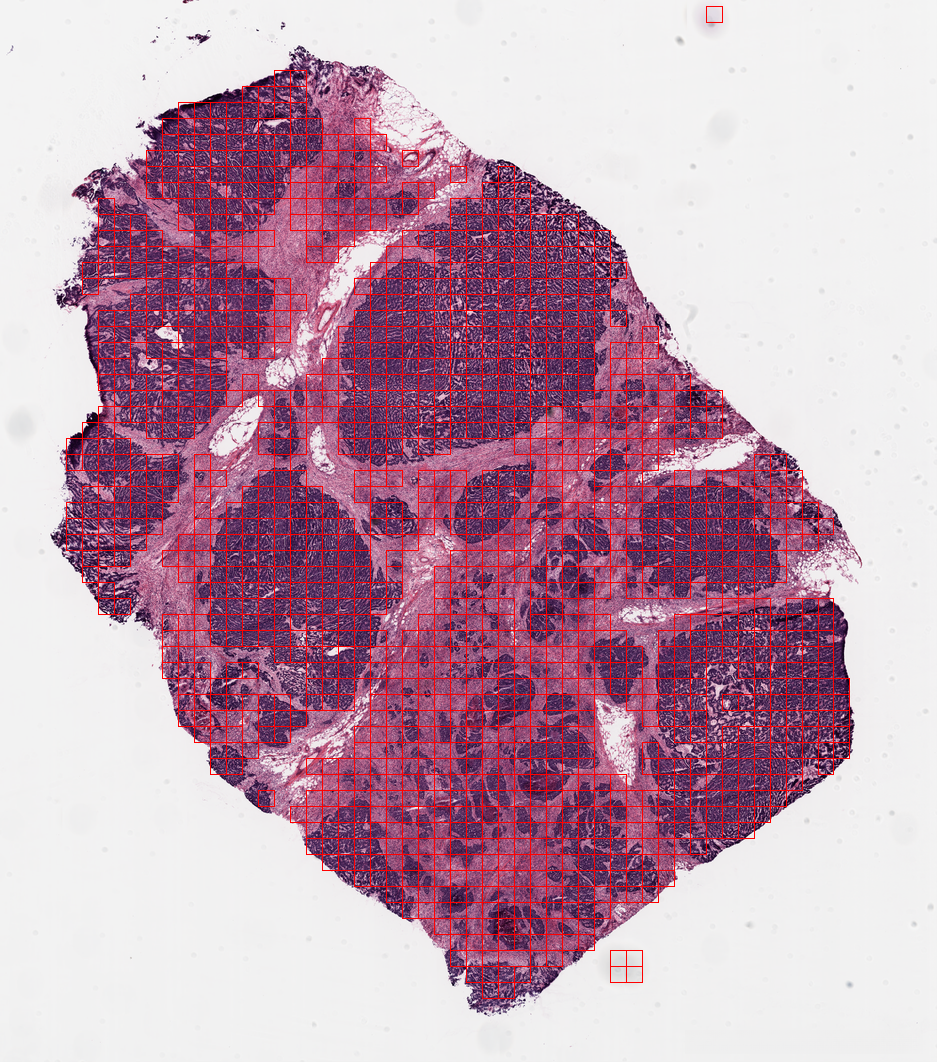

 from histolab.tiler import GridTiler




 grid_tiles_extractor = GridTiler(

    tile_size=(512, 512),

    level=0,

    check_tissue=True, # default

    pixel_overlap=0, # default 定义两个相邻平铺之间重叠像素数

    prefix="grid/", # save tiles in the "grid" subdirectory of slide's processed_path

    suffix=".png" # default

 )



 grid_tiles_extractor.locate_tiles(

     slide=ovarian_slide,

     scale_factor=64,

     alpha=64,

     outline="#FFFFFF",

 )



 grid_tiles_extractor.locate_tiles(

     slide=ovarian_slide,

     scale_factor=64,

     alpha=64,

     outline="#046C4C",

 )




    python


![](https://ad.itadn.com/c/weblog/blog-img/images/2025-07-12/MPCbjevUD5nYocaE34TGgrSJlIHZ.png)

 from histolab.tiler import ScoreTiler


 from histolab.scorer import NucleiScorer



 scored_tiles_extractor = ScoreTiler(

     scorer = NucleiScorer(),

     tile_size=(512, 512),

     n_tiles=100,

     level=0,

     check_tissue=True,

     tissue_percent=80.0,

     pixel_overlap=0, # default

     prefix="scored/", # save tiles in the "scored" subdirectory of slide's processed_path

     suffix=".png" # default

 )



 grid_tiles_extractor.locate_tiles(slide=ovarian_slide)




    python


![](https://ad.itadn.com/c/weblog/blog-img/images/2025-07-12/ILvRGxoDACcnOgE4MUHJW8bBrk5F.png)

 from openslide import OpenSlide


 import openslide

 import numpy as np

 import imageio



 # 读入一个WSI图像，生成一个slide实例

 slide = openslide.open_slide(r"C:\Users\Desktop\example2\B2015.svs")



 #原始图像经各个level水平缩放后的长和宽

 slide.level_dimensions



 # downsamples,网上都成为下采样因子，可能不好理解，它代表的将原始WSI图像进行缩放的倍数，与level_dimentions是相对应的

 slide.level_downsamples



 # 将level_dimentions图像的长宽乘以对应的level_downsamples的缩放倍数，就可以得到原始图像大小

 np.array(slide.level_dimensions[-1])*slide.level_downsamples[-1]



 # 查看WSI的level数

 slide.level_count



 # read_region(location, level, size)，Return an RGBA Image containing the contents of the specified region.

 # Parameters:

 # location (tuple) tuple giving the top left pixel in the level 0 reference frame

 # level (int)  the level number

 # size (tuple) (width, height) tuple giving the region size

 # read_region()返回一个数组的rgba数值数组

 slide.read_region((0,0),0,slide.level_dimensions[0])



 import openslide

 import numpy as np

 import imageio





 slide= openslide.open_slide(r"C:\Users\Desktop\example2\B2015.svs") #载入全扫描图  openslide.OpenSlide??

 dst_path="C:\ Users\ Desktop\ 新建文件夹\ ejc1\ 新建文件夹"#该文件夹下所有的文件（包括文件夹）

 [m,n] = slide.dimensions #第0层，也就是最高分辨率的宽高。

 print(m,n)



 N = 1024

 ml = N * m//N

 nl = N * n//N



 for i in range(0, ml, N):   # 这里由于只是想实现剪切功能，暂时忽略边缘不足N*N的部分

     for j in range(0, nl, N):

     im = np.array(slide.read_region((i, j), 0, (N, N)))

     imageio.imwrite(dst_path + str(i) + '-' + str(j) + '.tif', im)  # patch命名为‘x-y’



 slide.close()   # 关闭文件




    python


![](https://ad.itadn.com/c/weblog/blog-img/images/2025-07-12/lRuZwjaD8U3ThoMtHbQIx9VdOASi.png)

 from histolab.slide import Slide


 import os

 BASE_PATH = os.getcwd()

 #CRC_path=r'tumor/1.svs'#图片位置

 CRC_path=r"E:\test\B2015.svs"#图片位置

 #path=r"tcga"#切割完成后图片存放的位置

 path=r"E:\cut"

 CRC_slide = Slide(CRC_path,processed_path=path)

 print(f"Slide name:{CRC_slide.name}")#幻灯片名称

 print(f"Levels:{CRC_slide.levels}")

 print(f"Dimensions at level 2:{CRC_slide.level_dimensions(level=2)}")

 print(f"Dimensions at level 0:{CRC_slide.level_dimensions(level=4)}")



 from histolab.tiler import GridTiler

 grid_tiles_extractor = GridTiler(

    tile_size=(1024,1024),

     # level=2,

    level=0,

    check_tissue=True, # default

    pixel_overlap=0, # default 定义两个相邻平铺之间重叠像素数

    #prefix="tumor/", # save tiles in the "grid" subdirectory of slide's processed_path

    prefix="tumor/",

    suffix=".png" # default

 )

 grid_tiles_extractor.locate_tiles(

     slide=CRC_slide,

     scale_factor=64,

     alpha=64,

     outline="red",

 )



 grid_tiles_extractor.extract(CRC_slide)



 #文件夹内所有图片的cut

 import pandas as pd

 import os,sys

 import shutil

 from histolab.tiler import GridTiler



 files = os.listdir("E:\test")

 for f in files:

     name=f[:13]+'/'

     CRC_path=os.path.join("E:\svs",f)

     path=r"E:\cut"

     CRC_slide = Slide(CRC_path,processed_path=path)

     grid_tiles_extractor = GridTiler(

     tile_size=(256,256),level=4,

     check_tissue=True, # default

     pixel_overlap=0, # default 定义两个相邻平铺之间重叠像素数

     prefix=name,

     suffix=".png") # default

     grid_tiles_extractor.locate_tiles(

     slide=CRC_slide,

     scale_factor=64,

     alpha=64,

     outline="red",)

     grid_tiles_extractor.extract(CRC_slide)




    python


![](https://ad.itadn.com/c/weblog/blog-img/images/2025-07-12/IKc5WkJSO8HjB6Mv3yEGePAaY0f2.png)

 import json


 import openslide

 json_path=r"C:\Users\Desktop\example2\B2015_kfb\Annotations\1.json"

 json_path1=r"C:\Usersy\Desktop\example2\B2015_kfb\Annotations\1_labelme.json"

 slide= openslide.open_slide(r"C:\Users\Desktop\example2\B2015.svs") # BGR

 #print(slide.level_dimensions)



 with open(json_path,encoding="utf-8") as f:

     json_file = json.load(f)

     pic_dict={}

     pic_dict["version"]="4.2.10"

     pic_dict["imagePath"]=r"C:\Users\Desktop\example2\B2015.svs"

     pic_dict["imageHeight"]=slide.level_dimensions[0][1]

     pic_dict["imageWidth"]=slide.level_dimensions[0][0]

     pic_dict["flags"]={}

     pic_dict["imageData"]= ''

     shapes_list=[]



     for i in range(len(json_file)):#每个勾画形状

     shapes_inner_dict={}

     points_list0=json_file[i]['points']

     points_list=[]

     for j in range(len(points_list0)):

         list=[points_list0[j]['x'],points_list0[j]['y']]

         points_list.append(list)

     shapes_inner_dict["points"]=points_list

     shapes_inner_dict["shape_type"]="polygon"

     shapes_inner_dict["flags"]={}

     shapes_inner_dict["label"]=json_file[i]['name']

     shapes_inner_dict["group_id"]=json_file[i]['name']

     shapes_list.append(shapes_inner_dict)



     pic_dict["shapes"]=shapes_list



 with open(json_path1,'w',encoding='utf-8') as f:

     json.dump(pic_dict,f,ensure_ascii=False)




    python


![](https://ad.itadn.com/c/weblog/blog-img/images/2025-07-12/alcFQ24gzjviDkNhOSseU7dx1mqn.png)

 import xml.etree.ElementTree as ET  # xml解析包


 import os



 classes = ["ring_cell_cancer"]



 # 进行归一化操作

 def convert(size, box):  # size:(原图w,原图h) , box:(xmin,xmax,ymin,ymax)

     dw = 1. / size[0]  # 1/w

     dh = 1. / size[1]  # 1/h

     x = (box[0] + box[1]) / 2.0  # 物体在图中的中心点x坐标

     y = (box[2] + box[3]) / 2.0  # 物体在图中的中心点y坐标

     w = box[1] - box[0]  # 物体实际像素宽度

     h = box[3] - box[2]  # 物体实际像素高度

     x = x * dw  # 物体中心点x的坐标比(相当于 x/原图w)

     w = w * dw  # 物体宽度的宽度比(相当于 w/原图w)

     y = y * dh  # 物体中心点y的坐标比(相当于 y/原图h)

     h = h * dh  # 物体宽度的宽度比(相当于 h/原图h)

     return (x, y, w, h)  # 返回 相对于原图的物体中心点的x坐标比,y坐标比,宽度比,高度比,取值范围[0-1]





 def convert_annotation(root, image_id):

     """

     将对应文件名的xml文件转化为label文件，xml文件包含了对应的bunding框以及图片长宽大小等信息，

     通过对其解析，然后进行归一化最终读到label文件中去，也就是说

     一张图片文件对应一个xml文件，然后通过解析和归一化，能够将对应的信息保存到唯一一个label文件中去

     labal文件中的格式: calss x y w h，同时，一张图片对应的类别有多个，所以对应的buinding的信息也有多个

     """

     # 对应的通过year 找到相应的文件夹，并且打开相应image_id的xml文件，其对应bund文件

     in_file = open(root + "/%s.xml" %(image_id), encoding="utf-8")

     # 准备在对应的image_id 中写入对应的label，分别为

     # <object-class> <x> <y> <width> <height>

     out_file = open(root + "/%s.txt" %(image_id), "w", encoding="utf-8")

     # 解析xml文件

     tree = ET.parse(in_file)

     # 获得对应的键值对

     root = tree.getroot()

     # 获得图片的尺寸大小

     size = root.find("size")

     # 如果xml内的标记为空，增加判断条件

     if size != None:

     # 获得宽

     w = int(size.find("width").text)

     # 获得高

     h = int(size.find("height").text)

     # 遍历目标obj

     for obj in root.iter("object"):

         # 获得difficult

         if obj.find("difficult"):

             difficult = int(obj.find("difficult").text)

         else:

             difficult = 0

         # 获得类别 =string 类型

         cls = obj.find("name").text

         # 如果类别不是对应在我们预定好的class文件中，或difficult==1则跳过

         if cls not in classes or int(difficult) == 1:

             continue

         # 通过类别名称找到id

         cls_id = classes.index(cls)

         # 找到bndbox 对象

         xmlbox = obj.find("bndbox")

         # 获取对应的bndbox的数组 = ["xmin","xmax","ymin","ymax"]

         b = (float(xmlbox.find("xmin").text), float(xmlbox.find("xmax").text), float(xmlbox.find("ymin").text),

              float(xmlbox.find("ymax").text))

         print(image_id, cls, b)

         # 带入进行归一化操作

         # w = 宽, h = 高， b= bndbox的数组 = ["xmin","xmax","ymin","ymax"]

         bb = convert((w, h), b)

         # bb 对应的是归一化后的(x,y,w,h)

         # 生成 calss x y w h 在label文件中

         out_file.write(str(cls_id) + " " +

                        " ".join([str(a) for a in bb]) + "\n")





 if __name__ == "__main__":

     json_dir= r"C:\Users\Desktop\detect_example\cell\labelme"

     for dir_name in os.listdir(json_dir):

     # 开始解析xml文件的标注格式

     xml_path=os.path.join(json_dir, dir_name)

     convert_annotation(json_dir, image_id=dir_name[:-4])




    python


![](https://ad.itadn.com/c/weblog/blog-img/images/2025-07-12/9z2pQlN6Vx0obKn34LkFGMDhvwdr.png)

 import json


 import openslide

 def alter_json_equal_proportion(in_json_path,out_json_path,scale):

     '''

     in_json_path: json文件输入路径

     out_json_path: json文件保存路径

     scale: 图片缩放比例

     '''

     file_in = open(in_json_path, "r", encoding='utf-8')

     # json.load数据到变量json_data

     json_data = json.load(file_in)

     #根据缩放比例获得缩放后的高和宽

     height_raw= json_data["imageHeight"]

     width_raw =json_data["imageWidth"]

     # 缩放后分辨率

     resized_height =  height_raw * scale

     resized_width = width_raw * scale#!!!!!!!!!!!!!int

     # 修改json中的内容

     json_data["imageHeight"] = resized_height

     json_data["imageWidth"] = resized_width

     #更改具体点

     for LabelBox in json_data['shapes']:

     for point in LabelBox['points']:

         point[0] = point[0]*scale

         point[1] = point[1]*scale



     file_in.close()



     # 创建一个写文件

     file_out = open(out_json_path, "w", encoding='utf-8')

     # 将修改后的数据写入文件

     file_out.write(json.dumps(json_data,ensure_ascii=False))

     file_out.close()





 in_json_path=r"C:\Users\Desktop\example2\B2015\1_labelme.json"

 out_json_path=r"C:\Users\Desktop\example2\B2015\1_labelme_resize.json"

 scale=0.5

 alter_json_equal_proportion(in_json_path,out_json_path,scale)




    python


![](https://ad.itadn.com/c/weblog/blog-img/images/2025-07-12/Q9zC4dmGtVpro1a3wFMXvbBO02LD.png)

 name=['肿瘤区域','空白区域','坏死']


 color=[(139, 59, 47),(0, 139, 139),(0, 255, 0)]

 dic=dict(zip(name,color))



 import os

 import json

 from PIL import Image, ImageDraw



 def convert_to_tuple(points):

     return [tuple(p) for p in points]



 # 设置输入输出文件路径和文件格式

 json_file = r"C:\Users\Desktop\example2\B2015\1_labelme_resize.json"  # json文件

 mask_folder = r"C:\Users\Desktop\example2\B2015"  # 转化成mask保存到哪个目录

 img_format="png"



 if not os.path.exists(mask_folder):

     os.makedirs(mask_folder)



 # 遍历json文件夹中的所有json文件



 # 读取json文件中的信息

 # os.path.join(json_folder, json_file)得到每一个json文件的绝对地址，接着按照这个地址，json.load(f) 打开这个json文件

 with open(json_file, "r", encoding="utf-8") as f:

     data = json.load(f)



 #获取原图尺寸和标注信息

 img_width = int(data["imageWidth"])

 img_height = int(data["imageHeight"])

 shapes = data["shapes"]



 # 创建空白的二值图像,全黑的彩色图像

 mask = Image.new("RGB", (img_width, img_height), (0,0,0))  # 和标注图同等大小的全黑图片，彩色模式

 draw = ImageDraw.Draw(mask)  # 使用 PIL（Python Imaging Library）库的 ImageDraw 模块创建一个可绘制的对象 draw

 # 绘制标注信息

 for shape in shapes:  # 依次遍历一个json文件保存的多个标注信息

     points = shape["points"]  # 取出某一个标注信息的坐标

     points = convert_to_tuple(points)  # points 转换为一个元组的列表。元组不可改变其值

     label = shape["label"]  # 取出该标注的标签信息

     shape_type=shape["shape_type"]

     draw.polygon(points, fill=dic[label])





 # 保存标注图像

 mask_file = os.path.splitext(json_file)[0] + "." + img_format

 #mask=mask.convert('RGB')

 mask.save(os.path.join(mask_folder, mask_file))




    python


![](https://ad.itadn.com/c/weblog/blog-img/images/2025-07-12/rbyXcwsVkiQhF6qfZ420T38gIL7W.png)

 from PIL import ImageFile


 from PIL import Image, ImageDraw

 import os

 ImageFile.LOAD_TRUNCATED_IMAGES = True

 Image.MAX_IMAGE_PIXELS = None

 import numpy as np



 pic_path = r"C:\Users\Desktop\example2\B2015\1_labelme_resize.png" # 分割的图片的位置

 pic_target =r"C:\Users\Desktop\example2\B2015" # 分割后的图片保存的文件夹

 if not os.path.exists(pic_target):  #判断是否存在文件夹如果不存在则创建为文件夹

     os.makedirs(pic_target)

 #要分割后的尺寸

 cut_width = 512

 cut_length = 512

 # 读取要分割的图片，以及其尺寸等数据

 img = Image.open(pic_path)

 (width, length,depth) = (img.size[0],img.size[1],3)



 # 预处理生成0矩阵

 #pic = np.zeros((cut_width, cut_length, depth))



 # 计算可以划分的横纵的个数

 num_width = int(width / cut_width)#横着

 num_length = int(length / cut_length)#竖着





 # for循环迭代生成

 #一列一列竖着切

 for i in range(0,num_width):

     for j in range(0,num_length):

     box = (i * cut_width, j * cut_length, (i + 1) * cut_width, (j + 1) * cut_length)

     # Tips:box规矩是以图片左上角为(0,0),box=(左,上,右,下)的操作

     area = img.crop(box)

     result_path = pic_target + '\ '+'{}_{}.png'.format(i + 1, j + 1)

     #判断background占比

     area_array = np.array(area)

     black_pixels = np.sum(np.all(area_array == 0, axis=-1))

     percentage = black_pixels / (cut_width ** 2)

     if percentage < 0.4:

         area.save(result_path)





 print("done!!!")




    python


![](https://ad.itadn.com/c/weblog/blog-img/images/2025-07-12/z7REu5SKc8Tp3xkJjnPayhOFsZUA.png)

 def openslide_cut_patch(level,patch_size,save_dir):


     """

     根据给出的label，在以patch size大小的窗口遍历svs原图时对相应区域进行采样

     :param filename:包绝对路径的文件名

     :param label_result_dir:svs图片对应的标注结果存放目录，每个numpy数组大小等同于对应svs图片level下采样下的大小

     :param level:svs处理的下采样的级数

     :param patch_size:移动的视野大小，等同于保存图片的大小

     :param save_dir:图片保存的路径

     :return:

     """

     slide = openslide.OpenSlide(filename)

     level_downsamples = slide.level_downsamples[level]



     img_path = gb.glob("C:\ Users\ Desktop\ example2\ B2015\ cut\ *.png")



     for path in img_path:

     p=path.split('\ ')[-1]

     w=int(p.split('_')[0])-1

     p1=p.split('_')[1]

     h=int(p1.split('.')[0])-1

     patch = slide.read_region((w * patch_size, h * patch_size), 0, (patch_size, patch_size)).convert('RGB')

     patch.save(f'{save_dir}/{w}_{h}.png')



 import openslide

 import numpy as np

 import matplotlib.pyplot as plt

 import os

 import cv2# 读取图像

 import glob as gb



 filename=r"C:\Users\Desktop\example2\B2015.svs"

 level=0

 patch_size=1024

 save_dir=r"C:\Users\Desktop\example2\B2015\cut_raw"

 #label_result_dir=r"C:\Users\Desktop\example2\cut"

 openslide_cut_patch(level,patch_size,save_dir)




    python


![](https://ad.itadn.com/c/weblog/blog-img/images/2025-07-12/Zoa8ke5mC1VUyljhzJ3wMKbifSNd.png)

 import openslide


 import numpy as np

 import matplotlib.pyplot as plt

 import os

 import cv2# 读取图像

 import json

 import sys

 import Image

 from skimage import measure



 txt_dir=r"C:\Users\Desktop\detect_example\newmask\txt"



 img_path=r"C:\Users\Desktop\detect_example\mask\B2016\cancer&surrounding_interstitial_reactions\16_5.png"



 pic=img_path.split('\ ')[-3]

 type=img_path.split('\ ')[-2]

 mask=img_path.split('\ ')[-1][:-4]

 h=mask.split('_')[0]

 w=mask.split('_')[1]

 num=name_list1.index(type)

 txt_name=pic+'_'+mask

 txt_path=os.path.join(txt_dir,txt_name+'.txt')



 img = cv2.imread(img_path)

 gray = cv2.cvtColor(img, cv.COLOR_BGR2GRAY)

 ret, thresh = cv2.threshold(gray, 128, 255, cv.THRESH_BINARY)

 contours, heriachy = cv2.findContours(thresh,cv2.RETR_LIST,cv2.CHAIN_APPROX_NONE)

 #contours=measure.find_contours(thresh, 0.5)

 l=[]

 for i, contour in enumerate(contours):

     s=f'{num} '

     contour=np.squeeze(contour)

     x=[contour[i][0] for i in range(len(contour))]

     y=[contour[i][1] for i in range(len(contour))]

     x_min =min(x)

     x_max =max(x)

     y_min = min(y)

     y_max =max(y)

     width=x_max-x_min

     height=y_max-y_min

     x_center=x_min+width/2

     y_center=y_min+height/2

     s=s+f'{x_center/512} {y_center/512} {width/512} {height/512}\n'

     # 打开文件，并以写入模式打开

     with open(txt_path, "a",encoding='utf-8') as file:

     # 将字符串写入文件中

     file.write(s)




    python


![](https://ad.itadn.com/c/weblog/blog-img/images/2025-07-12/0qe49QvyrjI7WUS5K8RkECFP2wAN.png)

 from PIL import Image


 import os



 def jpeg2jpg(path_in, path_out):

     img = Image.open(path_in)

     img.save(path_out, "JPEG", quality=80, optimize=True, progressive=True)





 test_dir = r"C:\Users\Desktop\detect_example\cell\image_jpeg"#.jpeg图片所在文件夹

 out_dir =r"C:\Users\Desktop\detect_example\cell\image_jpg"#转化成.jpg图片所在文件夹

 jpg = ".jpg"

 jpeg = ".jpeg"



 pics = os.listdir(test_dir)



 for img in pics:

     im=os.path.splitext(img)[0]

     source = test_dir+'\ '+im+jpeg

     target = out_dir+'\ '+im+jpg

     jpeg2jpg(source, target)




    python


![](https://ad.itadn.com/c/weblog/blog-img/images/2025-07-12/Hi1bt3z6hN48mOg7KxpqP9nZEIdS.png)

 from PIL import Image


 import os



 # 设置输入文件夹路径和目标格式

 input_folder =r"C:\Users\Desktop\detect_example\cell\image_jpg"

 target_format = "png"



 # 循环遍历输入文件夹中的所有文件

 for filename in os.listdir(input_folder):

     # 检查文件是否为jpg格式

     if filename.endswith('.jpg'):

     # 组合新的文件名和路径

     img_path_jpg = os.path.join(input_folder, filename)

     img_path_png = os.path.splitext(img_path_jpg)[0] + '.' + target_format



     # 读取JPG格式图片并保存为PNG格式

     with Image.open(img_path_jpg) as img:

         img.save(img_path_png)



     # 删除原始JPG格式图片

     #os.remove(img_path_jpg)




    python


![](https://ad.itadn.com/c/weblog/blog-img/images/2025-07-12/GBcKWnCzdDqMtAHVQJi5xF8vmYf2.png)
