ESP32学习笔记十六之空中升级Over The Air Updates(OTA)

 cp -r $IDF_PATH/examples/get-started/hello_world .


 cd hello_world/build/

  mkdir get

  cd get/

 cp ~/esp/hello_world/build/hello-world.bin .

  cd ..

 python -m SimpleHTTPServer 8070




    AI写代码

 #include <string.h>


 #include <sys/socket.h>

 #include <netdb.h>



 #include "freertos/FreeRTOS.h"

 #include "freertos/task.h"

 #include "freertos/event_groups.h"



 #include "esp_system.h"

 #include "esp_wifi.h"

 #include "esp_event_loop.h"

 #include "esp_log.h"

 #include "esp_ota_ops.h"



 #include "nvs.h"

 #include "nvs_flash.h"



 //配置信息

 #define EXAMPLE_WIFI_SSID  "xxxxxxxx"

 #define EXAMPLE_WIFI_PASS  "xxxxxxxx"

     #define EXAMPLE_SERVER_IP   "192.168.43.67"

 #define EXAMPLE_SERVER_PORT "8070"

 #define EXAMPLE_FILENAME "/hello-world.bin"

 //数据包长度

 #define BUFFSIZE 1024

 #define TEXT_BUFFSIZE 1024



 static const char *TAG = "ota";

 //OTA数据

 static char ota_write_data[BUFFSIZE + 1] = { 0 };

 //接收数据

 static char text[BUFFSIZE + 1] = { 0 };

 //镜像大小

 static int binary_file_length = 0;

 //socket句柄

 static int socket_id = -1;



 //wifi连接ok事件

 static EventGroupHandle_t wifi_event_group;

 const int CONNECTED_BIT = BIT0;



 /*wifi状态机事件*/

 static esp_err_t event_handler(void *ctx, system_event_t *event)

 {

     switch (event->event_id) {

     case SYSTEM_EVENT_STA_START://开始连接

     ESP_LOGI(TAG, "SYSTEM_EVENT_STA_START");

     esp_wifi_connect();

     break;

     case SYSTEM_EVENT_STA_GOT_IP://连上

     ESP_LOGI(TAG, "SYSTEM_EVENT_STA_GOT_IP");

     xEventGroupSetBits(wifi_event_group, CONNECTED_BIT);//启动http

     break;

     case SYSTEM_EVENT_STA_DISCONNECTED://断开

     //重连并重启http

         ESP_LOGI(TAG, "SYSTEM_EVENT_STA_DISCONNECTED");

     esp_wifi_connect();

     xEventGroupClearBits(wifi_event_group, CONNECTED_BIT);

     break;

     default:

     break;

     }

     return ESP_OK;

 }

 /*wifi初始化*/

 static void initialise_wifi(void)

 {

     tcpip_adapter_init();

     wifi_event_group = xEventGroupCreate();

     ESP_ERROR_CHECK( esp_event_loop_init(event_handler, NULL) );

     wifi_init_config_t cfg = WIFI_INIT_CONFIG_DEFAULT();

     ESP_ERROR_CHECK( esp_wifi_init(&cfg) );

     ESP_ERROR_CHECK( esp_wifi_set_storage(WIFI_STORAGE_RAM) );

     wifi_config_t wifi_config = {

     .sta = {

         .ssid = EXAMPLE_WIFI_SSID,

         .password = EXAMPLE_WIFI_PASS,

     },

     };

     ESP_LOGI(TAG, "Setting WiFi configuration SSID %s...", wifi_config.sta.ssid);

     ESP_ERROR_CHECK( esp_wifi_set_mode(WIFI_MODE_STA) );

     ESP_ERROR_CHECK( esp_wifi_set_config(ESP_IF_WIFI_STA, &wifi_config) );

     ESP_ERROR_CHECK( esp_wifi_start() );

 }



 /*read buffer by byte still delim ,return read bytes counts*/

 static int read_until(char *buffer, char delim, int len)

 {

     int i = 0;

     while (buffer[i] != delim && i < len) {

     ++i;

     }

     return i + 1;

 }



 /* resolve a packet from http socket

  * return true if packet including \r\n\r\n that means http packet header finished,start to receive packet body

  * otherwise return false

  * */

 static bool read_past_http_header(char text[], int total_len, esp_ota_handle_t update_handle)

 {

     /* i means current position */

     int i = 0, i_read_len = 0;

     while (text[i] != 0 && i < total_len) {

     i_read_len = read_until(&text[i], '\n', total_len);

     // if we resolve \r\n line,we think packet header is finished

     if (i_read_len == 2) {

         int i_write_len = total_len - (i + 2);

         memset(ota_write_data, 0, BUFFSIZE);

         /*copy first http packet body to write buffer*/

         memcpy(ota_write_data, &(text[i + 2]), i_write_len);



         esp_err_t err = esp_ota_write( update_handle, (const void *)ota_write_data, i_write_len);

         if (err != ESP_OK) {

             ESP_LOGE(TAG, "Error: esp_ota_write failed! err=0x%x", err);

             return false;

         } else {

             ESP_LOGI(TAG, "esp_ota_write header OK");

             binary_file_length += i_write_len;

         }

         return true;

     }

     i += i_read_len;

     }

     return false;

 }



 static bool connect_to_http_server()

 {

     ESP_LOGI(TAG, "Server IP: %s Server Port:%s", EXAMPLE_SERVER_IP, EXAMPLE_SERVER_PORT);



     int  http_connect_flag = -1;

     struct sockaddr_in sock_info;

     //新建socket

     socket_id = socket(AF_INET, SOCK_STREAM, 0);

     if (socket_id == -1) {

     ESP_LOGE(TAG, "Create socket failed!");

     return false;

     }



     //设置连接参数

     memset(&sock_info, 0, sizeof(struct sockaddr_in));

     sock_info.sin_family = AF_INET;

     sock_info.sin_addr.s_addr = inet_addr(EXAMPLE_SERVER_IP);

     sock_info.sin_port = htons(atoi(EXAMPLE_SERVER_PORT));



     //连http服务器

     http_connect_flag = connect(socket_id, (struct sockaddr *)&sock_info, sizeof(sock_info));

     if (http_connect_flag == -1) {

     ESP_LOGE(TAG, "Connect to server failed! errno=%d", errno);

     close(socket_id);

     return false;

     } else {

     ESP_LOGI(TAG, "Connected to server");

     return true;

     }

     return false;

 }

 //异常处理，连接http服务器失败等异常

 static void __attribute__((noreturn)) task_fatal_error()

 {

     ESP_LOGE(TAG, "Exiting task due to fatal error...");

     close(socket_id);

     (void)vTaskDelete(NULL);



     while (1) {

     ;

     }

 }

 //OTA任务

 static void ota_example_task(void *pvParameter)

 {

     esp_err_t err;

     /* update handle : set by esp_ota_begin(), must be freed via esp_ota_end() */

     esp_ota_handle_t update_handle = 0 ;

     const esp_partition_t *update_partition = NULL;



     ESP_LOGI(TAG, "Starting OTA example...");

     //获取当前boot位置

     const esp_partition_t *configured = esp_ota_get_boot_partition();

     //获取当前系统执行的固件所在的Flash分区

     const esp_partition_t *running = esp_ota_get_running_partition();



     if (configured != running) {

     ESP_LOGW(TAG, "Configured OTA boot partition at offset 0x%08x, but running from offset 0x%08x",

              configured->address, running->address);

     ESP_LOGW(TAG, "(This can happen if either the OTA boot data or preferred boot image become corrupted somehow.)");

     }

     ESP_LOGI(TAG, "Running partition type %d subtype %d (offset 0x%08x)",

          running->type, running->subtype, running->address);



     //等待wifi连上后进行OTA，项目中可以使升级命令进入OTA

     xEventGroupWaitBits(wifi_event_group, CONNECTED_BIT,

                     false, true, portMAX_DELAY);

     ESP_LOGI(TAG, "Connect to Wifi ! Start to Connect to Server....");



     //连http服务器

     if (connect_to_http_server()) {

     ESP_LOGI(TAG, "Connected to http server");

     } else {

     ESP_LOGE(TAG, "Connect to http server failed!");

     task_fatal_error();

     }



     //组http包发送

     const char *GET_FORMAT =

     "GET %s HTTP/1.0\r\n"

     "Host: %s:%s\r\n"

     "User-Agent: esp-idf/1.0 esp32\r\n\r\n";



     char *http_request = NULL;

     int get_len = asprintf(&http_request, GET_FORMAT, EXAMPLE_FILENAME, EXAMPLE_SERVER_IP, EXAMPLE_SERVER_PORT);

     if (get_len < 0) {

     ESP_LOGE(TAG, "Failed to allocate memory for GET request buffer");

     task_fatal_error();

     }

     int res = send(socket_id, http_request, get_len, 0);

     free(http_request);

     if (res < 0) {

     ESP_LOGE(TAG, "Send GET request to server failed");

     task_fatal_error();

     } else {

     ESP_LOGI(TAG, "Send GET request to server succeeded");

     }

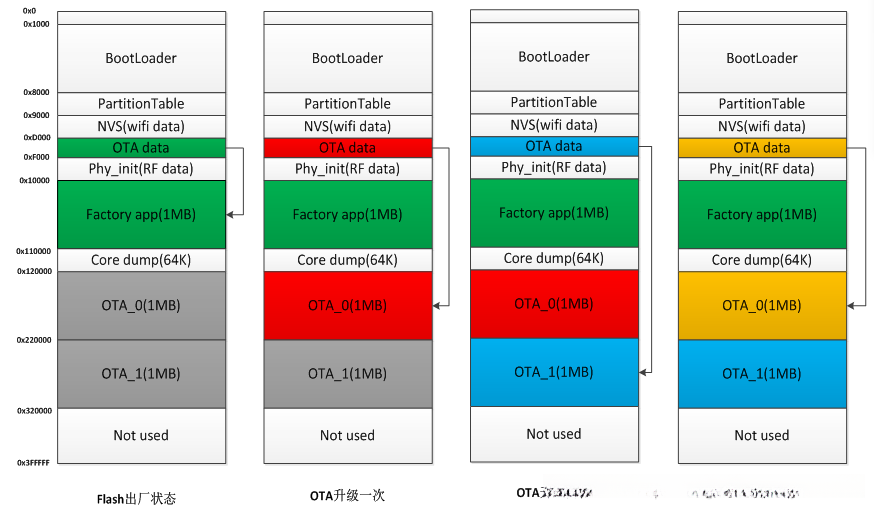

     //获取当前系统下一个（紧邻当前使用的OTA_X分区）可用于烧录升级固件的Flash分区

     update_partition = esp_ota_get_next_update_partition(NULL);

     ESP_LOGI(TAG, "Writing to partition subtype %d at offset 0x%x",

          update_partition->subtype, update_partition->address);

     assert(update_partition != NULL);

     //OTA写开始

     err = esp_ota_begin(update_partition, OTA_SIZE_UNKNOWN, &update_handle);

     if (err != ESP_OK) {

     ESP_LOGE(TAG, "esp_ota_begin failed, error=%d", err);

     task_fatal_error();

     }

     ESP_LOGI(TAG, "esp_ota_begin succeeded");



     bool resp_body_start = false, flag = true;

     //接收完成

     while (flag) {

     memset(text, 0, TEXT_BUFFSIZE);

     memset(ota_write_data, 0, BUFFSIZE);

     //接收http包

     int buff_len = recv(socket_id, text, TEXT_BUFFSIZE, 0);

     if (buff_len < 0) { //包异常

         ESP_LOGE(TAG, "Error: receive data error! errno=%d", errno);

         task_fatal_error();

     } else if (buff_len > 0 && !resp_body_start) { //包头

         memcpy(ota_write_data, text, buff_len);

         resp_body_start = read_past_http_header(text, buff_len, update_handle);

     } else if (buff_len > 0 && resp_body_start) { //数据段包

         memcpy(ota_write_data, text, buff_len);

         //写flash

         err = esp_ota_write( update_handle, (const void *)ota_write_data, buff_len);

         if (err != ESP_OK) {

             ESP_LOGE(TAG, "Error: esp_ota_write failed! err=0x%x", err);

             task_fatal_error();

         }

         binary_file_length += buff_len;

         ESP_LOGI(TAG, "Have written image length %d", binary_file_length);

     } else if (buff_len == 0) {  //结束包

         flag = false;

         ESP_LOGI(TAG, "Connection closed, all packets received");

         close(socket_id);

     } else {//未知错误

         ESP_LOGE(TAG, "Unexpected recv result");

     }

     }



     ESP_LOGI(TAG, "Total Write binary data length : %d", binary_file_length);

     //OTA写结束

     if (esp_ota_end(update_handle) != ESP_OK) {

     ESP_LOGE(TAG, "esp_ota_end failed!");

     task_fatal_error();

     }

     //升级完成更新OTA data区数据，重启时根据OTA data区数据到Flash分区加载执行目标（新）固件

     err = esp_ota_set_boot_partition(update_partition);

     if (err != ESP_OK) {

     ESP_LOGE(TAG, "esp_ota_set_boot_partition failed! err=0x%x", err);

     task_fatal_error();

     }

     ESP_LOGI(TAG, "Prepare to restart system!");

     esp_restart();

     return ;

 }



 void app_main()

 {

     // Initialize NVS.

     esp_err_t err = nvs_flash_init();

     if (err == ESP_ERR_NVS_NO_FREE_PAGES) {

     // OTA app partition table has a smaller NVS partition size than the non-OTA

     // partition table. This size mismatch may cause NVS initialization to fail.

     // If this happens, we erase NVS partition and initialize NVS again.

     ESP_ERROR_CHECK(nvs_flash_erase());

     err = nvs_flash_init();

     }

     ESP_ERROR_CHECK( err );

     //wifi初始化

     initialise_wifi();

     //开启http任务，内部等wifi连上后进行http交互

     xTaskCreate(&ota_example_task, "ota_example_task", 8192, NULL, 5, NULL);

 }




    AI写代码

 #include <WiFi.h>


 #include <ESPmDNS.h>

 #include <WiFiUdp.h>

 #include <ArduinoOTA.h>



 const char* ssid = "..........";

 const char* password = "..........";



 void setup() {

   Serial.begin(115200);

   Serial.println("Booting");

   WiFi.mode(WIFI_STA);

   WiFi.begin(ssid, password);

   while (WiFi.waitForConnectResult() != WL_CONNECTED) {

     Serial.println("Connection Failed! Rebooting...");

     delay(5000);

     ESP.restart();

   }



   // Port defaults to 3232

   // ArduinoOTA.setPort(3232);



   // Hostname defaults to esp3232-[MAC]

   // ArduinoOTA.setHostname("myesp32");



   // No authentication by default

   // ArduinoOTA.setPassword("admin");



   // Password can be set with it's md5 value as well

   // MD5(admin) = 21232f297a57a5a743894a0e4a801fc3

   // ArduinoOTA.setPasswordHash("21232f297a57a5a743894a0e4a801fc3");



   ArduinoOTA

     .onStart([]() {

       String type;

       if (ArduinoOTA.getCommand() == U_FLASH)

     type = "sketch";

       else // U_SPIFFS

     type = "filesystem";



       // NOTE: if updating SPIFFS this would be the place to unmount SPIFFS using SPIFFS.end()

       Serial.println("Start updating " + type);

     })

     .onEnd([]() {

       Serial.println("\nEnd");

     })

     .onProgress([](unsigned int progress, unsigned int total) {

       Serial.printf("Progress: %u%%\r", (progress / (total / 100)));

     })

     .onError([](ota_error_t error) {

       Serial.printf("Error[%u]: ", error);

       if (error == OTA_AUTH_ERROR) Serial.println("Auth Failed");

       else if (error == OTA_BEGIN_ERROR) Serial.println("Begin Failed");

       else if (error == OTA_CONNECT_ERROR) Serial.println("Connect Failed");

       else if (error == OTA_RECEIVE_ERROR) Serial.println("Receive Failed");

       else if (error == OTA_END_ERROR) Serial.println("End Failed");

     });



   ArduinoOTA.begin();



   Serial.println("Ready");

   Serial.print("IP address: ");

   Serial.println(WiFi.localIP());

 }



 void loop() {

   ArduinoOTA.handle();

 }




    AI写代码

 #include <WiFi.h>


 #include <WiFiClient.h>

 #include <WebServer.h>

 #include <ESPmDNS.h>

 #include <Update.h>



 const char* host = "esp32";

 const char* ssid = "xxx";

 const char* password = "xxxx";



 WebServer server(80);



 /* * Login page

  */



 const char* loginIndex =

  "<form name='loginForm'>"

     "<table width='20%' bgcolor='A09F9F' align='center'>"

     "<tr>"

         "<td colspan=2>"

             "<center><font size=4><b>ESP32 Login Page</b></font></center>"

             "<br>"

         "</td>"

         "<br>"

         "<br>"

     "</tr>"

     "<td>Username:</td>"

     "<td><input type='text' size=25 name='userid'><br></td>"

     "</tr>"

     "<br>"

     "<br>"

     "<tr>"

         "<td>Password:</td>"

         "<td><input type='Password' size=25 name='pwd'><br></td>"

         "<br>"

         "<br>"

     "</tr>"

     "<tr>"

         "<td><input type='submit' οnclick='check(this.form)' value='Login'></td>"

     "</tr>"

     "</table>"

 "</form>"

 "<script>"

     "function check(form)"

     "{"

     "if(form.userid.value=='admin' && form.pwd.value=='admin')"

     "{"

     "window.open('/serverIndex')"

     "}"

     "else"

     "{"

     " alert('Error Password or Username')/*displays error message*/"

     "}"

     "}"

 "</script>";



 /* * Server Index Page

  */



 const char* serverIndex =

 "<script src='https://ajax.googleapis.com/ajax/libs/jquery/3.2.1/jquery.min.js'></script>"

 "<form method='POST' action='#' enctype='multipart/form-data' id='upload_form'>"

    "<input type='file' name='update'>"

     "<input type='submit' value='Update'>"

     "</form>"

  "<div id='prg'>progress: 0%</div>"

  "<script>"

   "$('form').submit(function(e){"

   "e.preventDefault();"

   "var form = $('#upload_form')[0];"

   "var data = new FormData(form);"

   " $.ajax({"

   "url: '/update',"

   "type: 'POST',"

   "data: data,"

   "contentType: false,"

   "processData:false,"

   "xhr: function() {"

   "var xhr = new window.XMLHttpRequest();"

   "xhr.upload.addEventListener('progress', function(evt) {"

   "if (evt.lengthComputable) {"

   "var per = evt.loaded / evt.total;"

   "$('#prg').html('progress: ' + Math.round(per*100) + '%');"

   "}"

   "}, false);"

   "return xhr;"

   "},"

   "success:function(d, s) {"

   "console.log('success!')"

  "},"

  "error: function (a, b, c) {"

  "}"

  "});"

  "});"

  "</script>";



 /* * setup function

  */

 void setup(void) {

   Serial.begin(115200);



   // Connect to WiFi network

   WiFi.begin(ssid, password);

   Serial.println("");



   // Wait for connection

   while (WiFi.status() != WL_CONNECTED) {

     delay(500);

     Serial.print(".");

   }

   Serial.println("");

   Serial.print("Connected to ");

   Serial.println(ssid);

   Serial.print("IP address: ");

   Serial.println(WiFi.localIP());



   /*use mdns for host name resolution*/

   if (!MDNS.begin(host)) { //http://esp32.local

     Serial.println("Error setting up MDNS responder!");

     while (1) {

       delay(1000);

     }

   }

   Serial.println("mDNS responder started");

   /*return index page which is stored in serverIndex */

   server.on("/", HTTP_GET, []() {

     server.sendHeader("Connection", "close");

     server.send(200, "text/html", loginIndex);

   });

   server.on("/serverIndex", HTTP_GET, []() {

     server.sendHeader("Connection", "close");

     server.send(200, "text/html", serverIndex);

   });

   /*handling uploading firmware file */

   server.on("/update", HTTP_POST, []() {

     server.sendHeader("Connection", "close");

     server.send(200, "text/plain", (Update.hasError()) ? "FAIL" : "OK");

     ESP.restart();

   }, []() {

     HTTPUpload& upload = server.upload();

     if (upload.status == UPLOAD_FILE_START) {

       Serial.printf("Update: %s\n", upload.filename.c_str());

       if (!Update.begin(UPDATE_SIZE_UNKNOWN)) { //start with max available size

     Update.printError(Serial);

       }

     } else if (upload.status == UPLOAD_FILE_WRITE) {

       /* flashing firmware to ESP*/

       if (Update.write(upload.buf, upload.currentSize) != upload.currentSize) {

     Update.printError(Serial);

       }

     } else if (upload.status == UPLOAD_FILE_END) {

       if (Update.end(true)) { //true to set the size to the current progress

     Serial.printf("Update Success: %u\nRebooting...\n", upload.totalSize);

       } else {

     Update.printError(Serial);

       }

     }

   });

   server.begin();

 }



 void loop(void) {

   server.handleClient();

   delay(1);

 }




    AI写代码

 /**


    AWS S3 OTA Update

    Date: 14th June 2017

    Author: Arvind Ravulavaru <https://github.com/arvindr21>

    Purpose: Perform an OTA update from a bin located in Amazon S3 (HTTP Only)



    Upload:

    Step 1 : Download the sample bin file from the examples folder

    Step 2 : Upload it to your Amazon S3 account, in a bucket of your choice

    Step 3 : Once uploaded, inside S3, select the bin file >> More (button on top of the file list) >> Make Public

    Step 4 : You S3 URL => http://bucket-name.s3.ap-south-1.amazonaws.com/sketch-name.ino.bin

    Step 5 : Build the above URL and fire it either in your browser or curl it `curl -I -v http://bucket-name.ap-south-1.amazonaws.com/sketch-name.ino.bin` to validate the same

    Step 6:  Plug in your SSID, Password, S3 Host and Bin file below



    Build & upload

    Step 1 : Menu > Sketch > Export Compiled Library. The bin file will be saved in the sketch folder (Menu > Sketch > Show Sketch folder)

    Step 2 : Upload bin to S3 and continue the above process



    // Check the bottom of this sketch for sample serial monitor log, during and after successful OTA Update

 */



 #include <WiFi.h>

 #include <Update.h>



 WiFiClient client;



 // Variables to validate

 // response from S3

 int contentLength = 0;

 bool isValidContentType = false;



 // Your SSID and PSWD that the chip needs

 // to connect to

 const char* SSID = "YOUR-SSID";

 const char* PSWD = "YOUR-SSID-PSWD";



 // S3 Bucket Config

 String host = "bucket-name.s3.ap-south-1.amazonaws.com"; // Host => bucket-name.s3.region.amazonaws.com

 int port = 80; // Non https. For HTTPS 443. As of today, HTTPS doesn't work.

 String bin = "/sketch-name.ino.bin"; // bin file name with a slash in front.



 // Utility to extract header value from headers

 String getHeaderValue(String header, String headerName) {

   return header.substring(strlen(headerName.c_str()));

 }



 // OTA Logic

 void execOTA() {

   Serial.println("Connecting to: " + String(host));

   // Connect to S3

   if (client.connect(host.c_str(), port)) {

     // Connection Succeed.

     // Fecthing the bin

     Serial.println("Fetching Bin: " + String(bin));



     // Get the contents of the bin file

     client.print(String("GET ") + bin + " HTTP/1.1\r\n" +

              "Host: " + host + "\r\n" +

              "Cache-Control: no-cache\r\n" +

              "Connection: close\r\n\r\n");



     // Check what is being sent

     //    Serial.print(String("GET ") + bin + " HTTP/1.1\r\n" +

     //                 "Host: " + host + "\r\n" +

     //                 "Cache-Control: no-cache\r\n" +

     //                 "Connection: close\r\n\r\n");



     unsigned long timeout = millis();

     while (client.available() == 0) {

       if (millis() - timeout > 5000) {

     Serial.println("Client Timeout !");

     client.stop();

     return;

       }

     }

     // Once the response is available,

     // check stuff



     /*

    Response Structure

     HTTP/1.1 200 OK

     x-amz-id-2: NVKxnU1aIQMmpGKhSwpCBh8y2JPbak18QLIfE+OiUDOos+7UftZKjtCFqrwsGOZRN5Zee0jpTd0=

     x-amz-request-id: 2D56B47560B764EC

     Date: Wed, 14 Jun 2017 03:33:59 GMT

     Last-Modified: Fri, 02 Jun 2017 14:50:11 GMT

     ETag: "d2afebbaaebc38cd669ce36727152af9"

     Accept-Ranges: bytes

     Content-Type: application/octet-stream

     Content-Length: 357280

     Server: AmazonS3



     {{BIN FILE CONTENTS}}



     */

     while (client.available()) {

       // read line till /n

       String line = client.readStringUntil('\n');

       // remove space, to check if the line is end of headers

       line.trim();



       // if the the line is empty,

       // this is end of headers

       // break the while and feed the

       // remaining `client` to the

       // Update.writeStream();

       if (!line.length()) {

     //headers ended

     break; // and get the OTA started

       }



       // Check if the HTTP Response is 200

       // else break and Exit Update

       if (line.startsWith("HTTP/1.1")) {

     if (line.indexOf("200") < 0) {

       Serial.println("Got a non 200 status code from server. Exiting OTA Update.");

       break;

     }

       }

       // extract headers here

       // Start with content length

       if (line.startsWith("Content-Length: ")) {

     contentLength = atoi((getHeaderValue(line, "Content-Length: ")).c_str());

     Serial.println("Got " + String(contentLength) + " bytes from server");

       }

       // Next, the content type

       if (line.startsWith("Content-Type: ")) {

     String contentType = getHeaderValue(line, "Content-Type: ");

     Serial.println("Got " + contentType + " payload.");

     if (contentType == "application/octet-stream") {

       isValidContentType = true;

     }

       }

     }

   } else {

     // Connect to S3 failed

     // May be try?

     // Probably a choppy network?

     Serial.println("Connection to " + String(host) + " failed. Please check your setup");

     // retry??

     // execOTA();

   }

   // Check what is the contentLength and if content type is `application/octet-stream`

   Serial.println("contentLength : " + String(contentLength) + ", isValidContentType : " + String(isValidContentType));

   // check contentLength and content type

   if (contentLength && isValidContentType) {

     // Check if there is enough to OTA Update

     bool canBegin = Update.begin(contentLength);

     // If yes, begin

     if (canBegin) {

       Serial.println("Begin OTA. This may take 2 - 5 mins to complete. Things might be quite for a while.. Patience!");

       // No activity would appear on the Serial monitor

       // So be patient. This may take 2 - 5mins to complete

       size_t written = Update.writeStream(client);

       if (written == contentLength) {

     Serial.println("Written : " + String(written) + " successfully");

       } else {

     Serial.println("Written only : " + String(written) + "/" + String(contentLength) + ". Retry?" );

     // retry??

     // execOTA();

       }

       if (Update.end()) {

     Serial.println("OTA done!");

     if (Update.isFinished()) {

       Serial.println("Update successfully completed. Rebooting.");

       ESP.restart();

     } else {

       Serial.println("Update not finished? Something went wrong!");

     }

       } else {

     Serial.println("Error Occurred. Error #: " + String(Update.getError()));

       }

     } else {

       // not enough space to begin OTA

       // Understand the partitions and

       // space availability

       Serial.println("Not enough space to begin OTA");

       client.flush();

     }

   } else {

     Serial.println("There was no content in the response");

     client.flush();

   }

 }

 void setup() {

   //Begin Serial

   Serial.begin(115200);

   delay(10);

   Serial.println("Connecting to " + String(SSID));

   // Connect to provided SSID and PSWD

   WiFi.begin(SSID, PSWD);

   // Wait for connection to establish

   while (WiFi.status() != WL_CONNECTED) {

     Serial.print("."); // Keep the serial monitor lit!

     delay(500);

   }

   // Connection Succeed

   Serial.println("");

   Serial.println("Connected to " + String(SSID));

   // Execute OTA Update

   execOTA();

 }

 void loop() {

   // chill

 }

 /* * Serial Monitor log for this sketch

  * * If the OTA succeeded, it would load the preference sketch, with a small modification. i.e.

  * Print `OTA Update succeeded!! This is an example sketch : Preferences > StartCounter`

  * And then keeps on restarting every 10 seconds, updating the preferences

  * *

       rst:0x10 (RTCWDT_RTC_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT)

       configsip: 0, SPIWP:0x00

       clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00

       mode:DIO, clock div:1

       load:0x3fff0008,len:8

       load:0x3fff0010,len:160

       load:0x40078000,len:10632

       load:0x40080000,len:252

       entry 0x40080034

       Connecting to SSID

       ......

       Connected to SSID

       Connecting to: bucket-name.s3.ap-south-1.amazonaws.com

       Fetching Bin: /StartCounter.ino.bin

       Got application/octet-stream payload.

       Got 357280 bytes from server

       contentLength : 357280, isValidContentType : 1

       Begin OTA. This may take 2 - 5 mins to complete. Things might be quite for a while.. Patience!

       Written : 357280 successfully

       OTA done!

       Update successfully completed. Rebooting.

       ets Jun  8 2016 00:22:57



       rst:0x10 (RTCWDT_RTC_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT)

       configsip: 0, SPIWP:0x00

       clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00

       mode:DIO, clock div:1

       load:0x3fff0008,len:8

       load:0x3fff0010,len:160

       load:0x40078000,len:10632

       load:0x40080000,len:252

       entry 0x40080034



       OTA Update succeeded!! This is an example sketch : Preferences > StartCounter

       Current counter value: 1

       Restarting in 10 seconds...

       E (102534) wifi: esp_wifi_stop 802 wifi is not init

       ets Jun  8 2016 00:22:57



       rst:0x10 (RTCWDT_RTC_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT)

       configsip: 0, SPIWP:0x00

       clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00

       mode:DIO, clock div:1

       load:0x3fff0008,len:8

       load:0x3fff0010,len:160

       load:0x40078000,len:10632

       load:0x40080000,len:252

       entry 0x40080034



       OTA Update succeeded!! This is an example sketch : Preferences > StartCounter

       Current counter value: 2

       Restarting in 10 seconds...



       ....

  * */




    AI写代码
