ospf+vlan实验
分析：

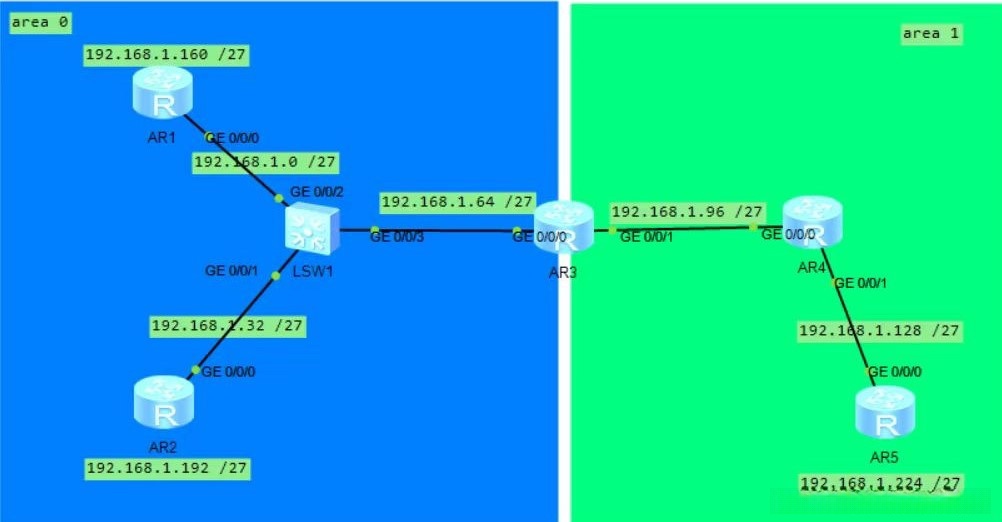

1 .划分IP段
2. ospf划分区域，进行手工配置
3 .ospf 密文认证 MD5加密
4.配置环回地址，使用缺省路由对R5接口不能宣告
r1配置：
[r1]interface g0/0/0
[r1-GigabitEthernet0/0/0]ip address 192.168.1.1 27
[r1]interface LoopBack 0
[r1-LoopBack0]ip address 192.168.1.161 32
//开启ospf
[r1]ospf 1 router-id 1.1.1.1
[r1-ospf-1]area 0
[r1-ospf-1-area-0.0.0.0]network 192.168.1.1 0.0.0.0
[r1]interface G0/0/0
//修改dr
[r1-GigabitEthernet0/0/0]ospf dr-priority 10
r2配置：
[R2]interface G0/0/0
[R2-GigabitEthernet0/0/0]IP address 192.168.1.33 27
[R2]interface LoopBack 0
[R2-LoopBack0]ip address 192.168.1.193 32
//开启osp f
[R2]ospf 1 router-id 2.2.2.2
[R2-ospf-1]area 0
[R2-ospf-1-area-0.0.0.0]network 192.168.1.33 0.0.0.0
[R2]interface g0/00/0
//更改优先级
[R2-GigabitEthernet0/0/0]ospf dr-priority 9
r3配置：
[r3]interface g0/0/0
[r3-GigabitEthernet0/0/0]ip address 192.168.1.65 27
[r3]interface g0/0/01
[r3-GigabitEthernet0/0/1]ip address 192.168.1.97 27
//开启ospf
[r3]ospf 1 router-id 3.3.3.3
[r3-ospf-1]area 0
[r3-ospf-1-area-0.0.0.0]network 192.168.1.65 0.0.0.0
[r3]ospf 1 router-id 3.3.3.3
[r3-ospf-1]area 1
[r3-ospf-1-area-0.0.0.1]network 192.168.1.97 0.0.0.0
// 密文认证
[r3-GigabitEthernet0/0/0]ospf authentication-mode md5 1 cipher 123456
r4配置：
[r4]interface g0/0/0
[r4-GigabitEthernet0/0/0]ip address 192.168.1.98 27
[r4]interface g0/0/1
[r4-GigabitEthernet0/0/1]ip address 192.168.1.129 27
//开放ospf
[r4]ospf 1 router-id 4.4.4.4
[r4-ospf-1]area 1
[r4-ospf-1-area-0.0.0.1]network 192.168.1.98 0.0.0.0
[r4-ospf-1-area-0.0.0.1]network 192.168.1.129 0.0.0.0
// 密文认证
[r4-GigabitEthernet0/0/0]ospf authentication-mode md5 1 cipher 123456
[r4-GigabitEthernet0/0/1]ospf authentication-mode md5 1 cipher 123456
r5配置：
[r5]interface g0/0/0
[r5-GigabitEthernet0/0/0]ip address 192.168.1.130 27
//环回
[r5]interface LoopBack 0
[r5-LoopBack0]ip address 192.168.1.225 32
//开启ospf
[r5]ospf 1 router-id 5.5.5.5
[r5-ospf-1]area 1
[r5-ospf-1-area-0.0.0.1]network 192.168.1.130 0.0.0.0
//发放缺省
[r5-ospf-1]default-route-advertise
//密文认证
[r5-GigabitEthernet0/0/0]ospf authentication-mode md5 1 cipher 123456
vlan实验：
分析：

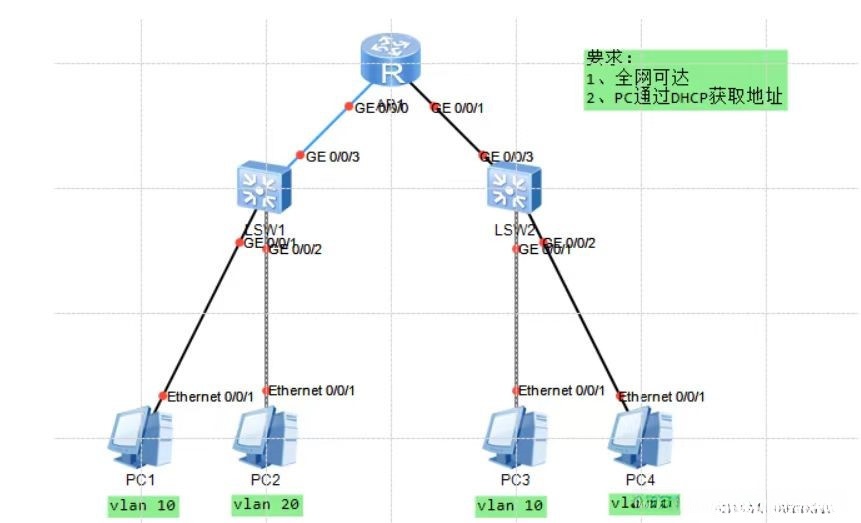

1.在交换机上创建两个虚拟广播域VLAN 10和VLAN 20
2.配置交换机各个接口
3.交换机与pc间设置成access链路，交换机与交换机、路由间设置成trunk链路
4.配置路由器
5.DHCP地址下发
四、实验过程
1.配置交换机 创建两个虚拟广播域 vlan 10 和vlan 20
LSW1:
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]sysname LSW1
[LSW1]vlan batch 10 20
Info: This operation may take a few seconds. Please wait for a moment...done.
[LSW1]interface GigabitEthernet 0/0/1
[LSW1-GigabitEthernet0/0/1]port link-type access
[LSW1-GigabitEthernet0/0/1]port default vlan 10
[LSW1-GigabitEthernet0/0/1]q
[LSW1]int g0/0/2
[LSW1-GigabitEthernet0/0/2]port link-type access
[LSW1-GigabitEthernet0/0/2]port default vlan 20
[LSW1-GigabitEthernet0/0/2]q
[LSW1]int g0/0/3
[LSW1-GigabitEthernet0/0/3]port link-type trunk
[LSW1-GigabitEthernet0/0/3]port trunk allow
[LSW1-GigabitEthernet0/0/3]port trunk allow-pass vlan 10 20
[LSW1-GigabitEthernet0/0/3]q
LSW2:
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]sysname LSW2
[LSW2]vlan batch 10 20
Info: This operation may take a few seconds. Please wait for a moment...done.
[LSW2]int GigabitEthernet 0/0/1
[LSW2-GigabitEthernet0/0/1]port link-type access
[LSW2-GigabitEthernet0/0/1]port default vlan 10
[LSW2-GigabitEthernet0/0/1]q
[LSW2]int g0/0/2
[LSW2-GigabitEthernet0/0/2]port link-type access
[LSW2-GigabitEthernet0/0/2]port default vlan 20
[LSW2-GigabitEthernet0/0/2]q
[LSW2]int g0/0/3
[LSW2-GigabitEthernet0/0/3]port link-type trunk
[LSW2-GigabitEthernet0/0/3]port trunk allow-pass vlan 10 20
[LSW2-GigabitEthernet0/0/3]q
2.在交换机上查看配置的vlan
3.配置路由器，创建对应的IP池，打开arp广播功能，最后进行DHCP地址下发
4.pc端打开DHCP，自动获取IP地址
