2000-2020年中国地面气象数据:从NOAA到分省面板

阅读量:

最近阅读了Mukherjee et al. (2021, JFE)一文,并深受启发。在尝试获取中国地区的云层数据时遇到了困难,在缺乏高质量的数据支持下,只好依照论文中的方法从NOAA处获取并处理气象数据。

数据来源

数据源源自NCDC(美国国家气候数据中心, National Climatic Data Center),归属于NOAA(美国国家海洋及大气管理局)

数据获取自NCDC的公开FTP服务器中专门提供的FTP服务器资源库中。

为了便于查阅的所有数据源文件都可通过我的百度网盘分享链接获取

链接: https://pan.baidu.com/s/1GraMF6SgSg3DBIPxVNlgQQ 密码: l8j9

分析样本为 2000-2020 年间中国的地面气象数据 (每三小时记录一次)。

在这里插入图片描述
原始数据结构

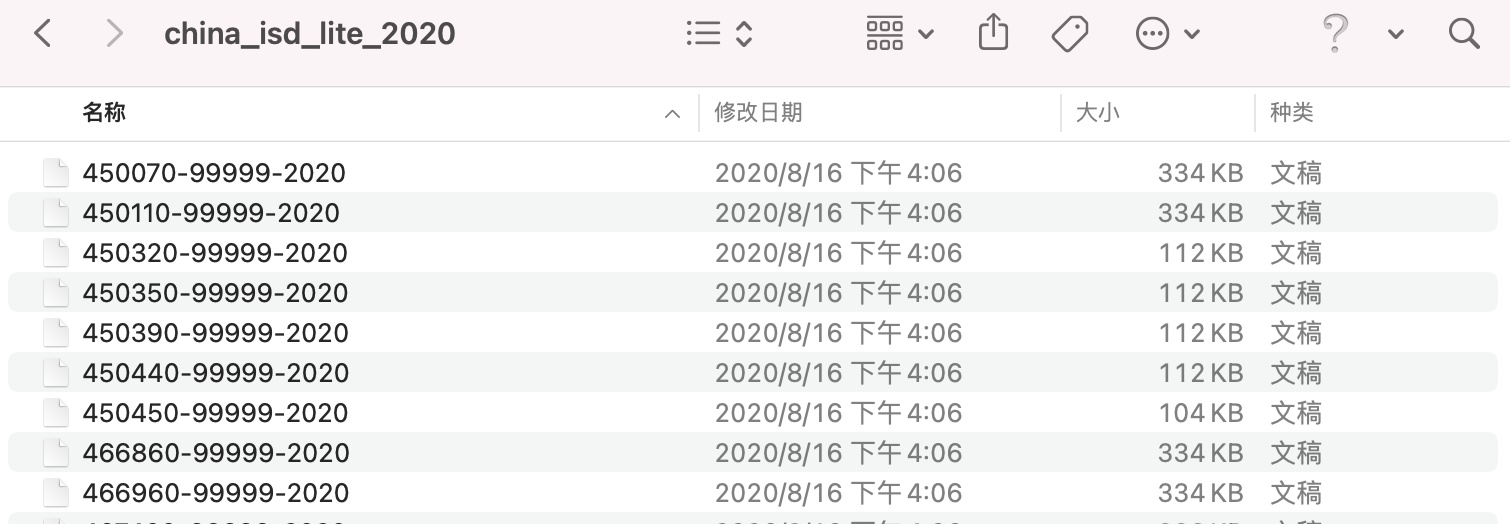

以2020年为例,文件命名方式为 气象站id - 99999 (NCDC WBAN Number) - 年份。

该电子表格文件包含9个字段(即9列),这些字段依次记录了观测时的各项气象数据信息:包括时间要素(观测年份、月份、日期、观测小时)和相关气象参数(空气温度值、露点温度值、海平面气压值)等关键测量指标;具体而言:

  • 观测年份记录的是具体的记录时间点;
  • 观测月份则对应着具体的季节信息;
  • 观测日期提供了完整的时序数据;
  • 观测小时则显示了细致的时间分辨率;
  • 其他各项观测指标依次排列构成了完整的气象监测序列

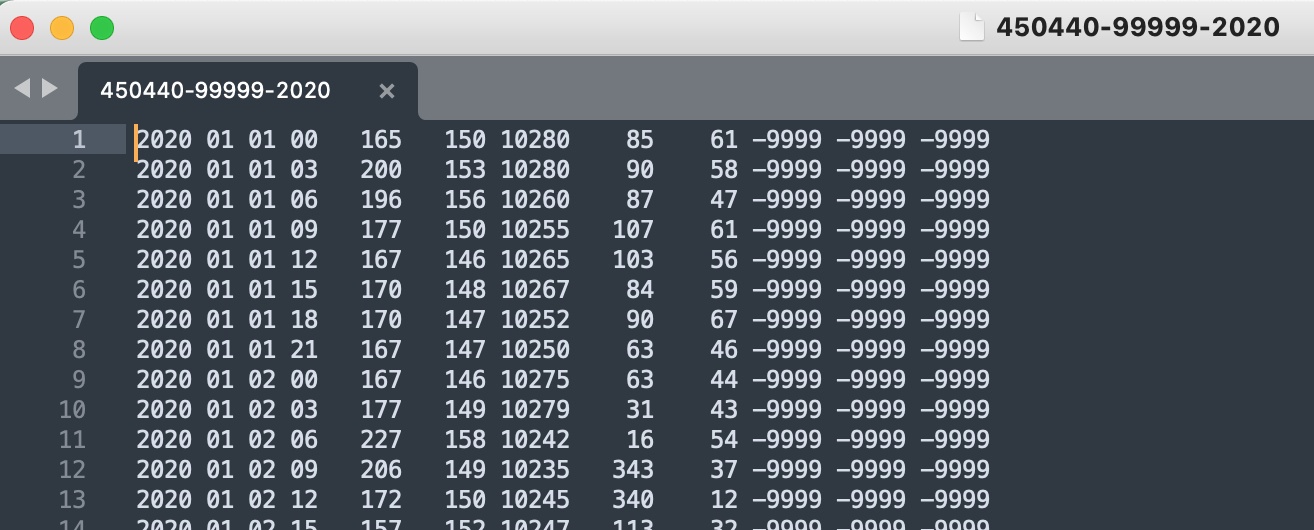

image-20210610102217295

详细变量说明如下:

Introduction

The ISD-Lite data contain a fixed-width formatted subset of the complete Integrated Surface Data (ISD) for a select number of observational elements. The data are typically stored in a single file corresponding to the ISD data, i.e. one file per station per year. For more information on the ISD-Lite format, consult the ISD-Lite technical document.

Data Format

Field 1: Pos 1-4, Length 4: Observation Year
Year of observation, rounded to nearest whole hour

Field 2: Pos 6-7, Length 2: Observation Month
Month of observation, rounded to nearest whole hour

Field 3: Pos 9-11, Length 2: Observation Day
Day of observation, rounded to nearest whole hour

Field 4: Pos 12-13, Length 2: Observation Hour
Hour of observation, rounded to nearest whole hour

Field 5: Pos 14-19, Length 6: Air Temperature
The temperature of the air
UNITS: Degrees Celsius
SCALING FACTOR: 10
MISSING VALUE: -9999

Field 6: Pos 20-24, Length 6: Dew Point Temperature
The temperature to which a given parcel of air must be cooled at constant pressure and water vapor content in order for saturation to occur.
UNITS: Degrees Celsius
SCALING FACTOR: 10
MISSING VALUE: -9999

Field 7: Pos 26-31, Length 6: Sea Level Pressure
The air pressure relative to Mean Sea Level (MSL).
UNITS: Hectopascals
SCALING FACTOR: 10
MISSING VALUE: -9999

Field 8: Pos 32-37, Length 6: Wind Direction
The angle, measured in a clockwise direction, between true north and the direction from which the wind is blowing.
UNITS: Angular Degrees
SCALING FACTOR: 1
MISSING VALUE: -9999
*NOTE: Wind direction for calm winds is coded as 0.

Field 9: Pos 38-43, Length 6: Wind Speed Rate
The rate of horizontal travel of air past a fixed point.
UNITS: meters per second
SCALING FACTOR: 10
MISSING VALUE: -9999

Field 10: Pos 44-49, Length 6: Sky Condition Total Coverage Code
The code that denotes the fraction of the total celestial dome covered by clouds or other obscuring phenomena.
MISSING VALUE: -9999
DOMAIN:
0: None, SKC or CLR
1: One okta - 1/10 or less but not zero
2: Two oktas - 2/10 - 3/10, or FEW
3: Three oktas - 4/10
4: Four oktas - 5/10, or SCT
5: Five oktas - 6/10
6: Six oktas - 7/10 - 8/10
7: Seven oktas - 9/10 or more but not 10/10, or BKN
8: Eight oktas - 10/10, or OVC
9: Sky obscured, or cloud amount cannot be estimated
10: Partial obscuration
11: Thin scattered
12: Scattered
13: Dark scattered
14: Thin broken
15: Broken
16: Dark broken
17: Thin overcast
18: Overcast
19: Dark overcast

Field 11: Pos 50-55, Length 6: Liquid Precipitation Depth Dimension - One Hour Duration
The depth of liquid precipitation that is measured over a one hour accumulation period.
UNITS: millimeters
SCALING FACTOR: 10
MISSING VALUE: -9999
*NOTE: Trace precipitation is coded as -1

Field 12: Pos 56-61, Length 6: Liquid Precipitation Depth Dimension - Six Hour Duration
The depth of liquid precipitation that is measured over a six hour accumulation period.
UNITS: millimeters
SCALING FACTOR: 10
MISSING VALUE: -9999
*NOTE: Trace precipitation is coded as -1

数据预处理

Step 1: 系统性地整理和分类存储这些气象观测数据

因为isd文件的数量过多,在逐一转换成dta文件并进行合并的过程中会导致生成大量冗余的dta文件。因此,在将isd文件转换为dta文件之前,建议使用Python精简一下文件数量。

复制代码
    import os
    import csv

    dir = "/.../Data/"
    # isd 文件存储路径

    headline = ['year','mon','day','hour','air_temperature','dew_point_temperature',
            'sea_level_pressure','wind_direction','wind_speed','cloud_cover',
            'precipitation_depth_one_hour','precipitation_depth_six_hour','station']
    # 标题行

    def transisd2csv(year):
    g = os.walk(dir + "china_isd_lite_%s"%year)
    # 遍历指定年份isd文件夹内所有文件
    isExists = os.path.exists(dir + "Aggregate%s/" % year)
    if not isExists:
        os.makedirs(dir + "Aggregate%s/" % year)
    # 如果没有指定年份 Aggregate 文件夹,则创建一个
    for path, dir_list, file_list in g:
        for file_name in file_list:
            if file_name!=".DS_Store":
                station = file_name.split("-")[0]
                # 从每个 isd 文件名中提取气象站 id
                csvFile = open(dir + "Aggregate%s/r%s.csv" % (year, station[:2]), "a", newline='', encoding='utf-8')
                # 命名一个以气象站id前两位命名的csv文件,如果没有则创建一个,存储到前面创建的 Aggregate 文件夹中
                writer = csv.writer(csvFile)
                writer.writerow(headline)
                # 写入标题行
                f = open(dir + "china_isd_lite_%s/" % year + file_name, "r")
                # 逐个打开指定年份isd文件夹中的每个文件
                for line in f:
                  	# 对于每个打开的 isd 文件,逐行读取数据
                    csvRow = line.split()
                    # 对于每一行,以空格分割,得到该行数据的 list 形式
                    csvRow.append(station)
                    # 每列末尾加上气象站 id
                    writer.writerow(csvRow)
                    # 向之前创建的 csv 文件里写入每行数据


    for year in range(2000,2021):
    transisd2csv(year)
    print("Year %s completed"%year)

Step 2: 扫描Aggregate文件夹中的所有文件,并将其CSV转换为年度汇总数据

将精简过数量的 isd 文件转换成 dta 文件,并以年为单位进行合并。

复制代码
    forvalues i = 2000/2020{
    	* 遍历年份

    	local add= "/.../Data/Aggregate"+"`i'/"
    	cd "`add'"
    	* 切换到指定年份的 Aggregate 文件夹

    	* 将之前预处理过的 csv 文件转换成相同命名的 dta 文件
    	local ff : dir . files "*.csv"
    	foreach f of local ff {
    		clear
    		dis "`f'"
    		local filename = substr("`f'",1,ustrrpos("`f'",".")-1)
    		if "`filename'"!=""{
    			dis "`filename'"
    			import delimited "`f'", delimiter(comma) varnames(1)
    			save "`filename'", replace emptyok
    		}
    	}

    	* 合并指定年份所有的 stata 文件
    	use r45,replace
    	local ff : dir . files "*.dta"
    	foreach f of local ff {
    		append using `f'
    	}

    	local saveadd="/.../Data/Aggregate2000-2020/chinaclimate"+"`i'"
    	dis "`saveadd'"

    	* 将指定年份所有的 isd 数据存储到一个 dta 文件里
    	save "`saveadd'", replace emptyok
    }

经过这一步,得到以年为单位存储的 dta 格式的所有 isd 数据

Step 3: 导入 linktable, 便于将气象站 id 映射到省份

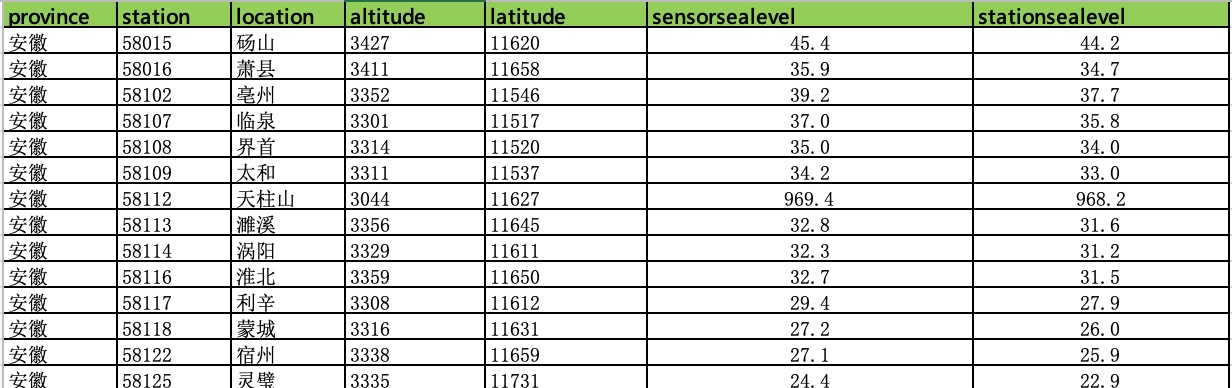

linktable 的数据样例如下

image-20210610101811354
Step 4: 对按照年度存储结构组织好的dta格式全部isd数据文件进行处理, 生成各变量的时间序列年度平均值
复制代码
    forvalues i = 2000/2020{
    	* 遍历每个年份的 isd 数据
    	use chinaclimate`i'
    	drop if year=="year"
    	* 删除多余的标题行
    	replace station=substr(station, 1, 5)
    	* 保留 stationid 的前五位,便于与 linktable 配对
    	sort station
    	merge station using linktable
    	keep if _merge==3
    	drop _merge
    	* 与 linktable 配对,得到每个气象站对应的省份

    	rename precipitation_depth_one_hour precipitation_one_hour
    	rename precipitation_depth_six_hour precipitation_six_hour

    	sort year mon day station hour
    	local vars air_temperature-precipitation_six_hour
    	destring `vars',replace
    	* 转换为数值型变量

    	global vars air_temperature dew_point_temperature sea_level_pressure wind_direction wind_speed cloud_cover precipitation_one_hour precipitation_six_hour

    	foreach v of global vars{
    		replace `v'=. if `v'==-9999
    		* 对于每个变量,将值为 -9999 的观测替换为缺失值
    		by year mon day station: egen dayave_`v'=mean(`v')
    		* 对于每个观测站每个日期,求每个变量的日平均
    		drop `v'
    		* 只保留求日平均之后的变量
    	}

    	drop hour
    	duplicates drop year mon day station,force
    	* 对于每个观测站的每个日期,保留唯一观测

    	foreach v of global vars{
    		replace dayave_`v'=. if dayave_`v'==-9999
    		* 对于每个日平均变量,将值为 -9999 的观测替换为缺失值
    		bys year province: egen yearave_`v'=mean(dayave_`v')
    		* 对于每个省份每个年份,求每个变量的年平均
    		drop dayave_`v'
    		* 只保留年平均变量
    	}

    	keep year province clouday yearave*
    	duplicates drop year province,force
    	* 对于每个观测站每个年份,保留唯一观测
    	save yearclimate`i'
    	* 将省份-年平均 isd 数据存储到相应年份命名的 dta 文件中
    }
Step 5: 将2000-2020年所有省份-年平均 isd 数据写入一个 dta 文件中
复制代码
    clear
    set obs 0
    save yearclimate2000-2020, emptyok
    local ff : dir . files "*.dta"
    	foreach f of local ff {
    		local tag = (substr("`f'",1,11)=="yearclimate")
    		* 识别出文件夹内所有以 yearclimate 开头的 dta 文件并将其合并到一个 dta 文件里
    			dis `tag'
    			if `tag'==1{
    				append using `f'
    			}
    	}
    save yearclimate2000-2020, replace

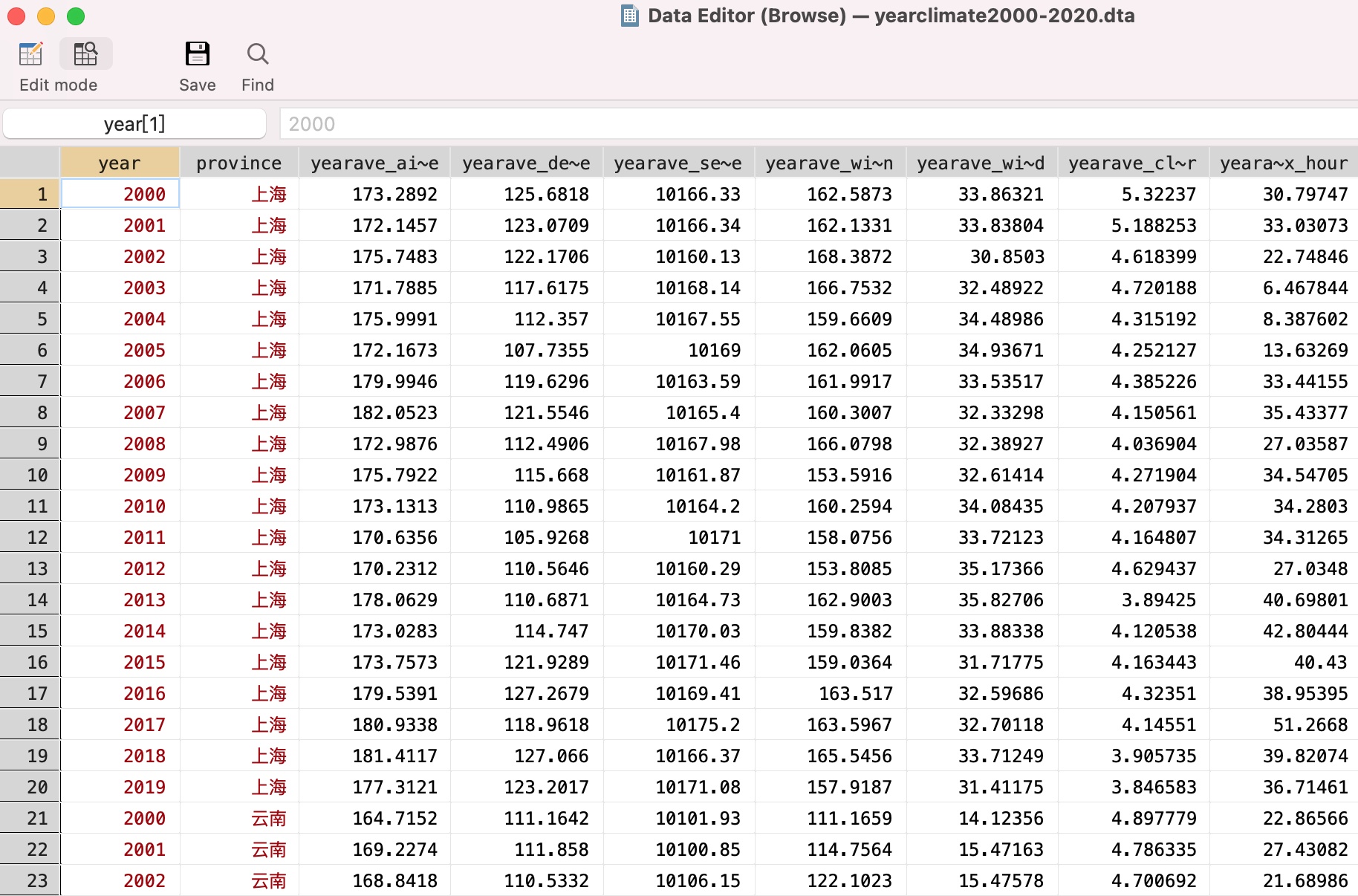

最终得到每个省份每年的平均气象数据文件
参考文献

Mukherjee, Abhiroop, George Panayotov, and Janghoon Shon (2021) conducted research titled “Eye in the Sky: The Role of Private Satellites in Analyzing Government Macroeconomic Data,” which was published in the Journal of Financial Economics in March. The study can be accessed via the DOI: 10.1016/j.jfineco.2021.03.002
