Latex 常用模版（IEEE Trans系列 双栏期刊）
发布时间
阅读量：
阅读量
一、引入的包
使用前请检查是否有包遗落和冲突。
\documentclass[lettersize,journal]{IEEEtran}
\usepackage{amsmath,amsfonts}
\usepackage{algorithm}
\usepackage{algpseudocode}
\usepackage{array}
\usepackage[caption=false,font=normalsize,labelfont=sf,textfont=sf]{subfig}
\usepackage{textcomp}
\usepackage{stfloats}
\usepackage{url}
\usepackage{verbatim}
\usepackage{graphicx}
\usepackage{cite}
\usepackage{orcidlink}
\usepackage{multirow}
\usepackage{tabularx}
\usepackage{pifont}
\hyphenation{op-tical net-works semi-conduc-tor IEEE-Xplore}

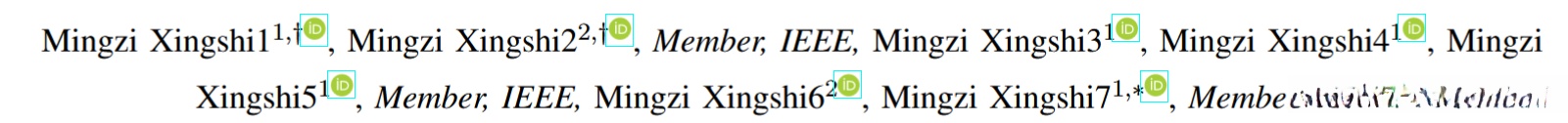

AI写代码二、作者列表
\author{
Mingzi Xingshi1$^{1,\dagger \orcidlink{0000-0000-0000-0000}}$,
Mingzi Xingshi2$^{2,\dagger \orcidlink{0000-0000-0000-0000}}$,~\IEEEmembership{Member,~IEEE,}
Mingzi Xingshi3$^{1 \orcidlink{0000-0000-0000-0000}}$,
Mingzi Xingshi4$^{1 \orcidlink{0000-0000-0000-0000}}$,
Mingzi Xingshi5$^{1 \orcidlink{0000-0000-0000-0000}}$,~\IEEEmembership{Member,~IEEE,}
Mingzi Xingshi6$^{2 \orcidlink{0000-0000-0000-0000}}$,
Mingzi Xingshi7$^{1,* \orcidlink{0000-0000-0000-0000}}$,~\IEEEmembership{Member,~IEEE}

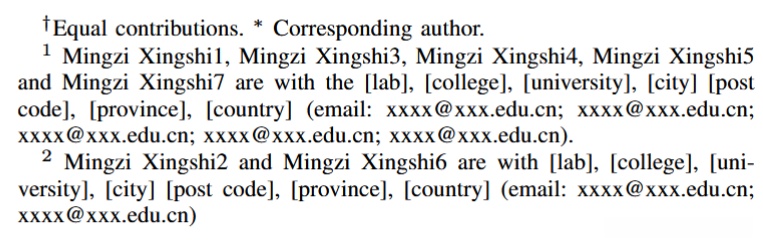

\thanks{$^ \dagger$Equal contributions. $^*$ Corresponding author.}
\thanks{$^1$ Mingzi Xingshi1, Mingzi Xingshi3, Mingzi Xingshi4, Mingzi Xingshi5 and Mingzi Xingshi7 are with the [lab], [college], [university], [city] [post code], [province], [country] (email: xxxx@xxx.edu.cn; xxxx@xxx.edu.cn; xxxx@xxx.edu.cn; xxxx@xxx.edu.cn; xxxx@xxx.edu.cn).}
\thanks{$^2$ Mingzi Xingshi2 and Mingzi Xingshi6 are with [lab], [college], [university], [city] [post code], [province], [country] (email: xxxx@xxx.edu.cn; xxxx@xxx.edu.cn)}}
AI写代码效果展示

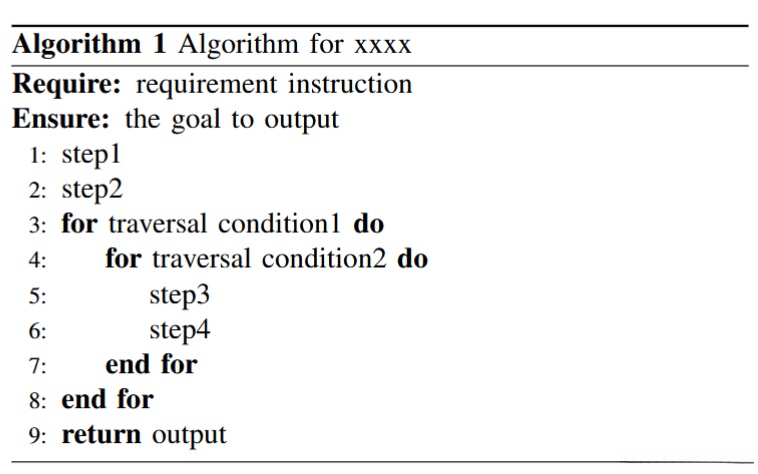

三、伪代码
The xxx process is summarized in Algorithm \ref{alg:xxx}.
\begin{algorithm}[H]
\caption{Algorithm for xxxx}
\label{alg:xxx}
\begin{algorithmic}[1]
\Require requirement instruction
\Ensure the goal to output
\State step1
\State step2
\For{traversal condition1}
\For{traversal condition2}
\State step3
\State step4
\EndFor
\EndFor
\State \Return output
\end{algorithmic}
\end{algorithm}
AI写代码效果展示
四、表格

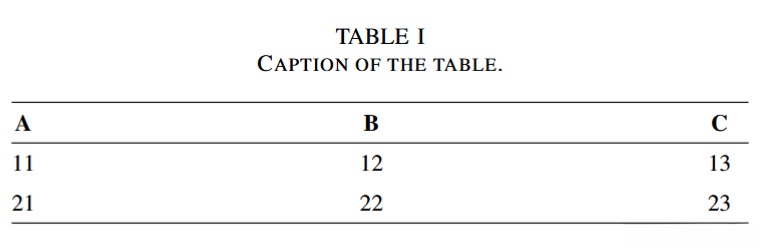

单栏表格
\begin{table}
\renewcommand{\arraystretch}{1.5} % 这行是增加行间距，使得表格更美观，可以删除
\begin{center}
\caption{Caption of the table.}\label{tbl9} % 引用标签
\begin{tabular*}{\linewidth}{@{\extracolsep{\fill}}ccc}
% {\linewidth}{@{\extracolsep{\fill}}ccc}是为了使得表格横向占满整个单栏
% ccc代表有三列且居中，l是靠左，r是靠右，可以自由组合
\hline
\textbf{A} & \textbf{B} & \textbf{C} \
\hline
11 & 12 & 13 \
21 & 22 & 23 \
\hline
\end{tabular*}
\end{center}
\end{table}
AI写代码效果展示

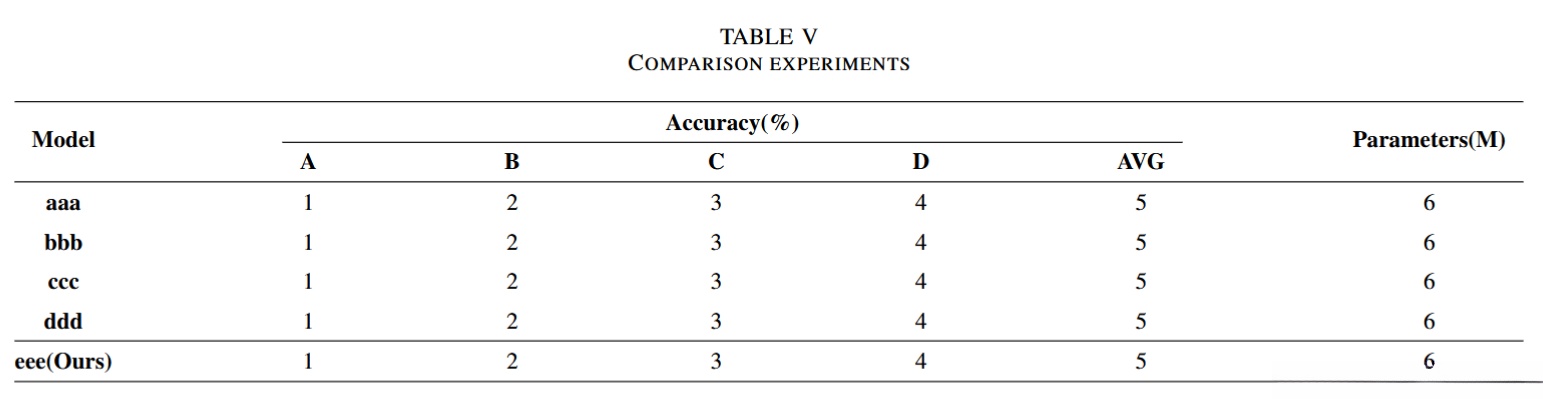

双栏表格
\begin{table*} \renewcommand{\arraystretch}{1.5}
\begin{center}
\caption{Comparison experiments}\label{tbl1}
\begin{tabular*}{\linewidth}{@{\extracolsep{\fill}}ccccccc}
\hline
\multirow{2}{*}{\textbf{Model}} & \multicolumn{5}{c}{\textbf{Accuracy(\%)}} & \multirow{2}{*}{\textbf{Parameters(M)}} \ \cline{2 - 6}
& \textbf{A} & \textbf{B} & \textbf{C} & \textbf{D} & \textbf{AVG} & \
\hline
\textbf{aaa} & 1 & 2 & 3 & 4 & 5 & 6 \
\textbf{bbb}& 1 & 2 & 3 & 4 & 5 & 6 \
\textbf{ccc} & 1 & 2 & 3 & 4 & 5 & 6 \
\textbf{ddd} & 1 & 2 & 3 & 4 & 5 & 6 \
\hline
\textbf{eee(Ours)} & 1 & 2 & 3 & 4 & 5 & 6 \
\hline
\end{tabular*}
\end{center}
\end{table*}
AI写代码效果展示

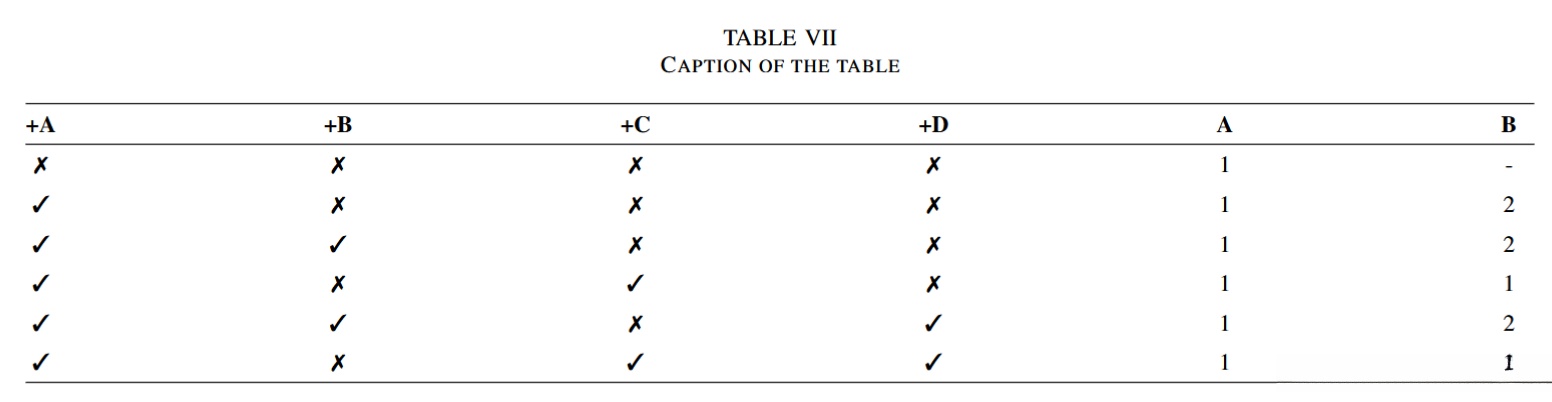

ding符号 对号和叉号（双栏为例）
记得导包
\usepackage{pifont}
\begin{table*} \renewcommand{\arraystretch}{1.5}
\begin{center}
\caption{Caption of the table}\label{tbl10}
\begin{tabular*}{\linewidth}{@{\extracolsep{\fill}}cccccc}
\hline
\textbf{+A} & \textbf{+B} & \textbf{+C} & \textbf{+D} & \textbf{A} & \textbf{B} \ \hline
\ding{55} & \ding{55} & \ding{55} & \ding{55} & 1 & \multicolumn{1}{c}{-} \
\ding{51} & \ding{55} & \ding{55} & \ding{55} & 1 & 2 \
\ding{51} & \ding{51} & \ding{55} & \ding{55} & 1 & 2 \
\ding{51} & \ding{55} & \ding{51} & \ding{55} & 1 & 1 \
\ding{51} & \ding{51} & \ding{55} & \ding{51} & 1 & 2 \
\ding{51} & \ding{55} & \ding{51} & \ding{51} & 1 & 1 \
\hline
\end{tabular*}
\end{center}
\end{table*}
AI写代码效果展示

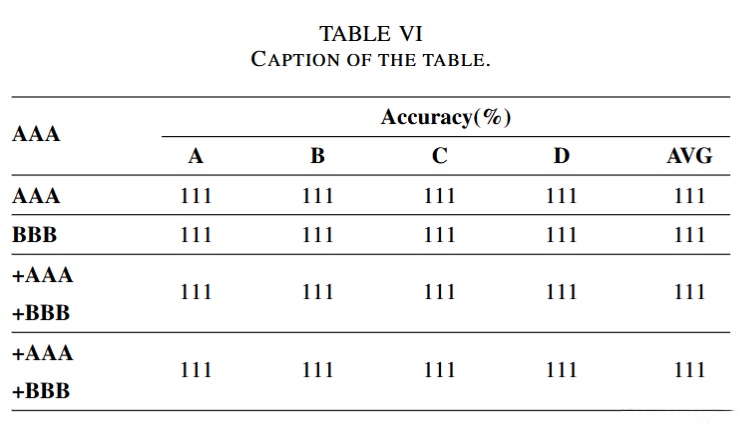

表中表（单栏为例）
\begin{table} \renewcommand{\arraystretch}{1.5}
\begin{center}
\caption{Caption of the table.}\label{tblxxx}
\begin{tabular*}{\linewidth}{@{\extracolsep{\fill}}lccccc}
\hline
\multirow{2}{*}{\textbf{AAA}} & \multicolumn{5}{c}{\textbf{Accuracy(\%)}} \ \cline{2 - 6}
& \textbf{A} & \textbf{B} & \textbf{C} & \textbf{D} & \textbf{AVG} \
\hline
\textbf{AAA} & 111 & 111 & 111 & 111 & 111 \ \hline
\textbf{BBB} & 111 & 111 & 111 & 111 & 111 \ \hline
\begin{tabular}[L]{@{\extracolsep{\fill}}l}\textbf{+AAA}\ \textbf{+BBB}\end{tabular} & 111 & 111 & 111 & 111 & 111 \ \hline
\begin{tabular}[L]{@{\extracolsep{\fill}}l}\textbf{+AAA}\ \textbf{+BBB}\end{tabular} & 111 & 111 & 111 & 111 & 111 \ \hline
\end{tabular*}
\end{center}
\end{table}
Table \ref{tblxxx}
AI写代码效果展示
五、图片
画图我还是推荐大家使用PPT，然后导出为pdf，大道至简。
鸣谢：本文使用的小狗图片来源为小狗图。

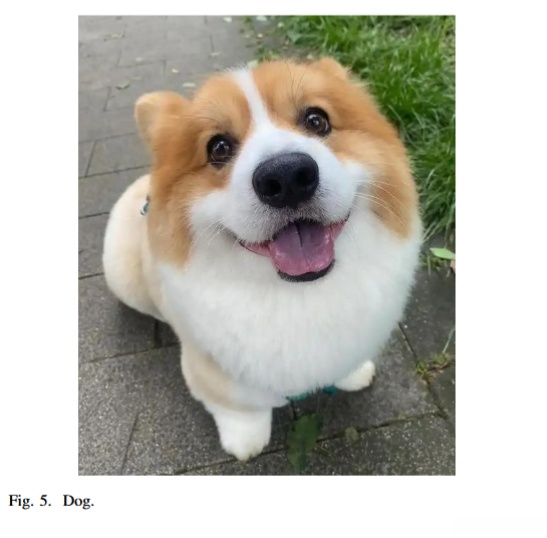

单栏单图
\begin{figure}
\centering
\includegraphics[width=0.5\textwidth, trim=2cm 0.25cm 2cm 0.2cm]{pic/dog.pdf}
\caption{Dog.}
\label{fig:dog}
\end{figure}
Figure \ref{fig:dog} is one picture of the cute dog.
AI写代码

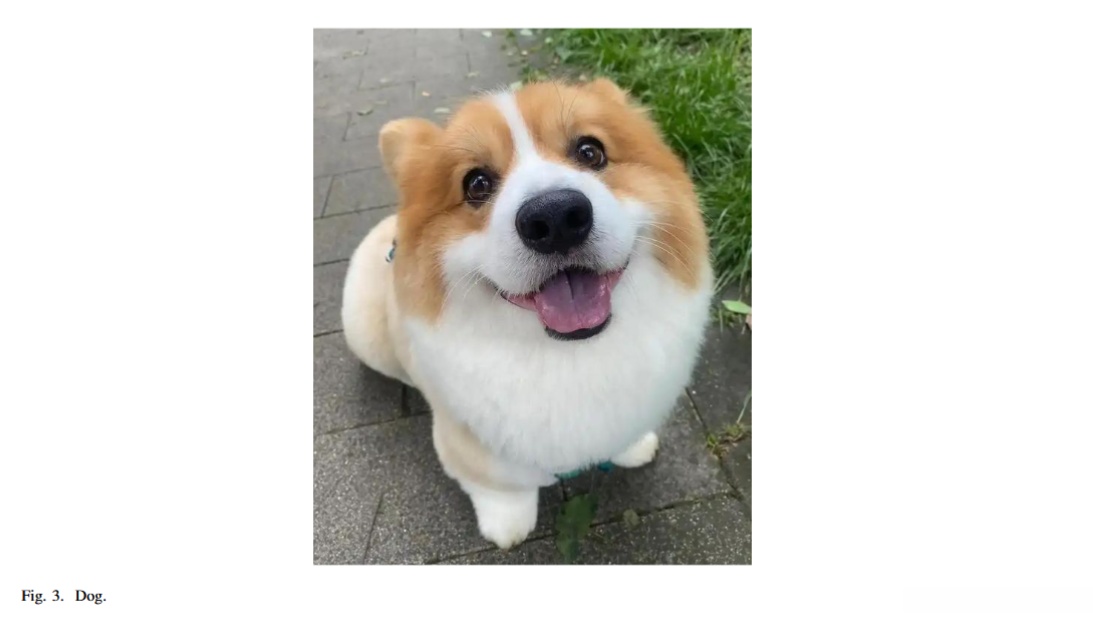

双栏单图
\begin{figure*}
\centering
\includegraphics[scale=0.5]{pic/dog.pdf}
\caption{Dog.}
\label{fig:dog2}
\end{figure*}
AI写代码效果展示

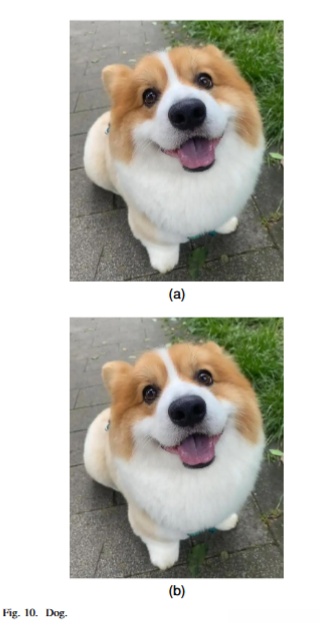

竖版单栏子图
\begin{figure}[!t]
\centering
\subfloat[]{\includegraphics[width=3.5in]{pic/dog.pdf}%
\label{fig:dog3-1}}
\hfil
\subfloat[]{\includegraphics[width=3.5in]{pic/dog.pdf}%
\label{fig:dog3-2}}
\caption{Dog.}
\label{fig:dog3}
\end{figure}
Figure \ref{fig:dog3}, Figure \ref{fig:dog3-1}, Figure \ref{fig:dog3-2}.
AI写代码效果展示

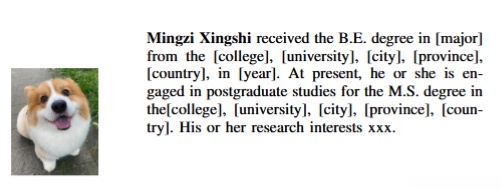

六、作者传记（带图片）
\section{Biography Section}
\vspace{-33pt} % 要加这个对行间距进行改变
\begin{IEEEbiography}[{\includegraphics[width=1in,height=1.25in,clip,keepaspectratio]{pic/dog.pdf}}]{Mingzi Xingshi} received the B.E. degree in [major] from the [college], [university], [city], [province], [country], in [year]. At present, he or she is engaged in postgraduate studies for the M.S. degree in the[college], [university], [city], [province], [country]. His or her research interests xxx.
\end{IEEEbiography}
AI写代码效果展示
七、最后
祝福大家新年快乐，paper顺利发表！
