二维图像的离散傅立叶变换处理

 #include <opencv/cv.h>


 #include <opencv2/contrib/contrib.hpp>

 #include <opencv/highgui.h>

 #include "opencv2/core/core.hpp"

 #include "opencv2/imgproc/imgproc.hpp"

 #include "opencv2/highgui/highgui.hpp"

 #include <iostream>

 using namespace cv;



 int main(int argc,char** argv)

 {

 	Mat img = imread("D:\ 1.jpg");//原图为彩图

 	Mat gray_img(img.size(),CV_32F);//

 	if(img.empty())

 	{

 		return false;

 	}

 	if(img.channels()!=1)

 	{

 		cvtColor(img,gray_img,CV_BGR2GRAY);//将原图转换为灰度图

 	}

 	Mat expanded;

 	int height = getOptimalDFTSize(gray_img.rows);//DFT变换找到最合适的图像的长宽，下面会介绍原理

 	int width = getOptimalDFTSize(gray_img.cols);

 	expanded.create(height,width,CV_32F);

 	copyMakeBorder(gray_img,expanded,0,height-gray_img.rows,0,width-gray_img.cols,BORDER_CONSTANT,Scalar::all(0));//将原图像扩充



 	Mat plural[]={Mat_<float>(expanded),Mat::zeros(expanded.size(),CV_32F)};//注意Mat_为模板，下面会介绍

 	Mat complex;

 	merge(plural,2,complex);//merge(Mat* input,size_t count,Mat* output)//merge根据参数不同，意义不同



 	dft(complex,complex);//dft变换

 	split(complex,plural);

 	magnitude(plural[0],plural[1],plural[0]);//dft转换后的图像只有转换为幅度图才能显示出来

 	Mat Image = plural[0];



 	Image += Scalar::all(1);//将幅度图进行尺度变换，主要的原因是幅度图太大，频率低为白点，频率高为黑点，有兴趣的可以输出图像看看效果

 	log(Image,Image);



 	Image = Image(Rect(0,0,Image.cols&-2,Image.rows&-2));//以下操作等价为将图像进行顺时针90度，为了将原点移至图像的中心

 	int x =Image.cols/2;

 	int y =Image.rows/2;



 	Mat C0(Image,Rect(0,0,x,y));

 	Mat C1(Image,Rect(x,0,x,y));

 	Mat C2(Image,Rect(0,y,x,y));

 	Mat C3(Image,Rect(x,y,x,y));



 	Mat temp;

 	C0.copyTo(temp);

 	C3.copyTo(C0);

 	temp.copyTo(C3);



 	C1.copyTo(temp);

 	C2.copyTo(C1);

 	temp.copyTo(C2);

 	normalize(Image, Image, 0, 1, CV_MINMAX);//归一化也为了能够显示图像，不然图像还是太大

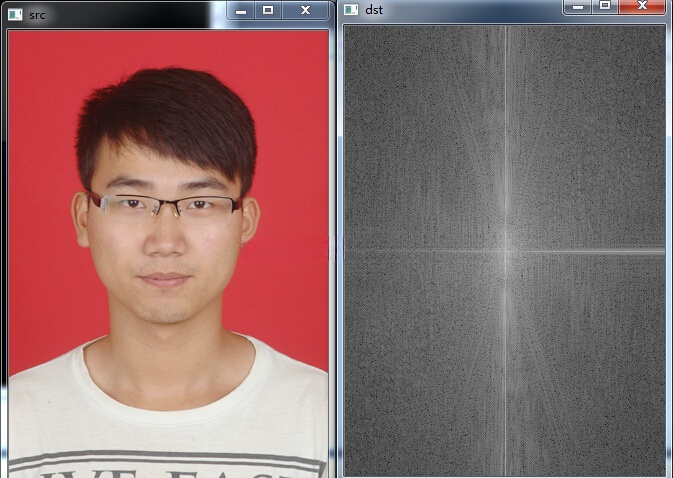

 	imshow("src",img);

 	imshow("dst",Image);

 	waitKey(0);

 }
