图融合GCN（Graph Convolutional Networks）
图融合GCN（Graph Convolutional Networks）

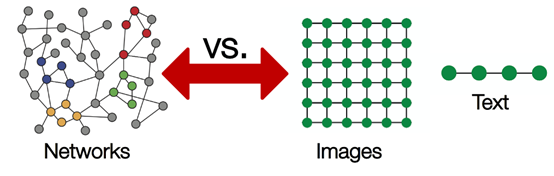

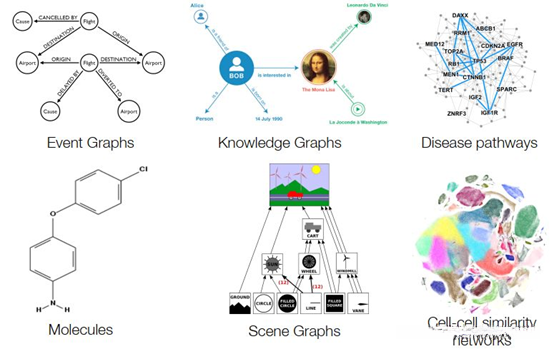

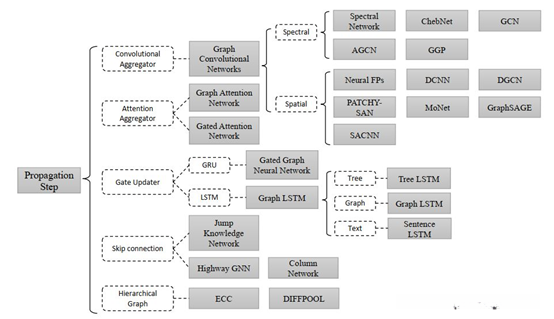

数据其实是图（graph），图在生活中无处不在，如社交网络，知识图谱，蛋白质结构等。本文介绍GNN（Graph Neural Networks）中的分支：GCN（Graph Convolutional Networks）。
GCN的PyTorch实现

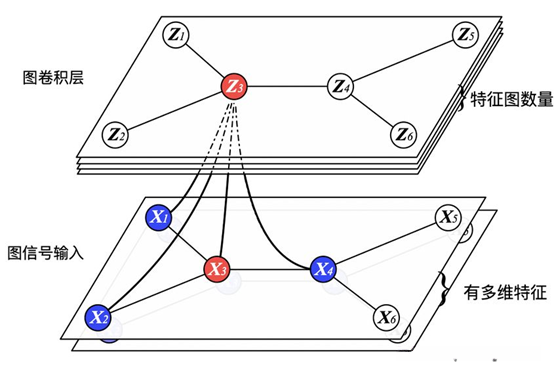

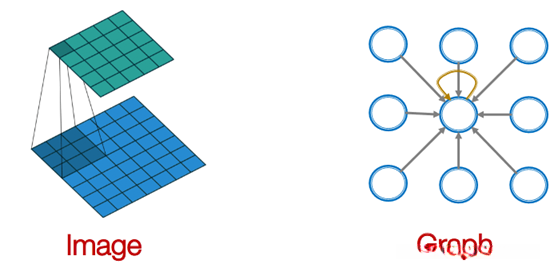

虽然GCN从数学上较难理解，但是，实现是非常简单的，值得注意的一点是，一般情况下邻接矩阵是稀疏矩阵，所以，在实现矩阵乘法时，采用稀疏运算会更高效。首先，图卷积层的实现：
import torch
import torch.nn as nn
class GraphConvolution(nn.Module):
"""GCN layer"""
def __init__(self, in_features, out_features, bias=True):
super(GraphConvolution, self).__init__()
self.in_features = in_features
self.out_features = out_features
self.weight = nn.Parameter(torch.Tensor(in_features, out_features))
if bias:
self.bias = nn.Parameter(torch.Tensor(out_features))
else:
self.register_parameter('bias', None)
self.reset_parameters()
def reset_parameters(self):
nn.init.kaiming_uniform_(self.weight)
if self.bias isnotNone:
nn.init.zeros_(self.bias)
def forward(self, input, adj):
support = torch.mm(input, self.weight)
output = torch.spmm(adj, support)
if self.bias isnotNone:
return output + self.bias
else:
return output
def extra_repr(self):
return'in_features={}, out_features={}, bias={}'.format(
self.in_features, self.out_features, self.bias isnotNone

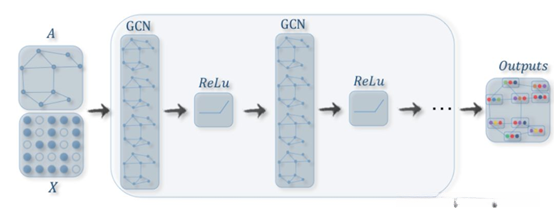

)对于GCN，只需要将图卷积层堆积起来就可以，这里，实现一个两层的GCN：
class GCN(nn.Module):
“”“a simple two layer GCN”""
def init(self, nfeat, nhid, nclass):
super(GCN, self).init()
self.gc1 = GraphConvolution(nfeat, nhid)
self.gc2 = GraphConvolution(nhid, nclass)
def forward(self, input, adj):
h1 = F.relu(self.gc1(input, adj))
logits = self.gc2(h1, adj)
return logits这里的激活函数采用ReLU，后面，将用这个网络实现一个图中节点的半监督分类任务。
数据的提取，只需要load就可以：
https://github.com/tkipf/pygcn/blob/master/pygcn/utils.py
adj, features, labels, idx_train, idx_val, idx_test = load_data(path="./data/cora/")

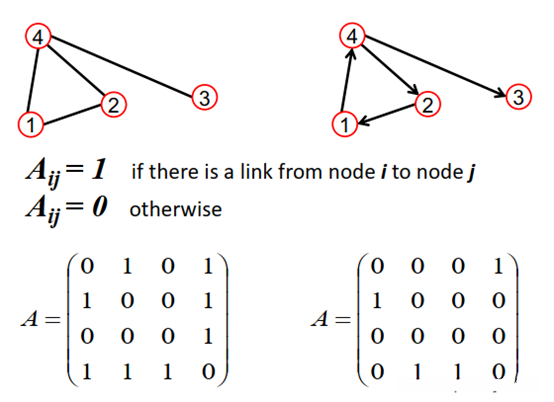

值得注意的有两点，一是论文引用应该是单向图，但是在网络时，要先将其转成无向图，或者说建立双向引用，这个对模型训练结果影响较大：
build symmetric adjacency matrix
adj = adj + adj.T.multiply(adj.T > adj) - adj.multiply(adj.T > adj)
另外，官方实现中对邻接矩阵采用的是普通均值归一化，当然，也可以采用对称归一化方式：
def normalize_adj(adj):
“”“compute L=D^-0.5 * (A+I) * D^-0.5"”"
adj += sp.eye(adj.shape[0])
degree = np.array(adj.sum(1))
d_hat = sp.diags(np.power(degree, -0.5).flatten())
norm_adj = d_hat.dot(adj).dot(d_hat)
return norm_adj

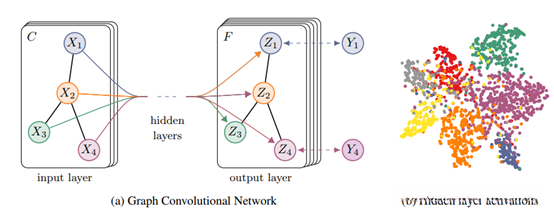

这里，只采用图中140个有标签样本对GCN进行训练，每个epoch计算出这些节点特征，然后计算loss：
loss_history = []
val_acc_history = []
for epoch in range(epochs):
model.train()
logits = model(features, adj)
loss = criterion(logits[idx_train], labels[idx_train])
train_acc = accuracy(logits[idx_train], labels[idx_train])
optimizer.zero_grad()
loss.backward()
optimizer.step()
val_acc = test(idx_val)
loss_history.append(loss.item())
val_acc_history.append(val_acc.item())
print("Epoch {:03d}: Loss {:.4f}, TrainAcc {:.4}, ValAcc {:.4f}".format(

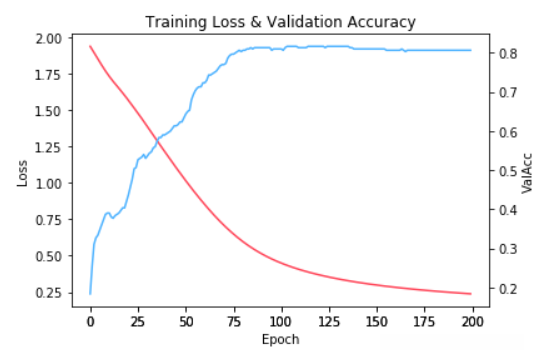

epoch, loss.item(), train_acc.item(), val_acc.item()))只需要训练200个epoch，就可以在测试集上达到80%左右的分类准确，GCN的强大可想而知：
融合BN和Conv层
在PyTorch中实现这个融合操作：nn.Conv2d参数:
• filter weights,W: conv.weight;
• bias,b: conv.bias;

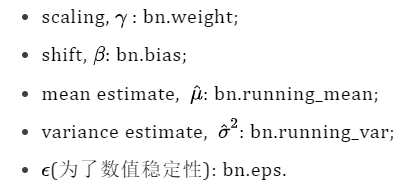

nn.BatchNorm2d参数:
具体的实现代码如下（Google Colab, https://colab.research.google.com/drive/1mRyq_LlJW4u_rArzzhEe_T6tmEWoNN1K）:
import torch
import torchvision
def fuse(conv, bn):
fused = torch.nn.Conv2d(
conv.in_channels,
conv.out_channels,
kernel_size=conv.kernel_size,
stride=conv.stride,
padding=conv.padding,
bias=True
)
# setting weights
w_conv = conv.weight.clone().view(conv.out_channels, -1)
w_bn = torch.diag(bn.weight.div(torch.sqrt(bn.eps+bn.running_var)))
fused.weight.copy_( torch.mm(w_bn, w_conv).view(fused.weight.size()) )
# setting bias
if conv.bias isnotNone:
b_conv = conv.bias
else:
b_conv = torch.zeros( conv.weight.size(0) )
b_bn = bn.bias - bn.weight.mul(bn.running_mean).div(
torch.sqrt(bn.running_var + bn.eps)
)
fused.bias.copy_( b_conv + b_bn )
return fused
# Testing
# we need to turn off gradient calculation because we didn't write it
torch.set_grad_enabled(False)
x = torch.randn(16, 3, 256, 256)
resnet18 = torchvision.models.resnet18(pretrained=True)
# removing all learning variables, etc
resnet18.eval()
model = torch.nn.Sequential(
resnet18.conv1,
resnet18.bn1
)
f1 = model.forward(x)
fused = fuse(model[0], model[1])
f2 = fused.forward(x)
d = (f1 - f2).mean().item()
print("error:",d)参考链接：
