raster display : show images as rectangular arrays of pixels
-
pixel : a short for “picture element”
-
raster image : a 2D array that stores the pixel value for each pixel——R G B
-
因为显示设备与图片大小不能保证一致，可能会有拉伸、变形、变色等变换发生，因此it’s best to think of a raster image as a device-independent description of the image to be displayed
-
vector image : 另一种显示方式，storing descriptions of shapes——areas of color bounded by lines or curves——with no reference to any particular pixel grid
- advantage: resolution independent, can be displayed well on very high resolution devices
- disadvantage: must be rasterized（光栅化） before displayed
- often used for: text, diagrams, mechanical drawings——crispness and precision are important, photographic images and complex shading aren’t needed
Raster Devices
Displays
一般说来，显示设备有两种：
-
emissive displays : 发射型显示器，use pixels that directly emit controllable amounts of light
- 如，light-emitting diode (LED), 每个像素上都有半导体设备（可能多个颜色如R G B，在远方看起来就会形成一种颜色），根据当前电流决定其光强
-
transmissive displays : 透射式显示器，the pixels themselves don’t emit light but instead vary the amount of the light that they allow to pass through them, require a light source to illuminate them

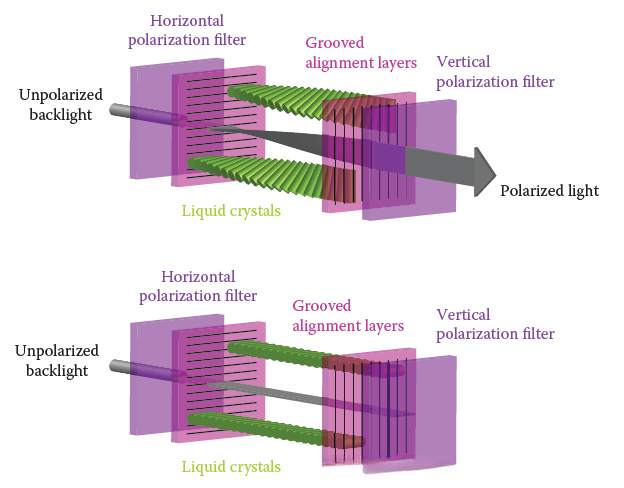

- 如，liquid crystal displays (LCDs)，如图所示，偏振光会根据电压大小偏转不同的角度，偏转度为0时没有光线通过filter，当电压使其偏转90度时，所有光线都会通过filter，此时光强最大
- 如，liquid crystal displays (LCDs)，如图所示，偏振光会根据电压大小偏转不同的角度，偏转度为0时没有光线通过filter，当电压使其偏转90度时，所有光线都会通过filter，此时光强最大
- 分辨率的含义：一张图片上有多少个像素点（长×宽）
Hardcopy Devices
- int-jet printer : 喷墨式打印机，一般只能打印binary images，可使用多颜色喷头打印彩色图片
- thermal dye transfer : 热敏式，在print head和dye receiver中间加入一层donor ribbon，可以根据热度产生不同强度的颜色
-
分辨率的含义——pixel desity
- ppi : 如热敏式的300 pixels per inch——has elements spaced 300 per inch across its head
- dpi : 如喷墨式的1200 dots per inch——places dots on a grid with 1200 grid points per inch
- 同等质量的图片，喷墨式通常需要比热敏式更高的分辨率（吧？）
Input Devices
-
相机中也有像素级别的感光元件，去获取该像素的颜色和光强
-
多数相机中会使用像上图一样的color-filter array or mosaic to allow each pixel to see only red, green or blue light, leaving the image processing software to fill in the missing values in a process known as demosaicking（去马赛克）
-
还有一些相机使用多层感光元件，每一层去感不同颜色的光（R G B），不需要多余的处理了
-
分辨率的含义：
- the fixed number of pixels in the array
- is usually quoted using the total count of pixels：如3000×2000 = 6 million pixels——6 megapixel (MP) camera
Images, Pixels, and Geometry
- 首先，我们将图片的表示抽象为I(x,y) : R \rightarrow V，其中R\subset\mathbb{R}^{2} is a rectangular area, V is the set of possible pixel values
- 像素点的值含义：the value of the image in the vicinity（邻近） of this grid point

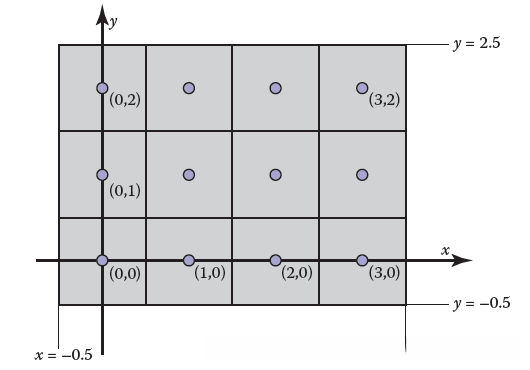

- 下图是本书中像素含义约定：
Pixel Values
-
HDR : high dynamic range, images stored with floating-point numbers
-
LDR : low dynamic range, images that are stored with integers
-
常见格式：每像素RGB（3个）/灰度（1个）32位浮点数——占内存太大，所以要优化
-
但优化后，每像素所用位数变少，可能会造成两种后果：
- clipping: 如，阳光下，过亮的地方无法显示
- quantization, or banding: 尤其在动态图像中，会产生突变
Monitor Intensities and Gamma
-
显示值和输入值不是一一对称的，也不是线性关系（显示器关掉的时候可能也会有一点光强）
-
通常可用公式表示：displayed\,intensity = (maximum\,intensity)a^{\lambda}, where a is the input pixel value between zero and one, \lambda is the degree of freedom
-
的求法：找到灰度=0.5时的a值，\lambda = \frac{\ln 0.5}{\ln a}
-
这个图还蛮好玩的就放上来啦！离远了看或者摘掉近视眼镜看，觉得左右颜色一样，就找到灰度=0.5的颜色了~
-
gamma correct原理看懂了，那个公式看不明白。。总觉得不对
-
原理是，令a^{'}=a^{\frac{1}{\lambda}}，可以使输入输出变成线性~
为什么要有个值？
- 人眼对光强的感受是非线性的
- between 1.5 and 3会使光强与人的主观感受相匹配
RGB Color
Alpha Compositing 透明度混合

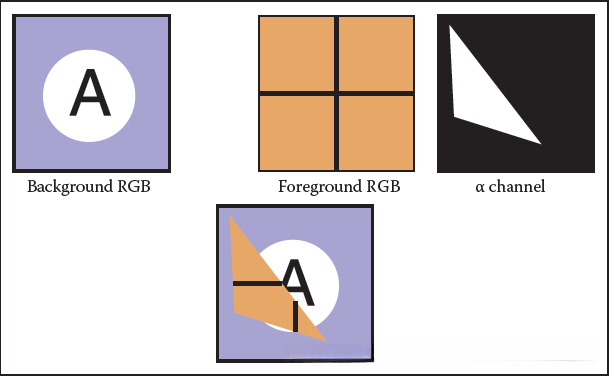

- 混合结果可以用公式表示：c = \alpha c_f + (1-\alpha)c_b, where \alpha is the pixel coverage, which tells the fraction of the pixel covered by the foreground layer, c_f is the foreground color, c_b is the background color
- 值可以存储在一个单独的灰度图像中，又可称为alpha mask或transparency mask；或存储在RGB图像的第四个通道中，即alpha channel
Image Storage
- jpeg : lossy formant, compresses image blocks based on thresholds in the human visual system, works well for natural images
- tiff : is most commonly used to hold binary images or losslessly compressed 8- or 16-bit RGB
- ppm : loseless, uncompressed format, most often used for 8-bit RGB images
- png : lossless, with a good set of open source management tools
