unet脑肿瘤分割完整代码

    在这里插入代码片import os
    import numpy as np
    import glob
    from PIL import Image
    import cv2
    import torchvision
    from torch.utils.data import Dataset, DataLoader
    from torchvision import transforms
    import torch
    import matplotlib.pyplot as plt

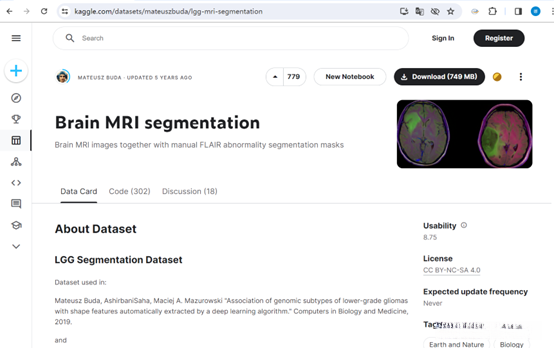

    kaggle_3m='./kaggle_3m/'
    dirs=glob.glob(kaggle_3m+'*')
    #print(dirs)
    #os.listdir('./kaggle_3m\ TCGA_HT_A61B_19991127')
    data_img=[]
    data_label=[]
    for subdir in dirs:
    dirname=subdir.split('\ ')[-1]
    for filename in os.listdir(subdir):
        img_path=subdir+'/'+filename #图片的绝对路径
        if 'mask' in img_path:
            data_label.append(img_path)
        else:
            data_img.append(img_path)
    #data_img[:5] #前几张图 和标签是否对应
    #data_label[:5]
    data_imgx=[]
    for i in range(len(data_label)):#图片和标签对应
    img_mask=data_label[i]
    img=img_mask[:-9]+'.tif'
    data_imgx.append(img)
    #data_imgx
    data_newimg=[]
    data_newlabel=[]
    for i in data_label:#获取只有病灶的数据
    value=np.max(cv2.imread(i))
    try:
        if value>0:
            data_newlabel.append(i)
            i_img=i[:-9]+'.tif'
            data_newimg.append(i_img)
    except:
        pass
    #查看结果
    #data_newimg[:5]
    #data_newlabel[:5]
    im=data_newimg[20]
    im=Image.open(im)
    #im.show(im)
    im=data_newlabel[20]
    im=Image.open(im)
    #im.show(im)
    #print("可用数据：")
    #print(len(data_newlabel))
    #print(len(data_newimg))
    #数据转换
    train_transformer=transforms.Compose([
    transforms.Resize((256,256)),
    transforms.ToTensor(),
    ])
    test_transformer=transforms.Compose([
    transforms.Resize((256,256)),
    transforms.ToTensor()
    ])
    class BrainMRIdataset(Dataset):
    def __init__(self, img, mask, transformer):
        self.img = img
        self.mask = mask
        self.transformer = transformer

    def __getitem__(self, index):
        img = self.img[index]
        mask = self.mask[index]

        img_open = Image.open(img)
        img_tensor = self.transformer(img_open)

        mask_open = Image.open(mask)
        mask_tensor = self.transformer(mask_open)

        mask_tensor = torch.squeeze(mask_tensor).type(torch.long)

        return img_tensor, mask_tensor

    def __len__(self):
        return len(self.img)
    s=1000#划分训练集和测试集
    train_img=data_newimg[:s]
    train_label=data_newlabel[:s]
    test_img=data_newimg[s:]
    test_label=data_newlabel[s:]
    #加载数据
    train_data=BrainMRIdataset(train_img,train_label,train_transformer)
    test_data=BrainMRIdataset(test_img,test_label,test_transformer)

    dl_train=DataLoader(train_data,batch_size=4,shuffle=True)
    dl_test=DataLoader(test_data,batch_size=4,shuffle=True)

    img,label=next(iter(dl_train))
    plt.figure(figsize=(12,8))
    for i,(img,label) in enumerate(zip(img[:4],label[:4])):
    img=img.permute(1,2,0).numpy()
    label=label.numpy()
    plt.subplot(2,4,i+1)
    plt.imshow(img)
    plt.subplot(2,4,i+5)
    plt.imshow(label)

    import torch
    import torch.nn as nn


    class Downsample(nn.Module):
    def __init__(self, in_channels, out_channels):
        super(Downsample, self).__init__()
        self.conv_relu = nn.Sequential(
                            nn.Conv2d(in_channels, out_channels,
                                      kernel_size=3, padding=1),
                            nn.ReLU(inplace=True),
                            nn.Conv2d(out_channels, out_channels,
                                      kernel_size=3, padding=1),
                            nn.ReLU(inplace=True)
            )
        self.pool = nn.MaxPool2d(kernel_size=2)
    def forward(self, x, is_pool=True):
        if is_pool:
            x = self.pool(x)
        x = self.conv_relu(x)
        return x


    class Upsample(nn.Module):
    def __init__(self, channels):
        super(Upsample, self).__init__()
        self.conv_relu = nn.Sequential(
            nn.Conv2d(2 * channels, channels,
                      kernel_size=3, padding=1),
            nn.ReLU(inplace=True),
            nn.Conv2d(channels, channels,
                      kernel_size=3, padding=1),
            nn.ReLU(inplace=True)
        )
        self.upconv_relu = nn.Sequential(
            nn.ConvTranspose2d(channels,
                               channels // 2,
                               kernel_size=3,
                               stride=2,
                               padding=1,
                               output_padding=1),
            nn.ReLU(inplace=True)
        )

    def forward(self, x):
        x = self.conv_relu(x)
        x = self.upconv_relu(x)
        return x

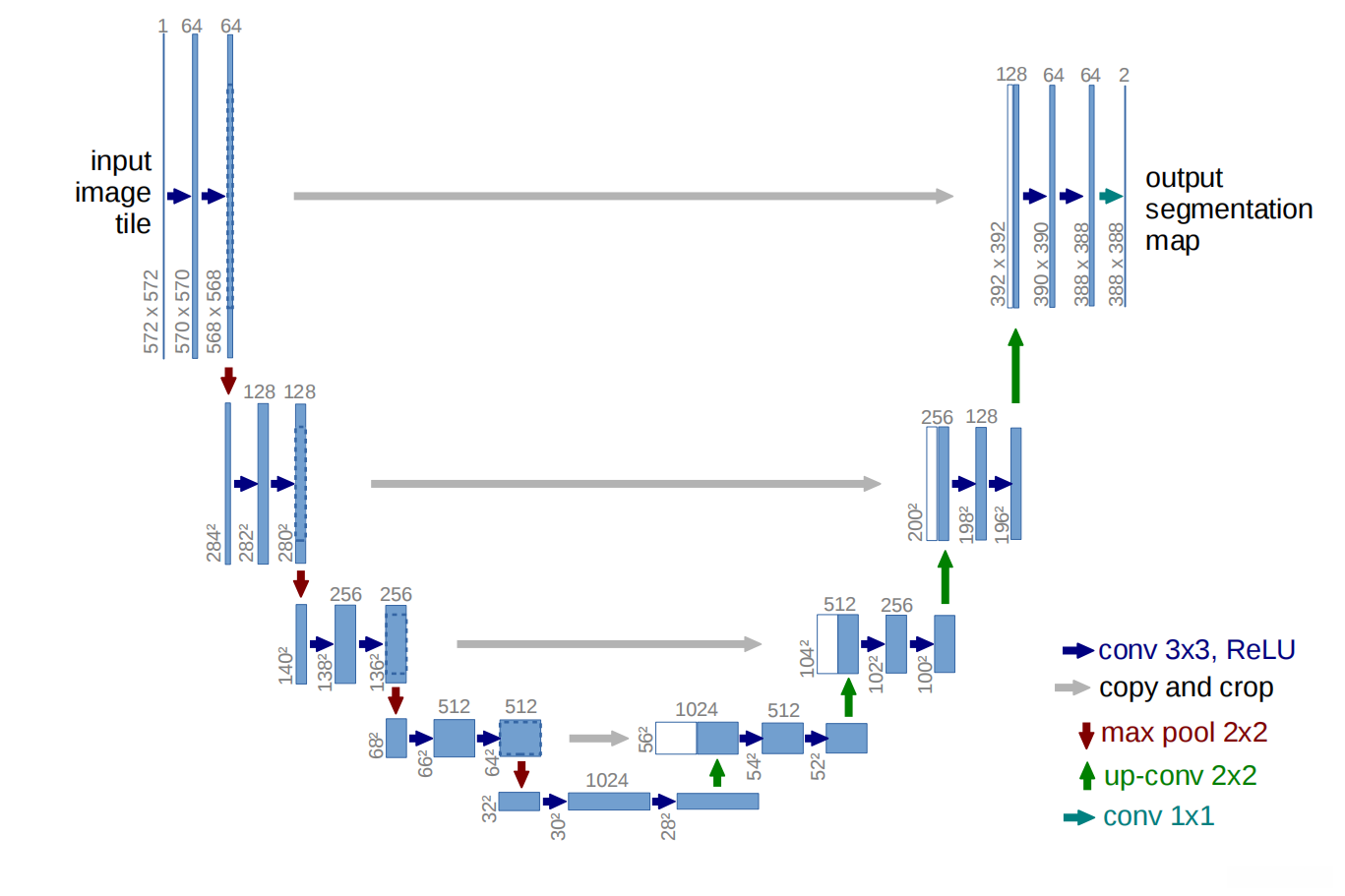

    class Net(nn.Module):
    def __init__(self):
        super(Net, self).__init__()
        self.down1 = Downsample(3, 64)
        self.down2 = Downsample(64, 128)
        self.down3 = Downsample(128, 256)
        self.down4 = Downsample(256, 512)
        self.down5 = Downsample(512, 1024)

        self.up = nn.Sequential(
            nn.ConvTranspose2d(1024,
                               512,
                               kernel_size=3,
                               stride=2,
                               padding=1,
                               output_padding=1),
            nn.ReLU(inplace=True)
        )

        self.up1 = Upsample(512)
        self.up2 = Upsample(256)
        self.up3 = Upsample(128)

        self.conv_2 = Downsample(128, 64)
        self.last = nn.Conv2d(64, 2, kernel_size=1)

    def forward(self, x):
        x1 = self.down1(x, is_pool=False)
        x2 = self.down2(x1)
        x3 = self.down3(x2)
        x4 = self.down4(x3)
        x5 = self.down5(x4)

        x5 = self.up(x5)

        x5 = torch.cat([x4, x5], dim=1)  # 32*32*1024
        x5 = self.up1(x5)  # 64*64*256)
        x5 = torch.cat([x3, x5], dim=1)  # 64*64*512
        x5 = self.up2(x5)  # 128*128*128
        x5 = torch.cat([x2, x5], dim=1)  # 128*128*256
        x5 = self.up3(x5)  # 256*256*64
        x5 = torch.cat([x1, x5], dim=1)  # 256*256*128

        x5 = self.conv_2(x5, is_pool=False)  # 256*256*64

        x5 = self.last(x5)  # 256*256*3
        return x5

    if __name__ == '__main__':
    x = torch.rand([8, 3, 256, 256])
    model = Net()
    y = model(x)

    import torch as t
    import torch.nn as nn
    from tqdm import tqdm  #进度条
    import model
    from dataset import *


    device = t.device("cuda") if t.cuda.is_available() else t.device("cpu")

    train_data=BrainMRIdataset(train_img,train_label,train_transformer)
    test_data=BrainMRIdataset(test_img,test_label,test_transformer)

    dl_train=DataLoader(train_data,batch_size=4,shuffle=True)
    dl_test=DataLoader(test_data,batch_size=4,shuffle=True)

    model = model.Net()
    img,label=next(iter(dl_train))
    model=model.to('cuda')
    img=img.to('cuda')
    pred=model(img)
    label=label.to('cuda')
    loss_fn=nn.CrossEntropyLoss()#交叉熵损失函数
    loss_fn(pred,label)
    optimizer=torch.optim.Adam(model.parameters(),lr=0.0001)
    def train_epoch(epoch, model, trainloader, testloader):
    correct = 0
    total = 0
    running_loss = 0
    epoch_iou = [] #交并比

    net=model.train()
    for x, y in tqdm(testloader):
        x, y = x.to('cuda'), y.to('cuda')
        y_pred = model(x)
        loss = loss_fn(y_pred, y)
        optimizer.zero_grad()
        loss.backward()
        optimizer.step()
        with torch.no_grad():
            y_pred = torch.argmax(y_pred, dim=1)
            correct += (y_pred == y).sum().item()
            total += y.size(0)
            running_loss += loss.item()

            intersection = torch.logical_and(y, y_pred)
            union = torch.logical_or(y, y_pred)
            batch_iou = torch.sum(intersection) / torch.sum(union)
            epoch_iou.append(batch_iou.item())

    epoch_loss = running_loss / len(trainloader.dataset)
    epoch_acc = correct / (total * 256 * 256)

    test_correct = 0
    test_total = 0
    test_running_loss = 0
    epoch_test_iou = []

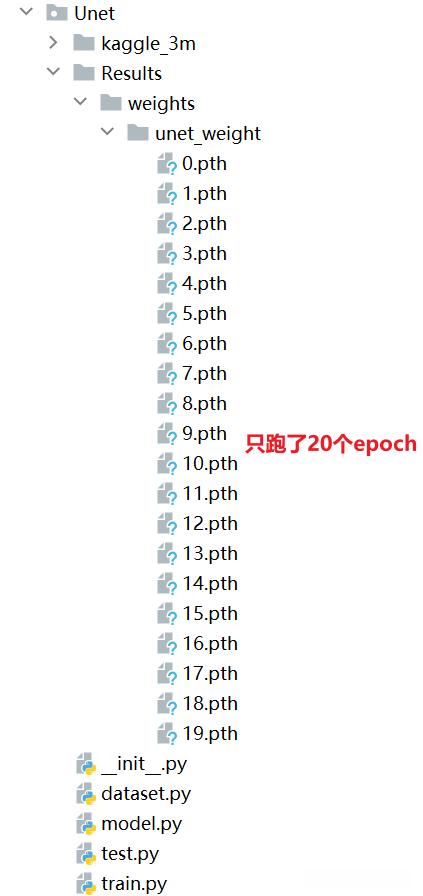

    t.save(net.state_dict(), './Results/weights/unet_weight/{}.pth'.format(epoch))

    model.eval()
    with torch.no_grad():
        for x, y in tqdm(testloader):
            x, y = x.to('cuda'), y.to('cuda')
            y_pred = model(x)
            loss = loss_fn(y_pred, y)
            y_pred = torch.argmax(y_pred, dim=1)
            test_correct += (y_pred == y).sum().item()
            test_total += y.size(0)
            test_running_loss += loss.item()

            intersection = torch.logical_and(y, y_pred)#预测值和真实值之间的交集
            union = torch.logical_or(y, y_pred)#预测值和真实值之间的并集
            batch_iou = torch.sum(intersection) / torch.sum(union)
            epoch_test_iou.append(batch_iou.item())

    epoch_test_loss = test_running_loss / len(testloader.dataset)
    epoch_test_acc = test_correct / (test_total * 256 * 256)#预测正确的值除以总共的像素点

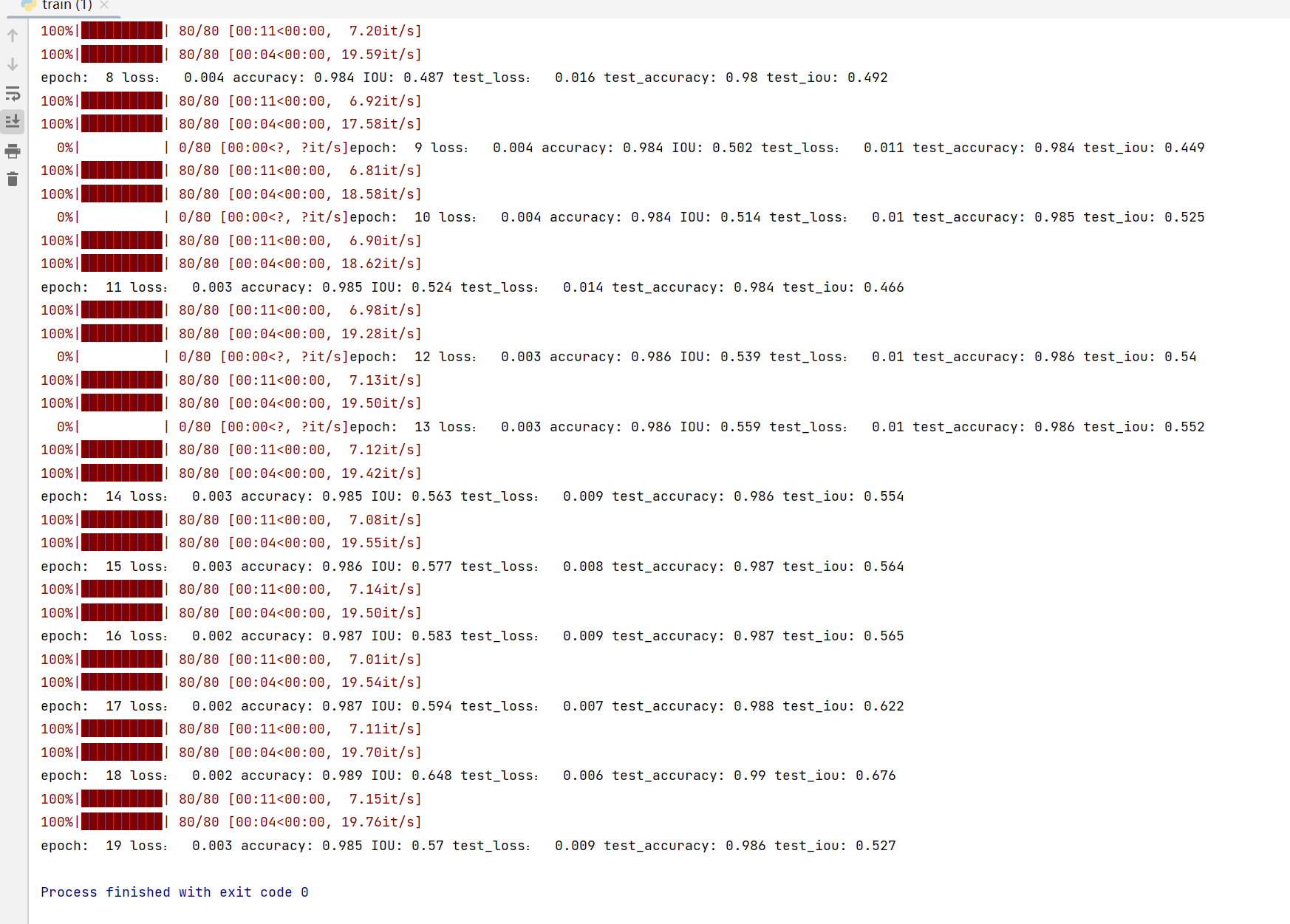

    print('epoch: ', epoch,
          'loss： ', round(epoch_loss, 3),
          'accuracy:', round(epoch_acc, 3),
          'IOU:', round(np.mean(epoch_iou), 3),
          'test_loss： ', round(epoch_test_loss, 3),
          'test_accuracy:', round(epoch_test_acc, 3),
          'test_iou:', round(np.mean(epoch_test_iou), 3)
          )

    return epoch_loss, epoch_acc, epoch_test_loss, epoch_test_acc


    if __name__ == "__main__":
    epochs=20
    for epoch in range(epochs):
        train_epoch(epoch,
                    model,
                    dl_train,
                    dl_test)

    import torch as t
    import torch.nn as nn
    import model
    from dataset import *
    import matplotlib.pyplot as plt

    device = t.device("cuda") if t.cuda.is_available() else t.device("cpu")

    train_data=BrainMRIdataset(train_img,train_label,train_transformer)
    test_data=BrainMRIdataset(test_img,test_label,test_transformer)

    dl_train=DataLoader(train_data,batch_size=4,shuffle=True)
    dl_test=DataLoader(test_data,batch_size=4,shuffle=True)

    model = model.Net()
    img,label=next(iter(dl_train))
    model=model.to('cuda')
    img=img.to('cuda')
    pred=model(img)
    label=label.to('cuda')
    loss_fn=nn.CrossEntropyLoss()
    loss_fn(pred,label)
    optimizer=torch.optim.Adam(model.parameters(),lr=0.0001)

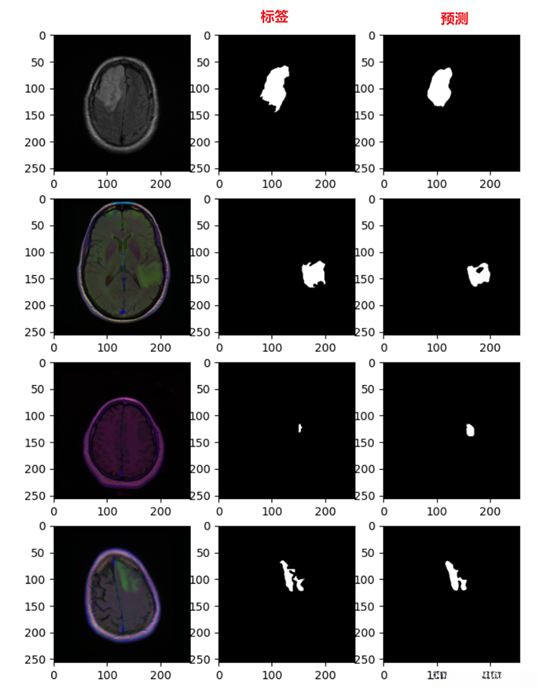

    def test():
    image, mask = next(iter(dl_test))
    image=image.to('cuda')
    net = model.eval()
    net.to(device)
    net.load_state_dict(t.load("./Results/weights/unet_weight/18.pth"))
    pred_mask = model(image)
    pred_mask=pred_mask
    mask=torch.squeeze(mask)
    pred_mask=pred_mask.cpu()
    num=4
    plt.figure(figsize=(10, 10))
    for i in range(num):
        plt.subplot(num, 4, i*num+1)
        plt.imshow(image[i].permute(1,2,0).cpu().numpy())
        plt.subplot(num, 4, i*num+2)
        plt.imshow(mask[i].cpu().numpy(),cmap='gray')#标签
        plt.subplot(num, 4, i*num+3)
        plt.imshow(torch.argmax(pred_mask[i].permute(1,2,0), axis=-1).detach().numpy(),cmap='gray')#预测
    plt.show()


    if __name__ == "__main__":
    test()
