GPS卫星定位—python实现

 # coding:utf-8


 import os

 import math as m

 with open('brdm0320.22p','r') as f:

     data=f.readlines()

     # print(data)

     f.close()

 #文件时间不同可取消此处注释

 # def o_data_line():

 #     for i in range(len(data)):

 #         if data[i].find('END OF HEADER') != -1:

 #             o_data_line = i + 1

 #     return o_data_line

 # print(o_data_line())

 ff=[]

 ff=data[207:3359]

 # print(ff)



 file_write_obj = open("GPS_data.txt", 'w')   # 新文件写入GPS_data

 for i in range(3359-207) :

     file_write_obj.write(ff[i])   # 逐行写入

     # file_write_obj.write('\n')

 file_write_obj.close()

 print("保存文件成功")



 #文件读取

 with open('GPS_data.txt','r') as G:



     GPS_data=G.readlines()

     f.close()

     # print(GPS_data)

 data_num=int(len(GPS_data)/8)         #数据组数

 # print(data_num)





 PRN = []

 year = []

 day=[]

 month=[]

 hour = []

 minute=[]

 second=[]

 S=[]

 S_s=[]

 S_ss=[]

 IODE=[]

 C_rs=[]

 n=[]

 mo=[]

 C_uc=[]

 e=[]

 C_us=[]

 sqrt_A=[]

 TEO=[]

 C_ic=[]

 C_is=[]

 OMEGA=[]

 I_0=[]

 C_rc=[]

 w=[]

 OMEGA_DOT=[]

 IDOT=[]

 L2_code = []

 PS_week_num=[]

 L2_P_code=[]

 TGD=[]

 IODC=[]

 for j in range(data_num):



     for i in range(8):

     data_l = GPS_data[8 * j +i]

     if i==0:

         # 卫星PRN号



         PRN.append(data_l[0:3])



         # 历元 TIME



         TIME=data_l[4:23]



         #year = []

         year.append(int(TIME[0:4]))

         #month=[]

         month.append(int(TIME[5:7]))

         #day=[]

         day.append(int(TIME[8:10]))

         #hour = []

         hour.append(int(TIME[11:13]))

         #minute=[]

         minute.append(int(TIME[14:16]))

         #second=[]

         second.append(float(TIME[17:19]))



         # print(TIME)

         # 卫星钟偏差(s)

         #S=[]

         S.append(float(data_l[23:42]))





        #卫星钟漂(s/s)

         #S_s=[]

         S_s.append(float(data_l[42:62]))

         # print(type(S_s))

         # print(S_s)



     # 卫星钟漂移速度(s / s * s)

         #S_ss=[]

         S_ss.append(float(data_l[62:81]))



     elif i==1:

         #IODE=[]

         IODE.append(float(data_l[4:23]))

         #C_rs=[]

         C_rs.append(float(data_l[23:42]))

         #n=[]

         n.append(float(data_l[43:61]))

         #mo=[]

         mo.append(float(data_l[61:81]))

     elif i==2:

         #C_uc=[]

         C_uc.append(float(data_l[4:23]))

         # print(C_uc)

         # print(float(row[4:23]))

         #e=[]

         e.append(float(data_l[23:42]))

         #C_us=[]

         C_us.append(float(data_l[42:62]))

         #sqrt_A=[]

         sqrt_A.append(float(data_l[62:81]))

     elif i == 3:

         #TEO=[]

         TEO.append(float(data_l[4:23]))

         #C_ic=[]

         C_ic.append(float(data_l[23:42]))

         #OMEGA=[]

         OMEGA.append(float(data_l[42:61]))

         #C_is=[]

         C_is.append(float(data_l[62:81]))

     elif i== 4:

         #I_0=[]

         I_0.append(float(data_l[4:23]))

         #C_rc=[]

         C_rc.append(float(data_l[23:42]))

         #w=[]

         w.append(float(data_l[43:61]))

         #OMEGA_DOT=[]

         OMEGA_DOT.append(float(data_l[62:81]))

     elif i == 5:

         #IDOT=[]

         IDOT .append(float(data_l[4:23]))

         #L2_code=[]

         L2_code .append(float(data_l[23:42]))

         #PS_week_num=[]

         PS_week_num .append(float(data_l[42:62]))

         #L2_P_code=[]

         L2_P_code .append(float(data_l[62:81]))

     elif i == 6:

         # 卫星精度(m)=2

         # 卫星健康状态=0

         #TGD=[]

         TGD .append(float(data_l[42:62]))

         #IODC=[]

         IODC .append(float(data_l[62:81]))

         # print(IODC)

     elif i==7:

         pass

 # print(PRN, S,S_s,S_ss,

 #       IODE,C_rs,n,mo, C_uc,

 #       e, C_us, sqrt_A,

 #       TEO, C_ic, OMEGA,C_is,

 #       I_0, C_rc, w, OMEGA_DOT,

 #       IDOT,L2_code,PS_week_num,L2_P_code,

 #       TGD,IODC)





 def CulLocation(PRN, year, month, day, hour, minute, second, S, S_s, S_ss, IDOT, C_rs, n, mo, C_uc, e, C_us, sqrt_A,

             TEO, C_ic, OMEGA, C_is, I_0, C_rc, w, OMEGA_DOT,t1):





     # 1.计算卫星运行平均角速度 GM:WGS84下的引力常数 =3.986005e14，a:长半径

     GM = 398600500000000

     n_0 = m.sqrt(GM) / m.pow(sqrt_A, 3)

     n = n_0 + n



     # 2.计算归化时间t_k 计算t时刻的卫星位置  UT：世界时 此处以小时为单位

     UT = hour + (minute / 60.0) + (second / 3600);



     if month <= 2:

     year = year - 1

     month = month + 12  # 1，2月视为前一年13，14月



     # 需要将当前需计算的时刻先转换到儒略日再转换到GPS时间

     JD = (365.25 * year) + int(30.6001 * (month + 1)) + day + UT / 24 + 1720981.5;

     WN = int((JD - 2444244.5) / 7);  # WN:GPS_week number 目标时刻的GPS周

     t_oc = (JD - 2444244.5 - 7.0 * WN) * 24 * 3600.0;  # t_GPS:目标时刻的GPS秒



     # 对观测时刻t1进行钟差改正,注意：t1应是由接收机接收到的时间

     if t1 is None:

     t_k = 0

     else:

     δt = a_0 + a_1(t1 - t_oc) + a_2(t1 - t_oc) ^ 2

     t = t1 - δt

     t_k = t - TEO



     if t_k > 302400:

     t_k -= 604800

     else :

     t_k += 604800

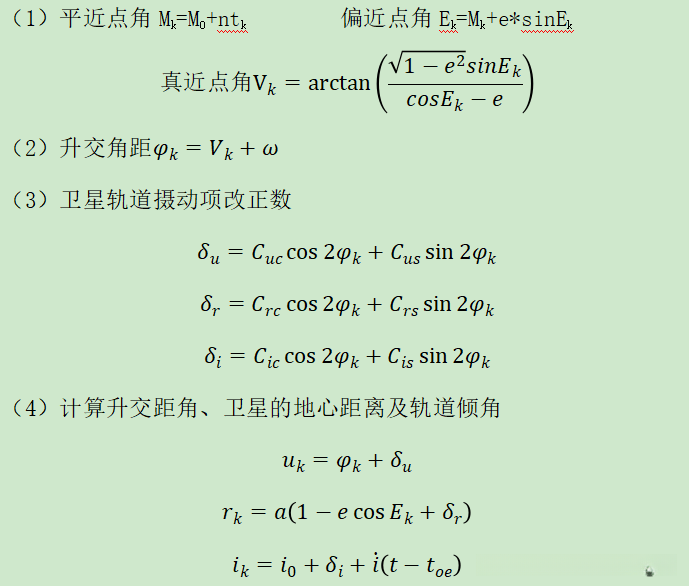

     # 3.平近点角计算M_k = M_0+n*t_k

     # print(mo)

     M_k = mo + n * t_k  # 实际应该是乘t_k，但是没有接收机的观测时间，所以为了练手设t_k=0



     # 4.偏近点角计算 E_k  (迭代计算) E_k = M_k + e*sin(E_k)

     E = 0;

     E1 = 1;

     count = 0;

     while abs(E1 - E) > 1e-10:

     count = count + 1

     E1 = E;

     E = M_k + e * m.sin(E);

     if count > 1e8:

         print("计算偏近点角时未收敛！")

         break



         # 5.计算卫星的真近点角

     V_k = m.atan((m.sqrt(1 - e * e) * m.sin(E)) / (m.cos(E) - e));



     # 6.计算升交距角 u_0(φ_k), ω:卫星电文给出的近地点角距

     u_0 = V_k + w



     # 7.摄动改正项 δu、δr、δi :升交距角u、卫星矢径r和轨道倾角i的摄动量

     δu = C_uc * m.cos(2 * u_0) + C_us * m.sin(2 * u_0)

     δr = C_rc * m.cos(2 * u_0) + C_rs * m.sin(2 * u_0)

     δi = C_ic * m.cos(2 * u_0) + C_is * m.sin(2 * u_0)



     # 8.计算经过摄动改正的升交距角u_k、卫星矢径r_k和轨道倾角 i_k

     u = u_0 + δu

     r = m.pow(sqrt_A, 2) * (1 - e * m.cos(E)) + δr

     i = I_0 + δi + IDOT * (t_k);  # 实际乘t_k=t-t_oe

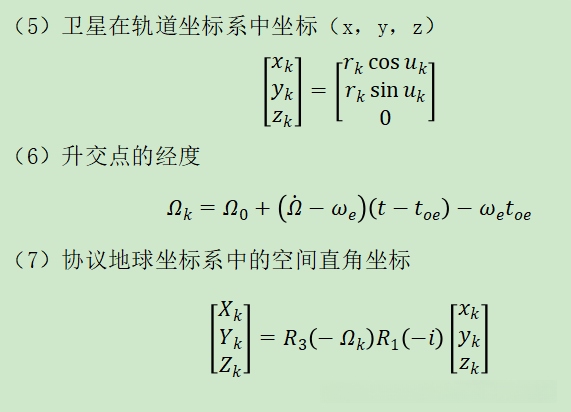

     # 9.计算卫星在轨道平面坐标系的坐标,卫星在轨道平面直角坐标系（X轴指向升交点）中的坐标为：

     x_k = r * m.cos(u)

     y_k = r * m.sin(u)



     # 10.观测时刻升交点经度Ω_k的计算，升交点经度Ω_k等于观测时刻升交点赤经Ω与格林尼治恒星时GAST之差  Ω_k=Ω_0+(ω_DOT-omega_e)*t_k-omega_e*t_oe

     omega_e = 7.292115e-5  # 地球自转角速度

     OMEGA_k = OMEGA + (OMEGA_DOT - omega_e) * t_k - omega_e * TEO;  # 星历中给出的Omega即为Omega_o=Omega_t_oe-GAST_w



     # 11.计算卫星在地固系中的直角坐标l

     X_k = x_k * m.cos(OMEGA_k) - y_k * m.cos(i) * m.sin(OMEGA_k)

     Y_k = x_k * m.sin(OMEGA_k) + y_k * m.cos(i) * m.cos(OMEGA_k)

     Z_k = y_k * m.sin(i)



     # 12.计算卫星在协议地球坐标系中的坐标，考虑级移

     # [X,Y,Z]=[[1,0,X_P],[0,1,-Y_P],[-X_p,Y_P,1]]*[X_k,Y_k,Z_k]

     # XYZ=[X,Y,Z]



     if month > 12:  # 恢复历元

     year = year + 1

     month = month - 12



     print("历元：", year, "年", month, "月", day, "日", hour, "时", minute, "分", second, "秒", "\n卫星PRN号:", PRN, "\n平均角速度:", n,

       "\n卫星平近点角:", M_k, "\n偏近点角:", E, "\n真近点角:", V_k, "\n升交距角:", u_0, "\n摄动改正项:", δu, δr, δi, "\n经摄动改正后的升交距角、卫星矢径和轨道倾角:", u, r,

       i, "\n轨道平面坐标X,Y:", x_k, y_k, "\n观测时刻升交点经度:", OMEGA_k, "\n地固直角坐标系X:", X_k, "\n地固直角坐标系Y:", Y_k, "\n地固直角坐标系Z:", Z_k,'\n地固坐标系的位置')





     with open('GPS_XYZ.txt', 'a') as P:

     P.write(str(X_k) )

     P.write('   ')

     P.write(str(Y_k) )

     P.write('   ')

     P.write(str(Z_k) )

     P.write('\n')

 if __name__ == '__main__':



     with open("GPS_XYZ.txt", 'r+') as file:#清空文件

     file.truncate(0)

     for i in range(data_num-1):

         t1=None

         CulLocation(PRN[i], year[i], month[i], day[i], hour[i], minute[i], second[i], S[i], S_s[i], S_ss[i], IDOT[i], C_rs[i], n[i], mo[i], C_uc[i], e[i], C_us[i],

                 sqrt_A[i], TEO[i],

                 C_ic[i], OMEGA[i], C_is[i], I_0[i], C_rc[i], w[i], OMEGA_DOT[i],t1)
