【Scikit-Learn】SVM检测乳腺癌
发布时间
阅读量：
阅读量
分别使用SVC类的高斯核函数及多项式核函数对乳腺癌数据集进行分类，并绘制学习曲线。
最后使用多项式特征，并使用LinearSVC进行处理。（针对多项式特征，LinearSVC类比SCV类速度更快）。
1. 载入数据
%matplotlib inline
import matplotlib.pyplot as plt
import numpy as np
# 载入数据
from sklearn.datasets import load_breast_cancer
cancer = load_breast_cancer()
X = cancer.data
y = cancer.target
print('data shape: {0}; no. positive: {1}; no. negative: {2}'.format(
X.shape, y[y==1].shape[0], y[y==0].shape[0]))
'''
data shape: (569, 30); no. positive: 357; no. negative: 212
'''
from sklearn.model_selection import train_test_split
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2)
代码解释2. 使用高斯核函数
由于高斯核函数太复杂，容易造成过拟合，模型容易过拟合。
from sklearn.svm import SVC
clf = SVC(C=1.0, kernel='rbf', gamma=0.1)
clf.fit(X_train, y_train)
train_score = clf.score(X_train, y_train)
test_score = clf.score(X_test, y_test)
print('train score: {0}; test score: {1}'.format(train_score, test_score))
'''
train score: 1.0; test score: 0.526315789474
'''

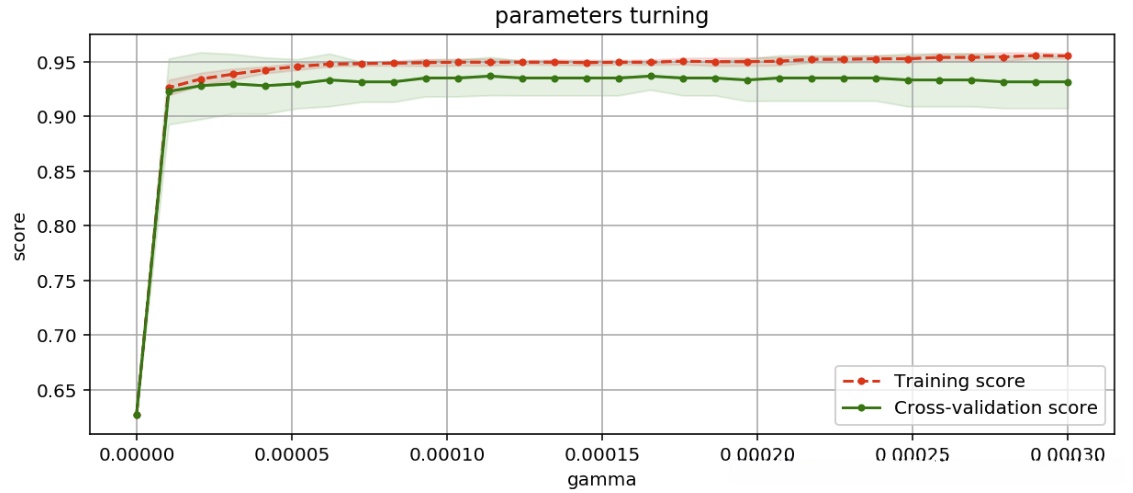

代码解释使用GridSearchCV类自动选择最优的gamma值
from common.utils import plot_param_curve
from sklearn.model_selection import GridSearchCV
gammas = np.linspace(0, 0.0003, 30)
param_grid = {'gamma': gammas}
clf = GridSearchCV(SVC(), param_grid, cv=5)
clf.fit(X, y)
print("best param: {0}\nbest score: {1}".format(clf.best_params_,
clf.best_score_))
plt.figure(figsize=(10, 4), dpi=144)
plot_param_curve(plt, gammas, clf.cv_results_, xlabel='gamma')
'''
best param: {'gamma': 0.00011379310344827585}
best score: 0.936731107206
'''
代码解释

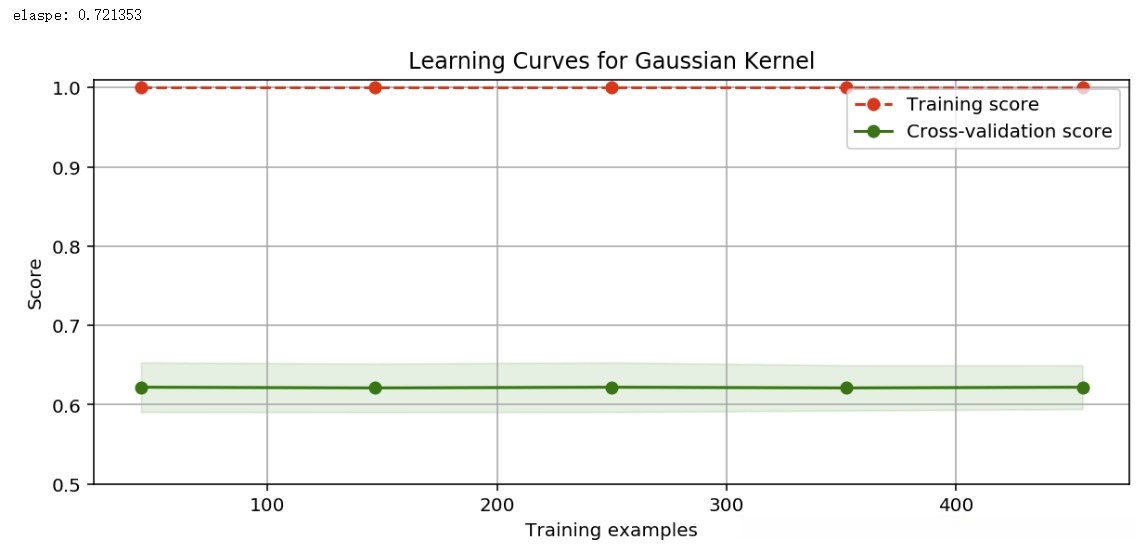

绘画gamma=0.01时的学习曲线
import time
from common.utils import plot_learning_curve
from sklearn.model_selection import ShuffleSplit
cv = ShuffleSplit(n_splits=10, test_size=0.2, random_state=0)
title = 'Learning Curves for Gaussian Kernel'
start = time.clock()
plt.figure(figsize=(10, 4), dpi=144)
plot_learning_curve(plt, SVC(C=1.0, kernel='rbf', gamma=0.01),
title, X, y, ylim=(0.5, 1.01), cv=cv)
print('elaspe: {0:.6f}'.format(time.clock()-start))
代码解释
3. 使用多项式核函数
from sklearn.svm import SVC
clf = SVC(C=1.0, kernel='poly', degree=2) # 使用二阶多项式核函数
clf.fit(X_train, y_train)
train_score = clf.score(X_train, y_train)
test_score = clf.score(X_test, y_test)
print('train score: {0}; test score: {1}'.format(train_score, test_score))
'''
train score: 0.978021978022; test score: 0.947368421053
'''

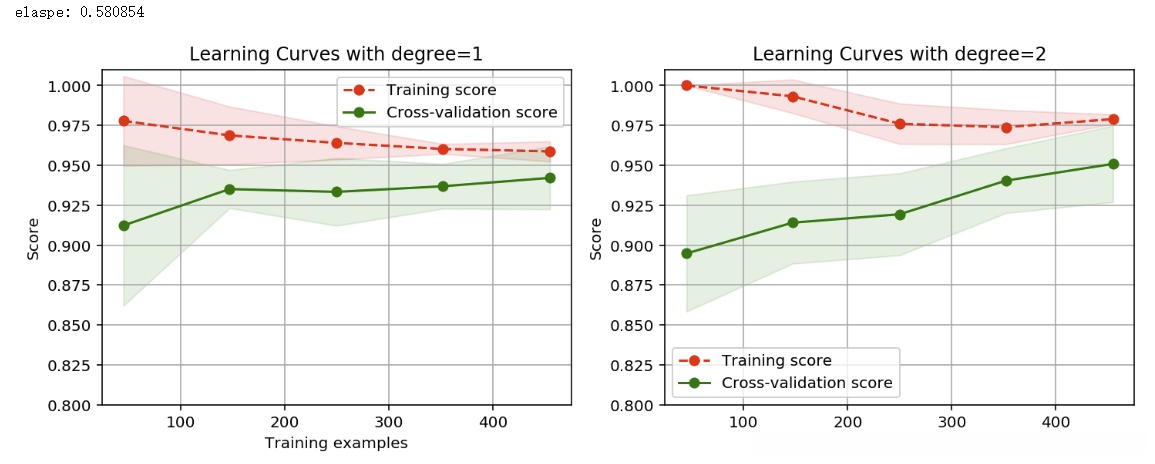

代码解释画出1、2阶多项式核函数SVM的学习曲线
import time
from common.utils import plot_learning_curve
from sklearn.model_selection import ShuffleSplit
cv = ShuffleSplit(n_splits=5, test_size=0.2, random_state=0)
title = 'Learning Curves with degree={0}'
degrees = [1, 2]
start = time.clock()
plt.figure(figsize=(12, 4), dpi=144)
for i in range(len(degrees)):
plt.subplot(1, len(degrees), i + 1)
plot_learning_curve(plt, SVC(C=1.0, kernel='poly', degree=degrees[i]),
title.format(degrees[i]), X, y, ylim=(0.8, 1.01), cv=cv, n_jobs=4)
print('elaspe: {0:.6f}'.format(time.clock()-start))
代码解释
4. 使用多项式特征和LinearSVC模型
LinearSVC：与参数kernel =’linear’的SVC类似，但是以liblinear而不是libsvm的形式实现，因此它在惩罚和损失函数的选择方面具有更大的灵活性，并且应该更好地扩展到大量样本。
from sklearn.svm import LinearSVC
from sklearn.preprocessing import PolynomialFeatures
from sklearn.preprocessing import MinMaxScaler
from sklearn.pipeline import Pipeline
def create_model(degree=2, **kwarg):
polynomial_features = PolynomialFeatures(degree=degree,
include_bias=False)
scaler = MinMaxScaler()
linear_svc = LinearSVC(**kwarg)
pipeline = Pipeline([("polynomial_features", polynomial_features),
("scaler", scaler),
("linear_svc", linear_svc)])
return pipeline
clf = create_model(penalty='l1', dual=False)
clf.fit(X_train, y_train)
train_score = clf.score(X_train, y_train)
test_score = clf.score(X_test, y_test)
print('train score: {0}; test score: {1}'.format(train_score, test_score))
'''
train score: 0.984615384615; test score: 0.991228070175
'''

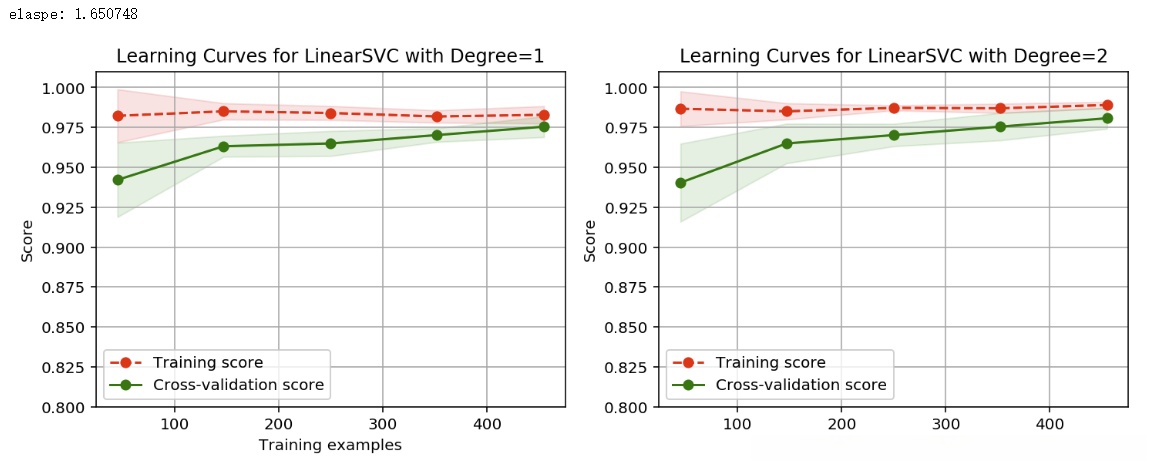

代码解释使用1、2阶多项式特征训练LinearSVC模型，并画出学习曲线。
import time
from common.utils import plot_learning_curve
from sklearn.model_selection import ShuffleSplit
cv = ShuffleSplit(n_splits=5, test_size=0.2, random_state=0)
title = 'Learning Curves for LinearSVC with Degree={0}'
degrees = [1, 2]
start = time.clock()
plt.figure(figsize=(12, 4), dpi=144)
for i in range(len(degrees)):
plt.subplot(1, len(degrees), i + 1)
plot_learning_curve(plt, create_model(penalty='l1', dual=False, degree=degrees[i]),
title.format(degrees[i]), X, y, ylim=(0.8, 1.01), cv=cv)
print('elaspe: {0:.6f}'.format(time.clock()-start))
代码解释
