Unity API UGUI监听事件

阅读量:

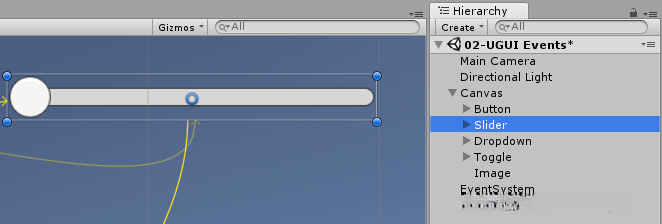

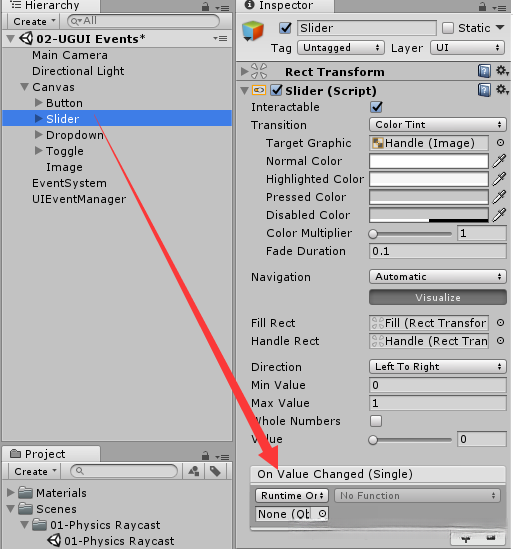

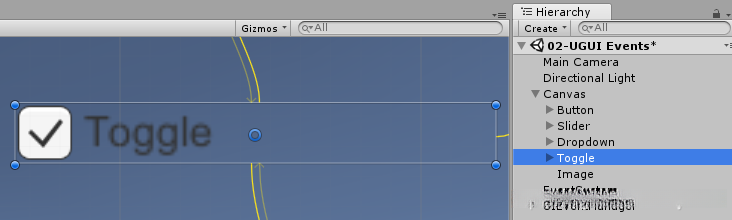

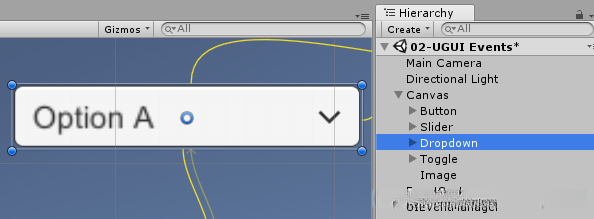

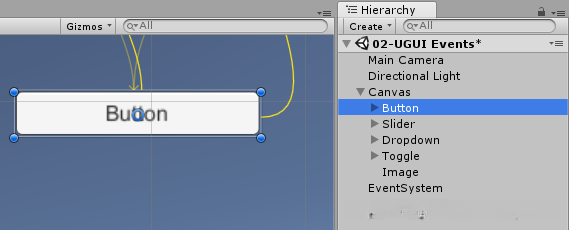

通过拖拽的方式监听UGUI的事件

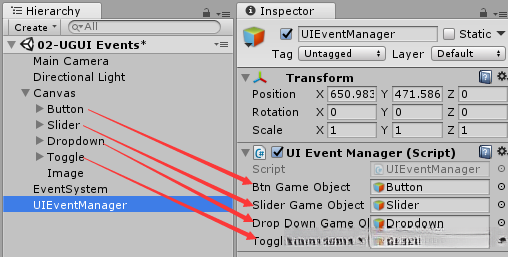

通过代码添加对UGUI控件的事件监听

复制代码
 using System;


 using UnityEngine;

 using UnityEngine.UI;



 public class UIEventManager : MonoBehaviour {



     public GameObject btnGameObject;

     public GameObject sliderGameObject;

     public GameObject dropDownGameObject;

     public GameObject toggleGameObject;



 	// Use this for initialization

 	void Start () {

     btnGameObject.GetComponent<Button>().onClick.AddListener(this.ButtonOnClick);//添加按钮的监听事件

     sliderGameObject.GetComponent<Slider>().onValueChanged.AddListener(this.OnSliderChanged);//添加滑动条的监听事件

     dropDownGameObject.GetComponent<Dropdown>().onValueChanged.AddListener(this.OnDropDownChanged);//添加下拉条的监听事件

     toggleGameObject.GetComponent<Toggle>().onValueChanged.AddListener(this.OnToggleChanged);//添加单选框的监听事件

     }

     //按钮事件

     void ButtonOnClick()

     {

     Debug.Log("ButtonOnClick");

     }

     //滑动条事件

     void OnSliderChanged(float value)

     {

     Debug.Log("SliderChanged:" + value);

     }

     //下拉条事件

     void OnDropDownChanged(Int32 value)

     {

     Debug.Log("DropDownChanged:" + value);

     }

     //单选框事件

     void OnToggleChanged(bool value)

     {

     Debug.Log("ToggleChanged:" + value);

     }



     // Update is called once per frame

     void Update () {



 	}

 }

跟鼠标相关的事件接口的实现

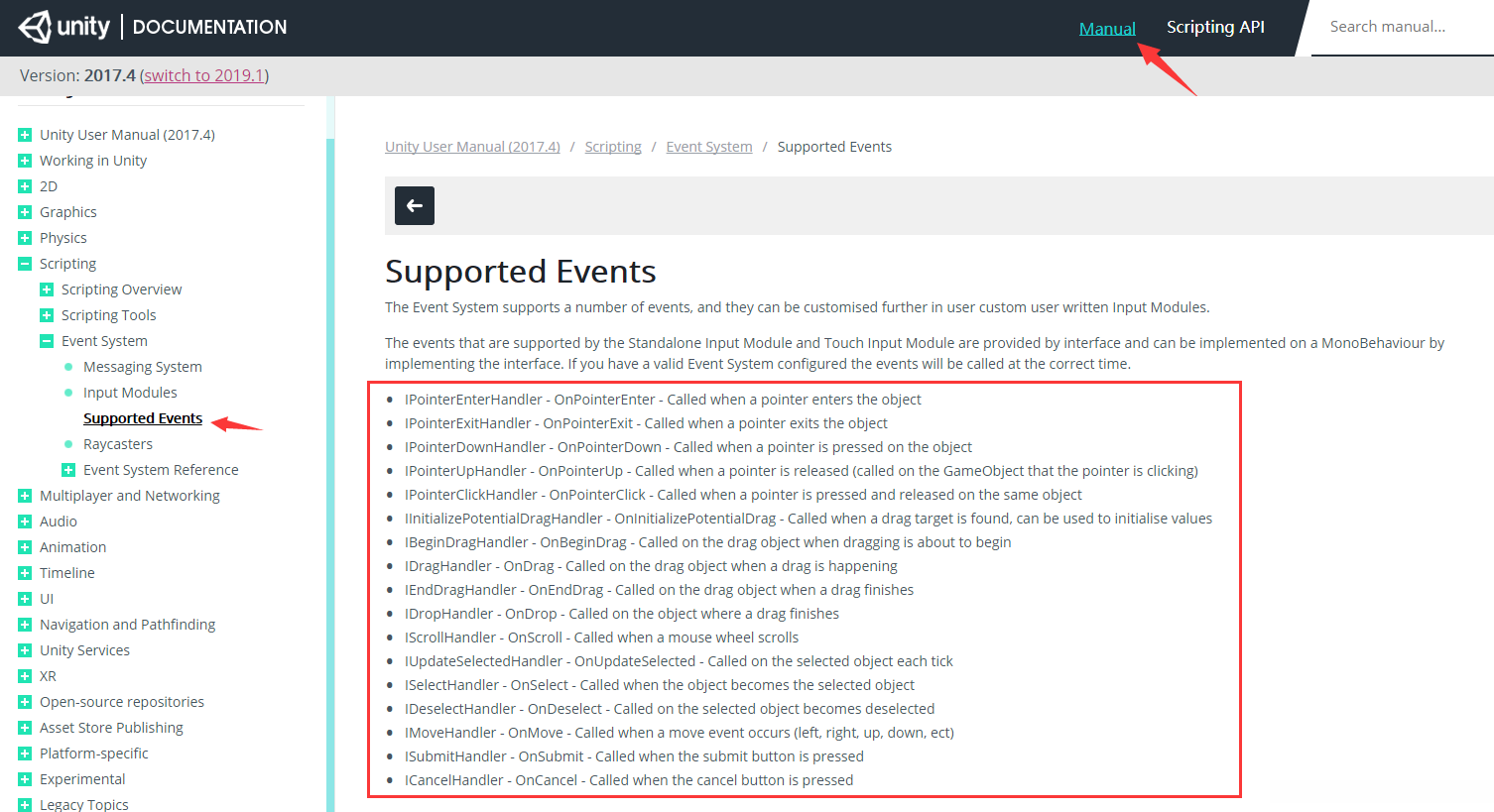

查看相关接口

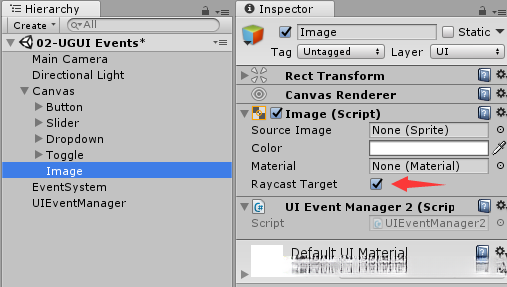

必须勾上此选项。

IPointerDownHandler 鼠标按下
IPointerClickHandler 鼠标点击
IPointerUpHandler 鼠标抬起
IPointerEnterHandler 鼠标移上
IPointerExitHandler 鼠标移出
复制代码
 using System.Collections;


 using System.Collections.Generic;

 using UnityEngine;

 using UnityEngine.UI;

 using UnityEngine.EventSystems;

 using System;

 //interface



 public class UIEventManager2 : MonoBehaviour

     , IPointerDownHandler//鼠标按下

     , IPointerClickHandler//鼠标点击

     , IPointerUpHandler//鼠标抬起

     , IPointerEnterHandler//鼠标移上

     , IPointerExitHandler//鼠标移出{



     public void OnPointerClick(PointerEventData eventData)

     {

     Debug.Log("OnPointerClick");

     }



     public void OnPointerDown(PointerEventData eventData)

     {

     Debug.Log("OnPointerDown");

     }



     public void OnPointerEnter(PointerEventData eventData)

     {

     Debug.Log("OnPointerEnter");

     }



     public void OnPointerExit(PointerEventData eventData)

     {

     Debug.Log("OnPointerExit");

     }



     public void OnPointerUp(PointerEventData eventData)

     {

     Debug.Log("OnPointerUp");

     }

 }

跟拖拽相关的事件接口的实现

IBeginDragHandler 开始拖拽
IDragHandler 拖拽中
IEndDragHandler 拖拽结束
IDropHandler 拖拽完成后在对象上抬起鼠标时触发
复制代码
 using System.Collections;


 using System.Collections.Generic;

 using UnityEngine;

 using UnityEngine.UI;

 using UnityEngine.EventSystems;

 using System;

 //interface



 public class UIEventManager2 : MonoBehaviour

     ,IBeginDragHandler//开始拖拽

     ,IDragHandler //拖拽中

     ,IEndDragHandler //拖拽结束

     ,IDropHandler //拖拽完成后在对象上抬起鼠标时触发

 {

     public void OnBeginDrag(PointerEventData eventData)

     {

     Debug.Log("OnBeginDrag");

     }



     public void OnDrag(PointerEventData eventData)

     {

     Debug.Log("OnDrag");

     }



     public void OnDrop(PointerEventData eventData)

     {

     Debug.Log("OnDrop");

     }



     public void OnEndDrag(PointerEventData eventData)

     {

     Debug.Log("OnEndDrag");

     }

 }
