【行人检测】检测图片中的行人

 // Hog_SVM_Pedestrian.cpp: 定义控制台应用程序的入口点。


 //图片中的行人检测



 #include "stdafx.h"

 #include<opencv2/core/core.hpp>

 #include<opencv2/highgui/highgui.hpp>

 #include<opencv2/imgproc/imgproc.hpp>

 #include<opencv2/objdetect.hpp> // include hog

 #include<iostream>



 using namespace std;

 using namespace cv;







 void detectAndDraw(HOGDescriptor &hog,Mat &img)

 {

 	vector<Rect> found, found_filtered;

 	double t = (double)getTickCount();



 	hog.detectMultiScale(img, found, 0, Size(8, 8), Size(32, 32), 1.05, 2);//多尺度检测目标,返回的矩形从大到小排列

 	t = (double)getTickCount() - t;

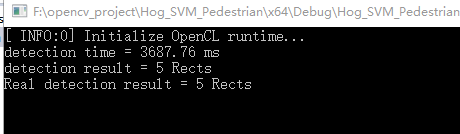

 	cout << "detection time = " << (t*1000. / cv::getTickFrequency()) << " ms" << endl;

 	cout << "detection result = " << found.size() << " Rects" << endl;



 	for (size_t i = 0; i < found.size(); i++)

 	{

 		Rect r = found[i];



 		size_t j;

 		// Do not add small detections inside a bigger detection. 如果有嵌套的话,则取外面最大的那个矩形框放入found_filtered中

 		for (j = 0; j < found.size(); j++)

 			if (j != i && (r & found[j]) == r)

 				break;



 		if (j == found.size())

 			found_filtered.push_back(r);

 	}



 	cout << "Real detection result = " << found_filtered.size() << " Rects" << endl;

 	for (size_t i = 0; i < found_filtered.size(); i++)

 	{

 		Rect r = found_filtered[i];



 		// The HOG detector returns slightly larger rectangles than the real objects,

 		// hog检测结果返回的矩形比实际的要大一些

 		// so we slightly shrink the rectangles to get a nicer output.

 		// r.x += cvRound(r.width*0.1);

 		// r.width = cvRound(r.width*0.8);

 		// r.y += cvRound(r.height*0.07);

 		// r.height = cvRound(r.height*0.8);

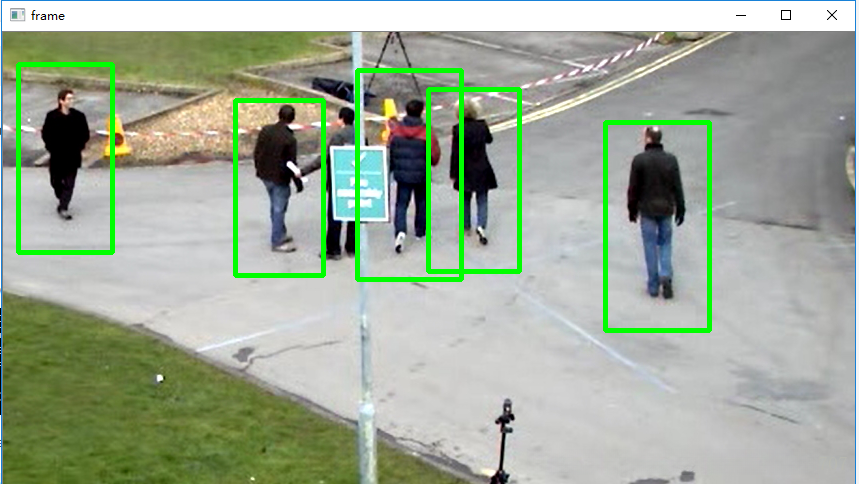

 		rectangle(img, r.tl(), r.br(), cv::Scalar(0, 255, 0), 3);

 	}



 }







 int main()

 {

 	Mat img = imread("pedestrian.jpg");

 	HOGDescriptor hog;

 	hog.setSVMDetector(HOGDescriptor::getDefaultPeopleDetector() ); //getDefaultPeopleDetector():

 							//Returns coefficients of the classifier trained for people detection (for 64x128 windows).								//Returns coefficients of the classifier trained for people detection (for 64x128 windows).

 	detectAndDraw(hog, img);





 	namedWindow("frame");

 	imshow("frame", img);

 	while( waitKey(10) != 27) ;

 	destroyWindow("show");



     return 0;

 }





 /**@brief Sets coefficients for the linear SVM classifier.设置线性SVM分类器的系数


     @param _svmdetector coefficients for the linear SVM classifier.

     */

     CV_WRAP virtual void setSVMDetector(InputArray _svmdetector);





  /** @brief Returns coefficients of the classifier trained for people detection (for 64x128 windows).


 	返回 已训练好的用于行人检测 的分类器的系数

     */

     CV_WRAP static std::vector<float> getDefaultPeopleDetector();





  /** @brief Detects objects of different sizes in the input image. The detected objects are returned as a list


     of rectangles.多尺度检测目标，检测到的目标以矩形list返回

     @param img： Matrix of the type CV_8U（单通道） or CV_8UC3（三通道） containing an image where objects are detected.

     @param foundLocations ：Vector of rectangles where each rectangle contains the detected object.

     @param hitThreshold（击中率）： Threshold for the distance between features and SVM classifying plane.

     Usually it is 0 and should be specfied in the detector coefficients (as the last free coefficient).

     But if the free coefficient is omitted (which is allowed), you can specify it manually here.

     @param winStride(窗口滑动步长 = cell大小)： Window stride. It must be a multiple of block stride.

     @param padding（填充）： Padding

     @param scale（检测窗口增大的系数）： Coefficient of the detection window increase.

     @param finalThreshold（最终的阈值）： Final threshold

     @param useMeanshiftGrouping(使用平均移位分组): indicates grouping algorithm

     */

     virtual void detectMultiScale(InputArray img, CV_OUT std::vector<Rect>& foundLocations,

                               double hitThreshold = 0, Size winStride = Size(),

                               Size padding = Size(), double scale = 1.05,

                               double finalThreshold = 2.0, bool useMeanshiftGrouping = false) const;
