聚类算法之K-均值聚类
发布时间
阅读量：
阅读量

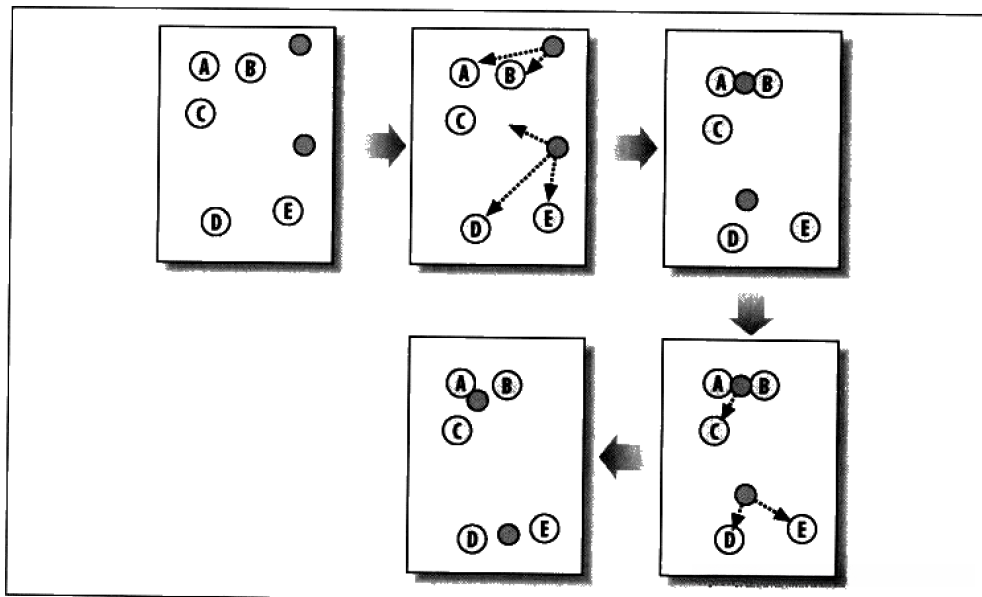

先看一张图（来自集体智慧编程）
该算法的思路相对简单：即首先随机设定k个基准点；然后遍历原图的所有顶点，并将每个顶点归类到这k个基准点之一；最后并重新计算这k个基准点的位置（通常取其中心位置）。
这个算法是应对数据量过大导致层次聚类效率低而被开发出来的技术。 除此之外, 我不是很清楚它的其他优点。 该算法能够灵活地调节参数k值, 使用起来非常便捷。 层次聚类是一种自动化的技术。
代码中用到了上一篇文章所提供的数据
import os
import sys
import chardet
from math import sqrt
from PIL import Image, ImageDraw
import random
#coding:utf-8
def readFile(fileName):
lines = [line for line in file(fileName)]
colNames = lines[0].strip().split('\t')[1:]
rowNames = []
data = []
for line in lines[1:]:
p = line.strip().split('\t')
rowNames.append(p[0])
data.append([float(x) for x in p[1:]])
return rowNames, colNames, data
def pearsonBeta(v1, v2):
sum1 = sum(v1)
sum2 = sum(v2)
sum1Sq = sum([pow(v, 2) for v in v1])
sum2Sq = sum([pow(v, 2) for v in v2])
pSum = sum([v1[i] * v2[i] for i in range(len(v1))])
nums = pSum - (sum1 * sum2 / len(v1))
den = sqrt((sum1Sq - pow(sum1, 2) / len(v1)) * (sum2Sq - pow(sum2, 2) / len(v2)))
if(den == 0):
return 0
return 1.0 - nums/den
#距离函数
def pearson(v1, v2):
sum1 = sum(v1)
sum2 = sum(v2)
eSum1 = sum1 / len(v1)
eSum2 = sum2 / len(v2)
pSum = sum([(v1[i] - eSum1) * (v2[i] - eSum2) for i in range(len(v1))])
pTmp1 = sqrt(sum([pow(v1[i] -eSum1, 2) for i in range(len(v1))]))
pTmp2 = sqrt(sum([pow(v2[i] -eSum2, 2) for i in range(len(v2))]))
pSqrtSum = pTmp1 * pTmp2
if pSqrtSum == 0:
return 0
return 1 - pSum / pSqrtSum
class bicluster:
def __init__(self, vec, left = None, right = None, distance = 0.0, id = None):
self.vec = vec
self.left = left
self.right = right
self.distance = distance
self.id = id
def vis(self):
print self.vec
#层次聚类
def hCluster(rows, distanceFunc = pearson):
distances = {}
currentClustId = -1
clust = [bicluster(rows[i], id = i) for i in range(len(rows))]
while len(clust) > 1:
lowestPair = (0, 1)
closest = distanceFunc(clust[0].vec, clust[1].vec)
for i in range(len(clust)):
for j in range(i + 1, len(clust)):
if(clust[i].id, clust[j].id) not in distances:
distances[(clust[i].id, clust[j].id)] = distanceFunc(clust[i].vec, clust[j].vec)
d = distances[(clust[i].id, clust[j].id)] #直接写成i，j了， 真是找了我半天
if d < closest:
closest = d
lowestPair = (i, j)
mergevec = [(clust[lowestPair[0]].vec[i] + clust[lowestPair[1]].vec[i]) / 2.0 for i in range(len(clust[lowestPair[0]].vec))]
newCluster = bicluster(mergevec, clust[lowestPair[0]], clust[lowestPair[1]], closest, currentClustId)
currentClustId -= 1
del clust[lowestPair[1]] #must first del 1, then 0
del clust[lowestPair[0]]
clust.append(newCluster)
return clust[0]
#k-均值聚类
def kcluster(rows, distanceFunc = pearson, k = 5):
ranges = [(min(row[i] for row in rows), max(row[i] for row in rows)) for i in range(len(rows[0]))]
clusters = [[random.random() * (ranges[i][1] - ranges[i][0]) + ranges[i][0] for i in range(len(rows[0]))] for j in range(k)]
bestMatches = None
for t in range(100):
print "iter is: %d" %(t)
lastMatches = [[] for i in range(k)]
for i in range(len(rows)):
row = rows[i]
lastMatch = 0
for j in range(k):
d = distanceFunc(clusters[j], row)
if d < distanceFunc(rows[lastMatch], row):
lastMatch = j
lastMatches[lastMatch].append(i)
if lastMatches == bestMatches:
break;
bestMatches = lastMatches
#move center
for i in range(k):
if len(bestMatches[i]) > 0:
newRow = []
for j in range(len(rows[0])):
sum = 0
for v in range(len(bestMatches[i])):
sum += rows[v][j]
newRow.append(sum)
for j in range(len(newRow)):
newRow[j] = newRow[j] / len(bestMatches[i])
clusters[i] = newRow
return bestMatches
#以缩进方式打印层次聚类的树
def printClust(clust, labels = None, n = 0):
for i in range(n):print ' ',
if clust.id < 0:
print '-'
else:
if labels == None:
print clust.id
else:
print labels[clust.id]
if clust.left != None:
printClust(clust.left, labels = labels, n = n + 1)
if clust.right != None:
printClust(clust.right, labels = labels, n = n + 1)
def getHeight(clust):
if clust.left == None and clust.right == None:
return 1
return getHeight(clust.left) + getHeight(clust.right)
def getDepth(clust):
if clust.left == None and clust.right == None:
return 1
return max(getDepth(clust.left), getDepth(clust.right)) + clust.distance
def drawnode(draw, clust, x, y, scaling, labels):
if clust.id < 0:
h1 = getHeight(clust.left)
h2 = getHeight(clust.right)
top = y - (h1 + h2) / 2
bottom = y + (h1 + h2) / 2
li = clust.distance * scaling
draw.line((x, top + h1/2, x, bottom - h2/2), fill = (255, 0, 0))
draw.line((x, top + h1/2, x + li, top + h1/2), fill = (255, 0, 0))
draw.line((x ,bottom - h2/2, x + li, bottom - h2/2), fill = (255, 0, 0))
drawnode(draw, clust.left, x + li, top + h1/2, scaling, labels)
drawnode(draw, clust.right, x + li, bottom - h2/2, scaling, labels)
else:
draw.text((x + 5, y - 7), labels[clust.id], (0, 0, 0))
#以属性结构打印层次聚类的关系
def drawdendrogram(clust, labels, jpeg = "clusters.jpg"):
h = getHeight(clust)
w = 1200
depth = getDepth(clust)
scaling = float(w - 150) / depth
img = Image.new("RGB", (w, h), (255, 255, 255))
draw = ImageDraw.Draw(img)
draw.line((0, h/2, 10, h/2), fill = (255, 0, 0))
drawnode(draw, clust, 10, (h/2), scaling, labels)
img.save(jpeg, "JPEG")
(rowNames, colNames, data) = readFile("F:\ py\ dataFetch\ julei\ data\ blogdata.txt")
print kcluster(data)
#cluster = hCluster(data, distanceFunc = pearsonBeta)
#drawdendrogram(cluster, rowNames)
