利用cv2.findContours()进行物体轮廓检测

 import cv2


 import numpy as np

 img = cv2.imread('contours.bmp')    #读取图像

 gray = cv2.cvtColor(img,cv2.COLOR_BGR2GRAY) #转为灰度值图

 ret, binary = cv2.threshold(gray,127,255,cv2.THRESH_BINARY) #转为二值图

 contours, hierarchy = cv2.findContours(binary,cv2.RETR_LIST,cv2.CHAIN_APPROX_SIMPLE) #寻找轮廓

 cv2.imshow("img",img) #显示原图像

 n=len(contours)       #轮廓个数

 contoursImg=[]

 for i in range(n):

     length = cv2.arcLength(contours[i], True)  #获取轮廓长度

     area = cv2.contourArea(contours[i])        #获取轮廓面积

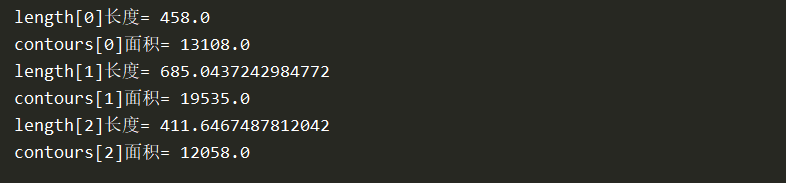

     print('length['+str(i)+']长度=',length)

     print("contours["+str(i)+"]面积=",area)

     temp=np.zeros(img.shape,np.uint8) #生成黑背景

     contoursImg.append(temp)

     contoursImg[i]=cv2.drawContours(contoursImg[i],contours,i,(255,255,255), 3)  #绘制轮廓

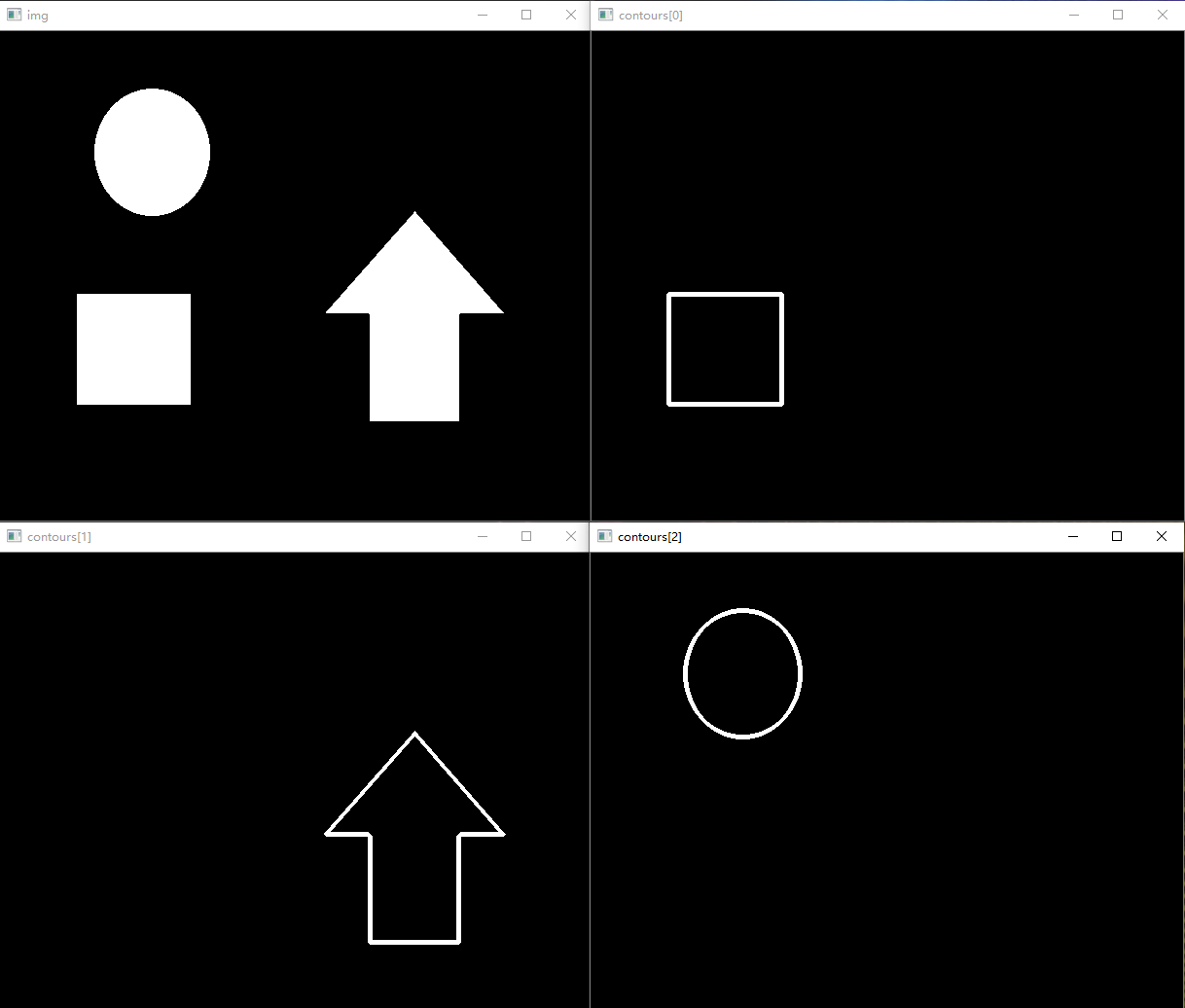

     cv2.imshow("contours[" + str(i)+"]",contoursImg[i])   #显示轮廓

 cv2.waitKey()

 cv2.destroyAllWindows()

 import cv2


 import numpy as np

 img = cv2.imread('loc3.jpg')

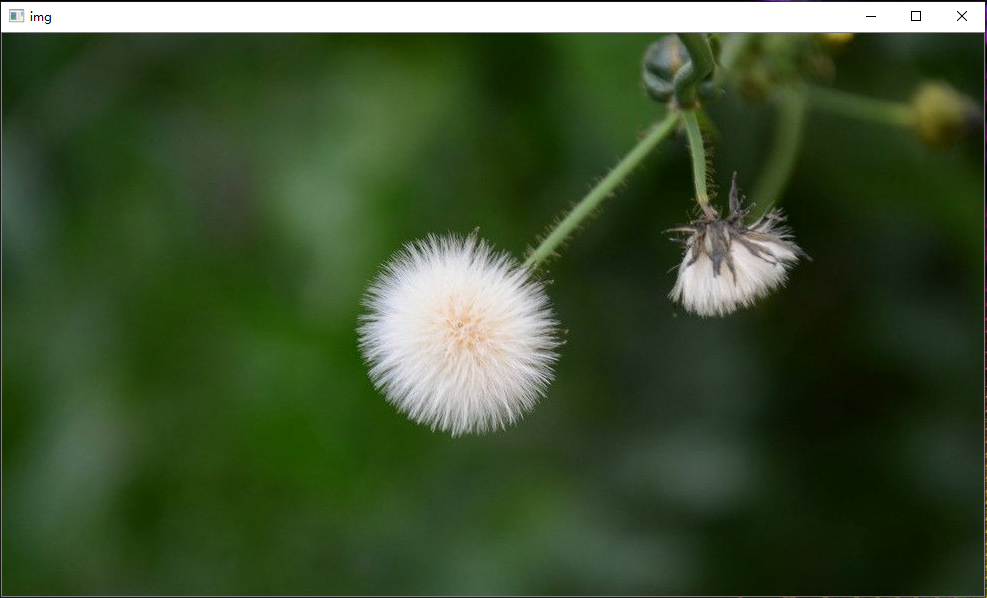

 cv2.imshow("img",img)   #显示原图像

 gray = cv2.cvtColor(img,cv2.COLOR_BGR2GRAY)      #转为灰度图

 ret, binary = cv2.threshold(gray,127,255,cv2.THRESH_BINARY)  #转为二值图

 contours, hierarchy = cv2.findContours(binary,cv2.RETR_LIST,cv2.CHAIN_APPROX_SIMPLE)#寻找轮廓

 mask=np.zeros(img.shape,np.uint8)  #生成黑背景，即全为0

 mask=cv2.drawContours(mask,contours,-1,(255,255,255),-1)  #绘制轮廓，形成掩膜

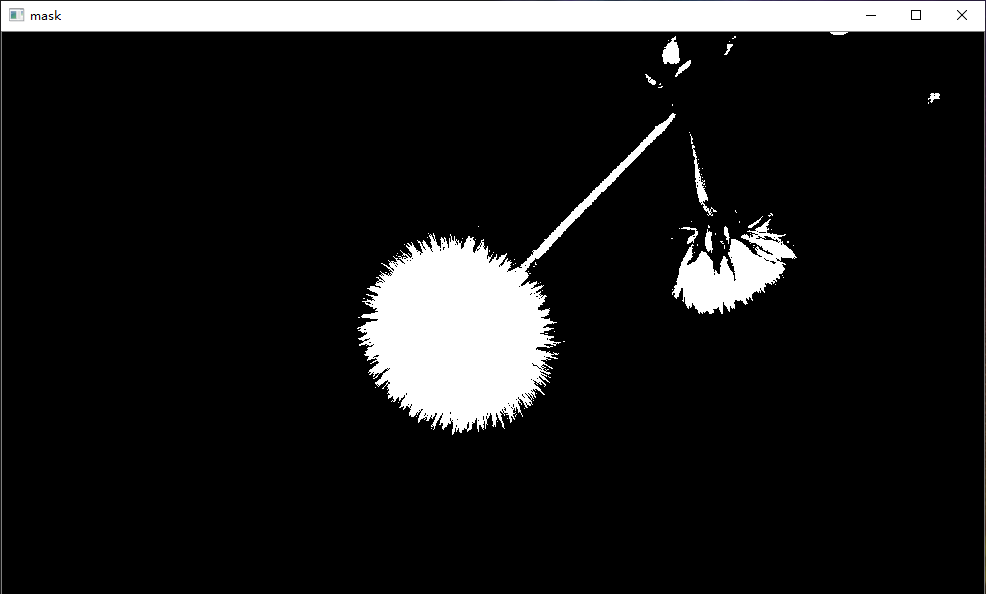

 cv2.imshow("mask" ,mask)        #显示掩膜

 result=cv2.bitwise_and(img,mask)   #按位与操作，得到掩膜区域

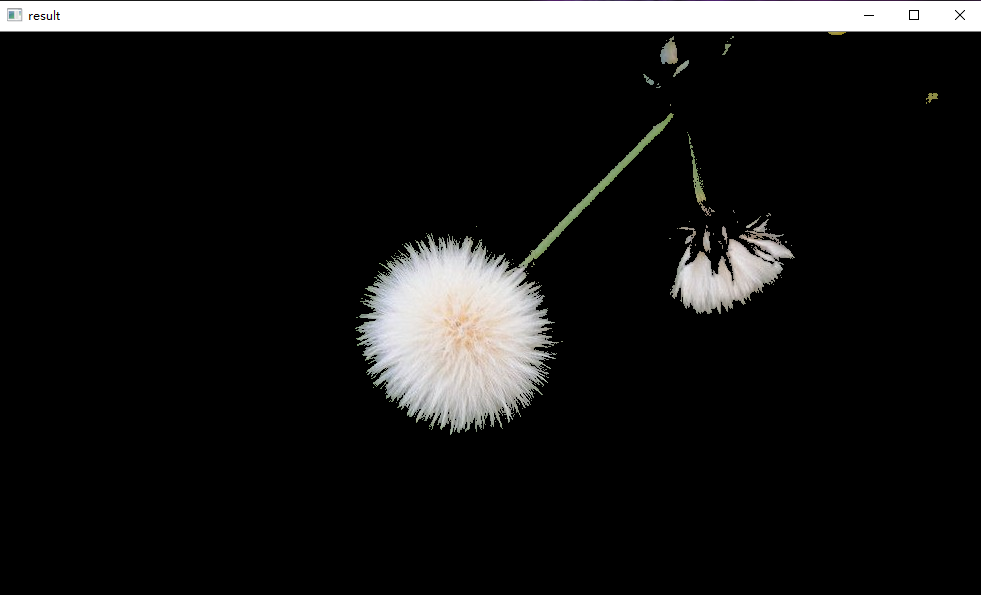

 cv2.imshow("result" ,result)     #显示图像中提取掩膜区域

 cv2.waitKey()

 cv2.destroyAllWindows()

 import cv2


 import numpy as np

 img1 = cv2.imread('cc.bmp')

 cv2.imshow("img",img1)  #显示原始图像

 img2 = np.copy(img1)

 img3 = np.copy(img1)

 img4 = np.copy(img1)

 img5 = np.copy(img1)

 gray = cv2.cvtColor(img1,cv2.COLOR_BGR2GRAY)  #转为灰度值图

 ret, binary = cv2.threshold(gray,127,255,cv2.THRESH_BINARY)   #转为二值图

 contours, hierarchy = cv2.findContours(binary,cv2.RETR_LIST,cv2.CHAIN_APPROX_SIMPLE)  #寻找轮廓

 x,y,w,h = cv2.boundingRect(contours[0])  #轮廓点

 result1 = cv2.rectangle(img1,(x,y),(x+w,y+h),(255,255,255),2)  #构造矩形方框

 rect = cv2.minAreaRect(contours[0])  #最小面积方框

 points = cv2.boxPoints(rect)

 points = np.int0(points)  #取整

 result2=cv2.drawContours(img2,[points],0,(255,255,255),2)

 (x,y),radius = cv2.minEnclosingCircle(contours[0]) #寻找中心点，半径

 center = (int(x),int(y))

 radius = int(radius)

 result3 = cv2.circle(img3,center,radius,(255,255,255),2)  #绘制圆

 ellipse = cv2.fitEllipse(contours[0])   #寻找椭圆

 result4 = cv2.ellipse(img4,ellipse,(0,255,0),3)  #绘制椭圆

 area,trgl = cv2.minEnclosingTriangle(contours[0])  #寻找三角形

 for i in range(0, 3):                               #绘制三角形

     result5 = cv2.line(img5, tuple(trgl[i][0]), tuple(trgl[(i + 1) % 3][0]), (255,255,255), 2)

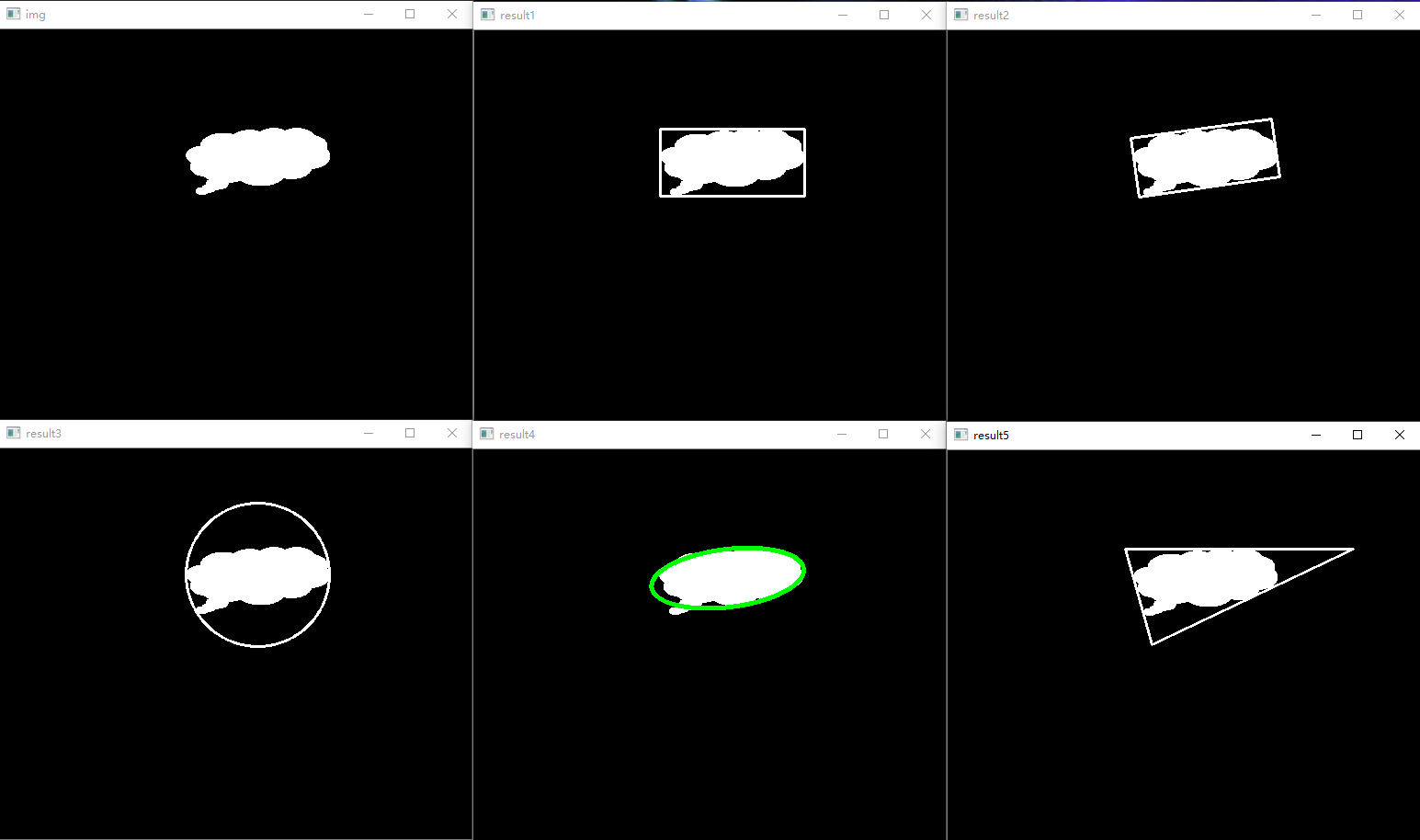

 cv2.imshow("result1",result1) #显示结果图像

 cv2.imshow("result2",result2)

 cv2.imshow("result3",result3)

 cv2.imshow("result4",result4)

 cv2.imshow("result5",result5)

 cv2.waitKey()

 cv2.destroyAllWindows()

 import cv2


 import numpy as np



 img = cv2.imread('ct.png')

 cv2.imshow("img",img)



 gray = cv2.cvtColor(img,cv2.COLOR_BGR2GRAY)

 ret, binary = cv2.threshold(gray,127,255,cv2.THRESH_BINARY)

 contours, hierarchy = cv2.findContours(binary,cv2.RETR_LIST,cv2.CHAIN_APPROX_SIMPLE)

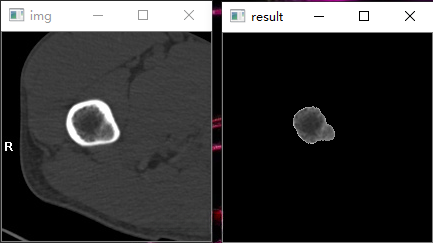

 ct=contours[2]            #coutours[0]、coutours[1]是左侧字母R



 mask = np.zeros(img.shape,np.uint8)

 mask = cv2.drawContours(mask,[ct],-1,(255,255,255),-1) #生成掩膜

 result = cv2.bitwise_and(img,mask)  #按位与，获取掩膜感兴趣区域

 cv2.imshow("result",result)

 cv2.waitKey()

 cv2.destroyAllWindows()
