SVM进行乳腺癌预测

 import matplotlib


 import pandas as pd

 import seaborn as sns

 import matplotlib.pyplot as plt

 from sklearn.model_selection import train_test_split

 from sklearn import svm

 from sklearn.preprocessing import StandardScaler

 import numpy as np

 #加载数据源

 data = pd.read_csv(r'C:\Users\john\Desktop\暑假论文\乳腺癌预测SVM\breast_cancer_data-master\breast_cancer_data-master\data.csv')




    代码解释

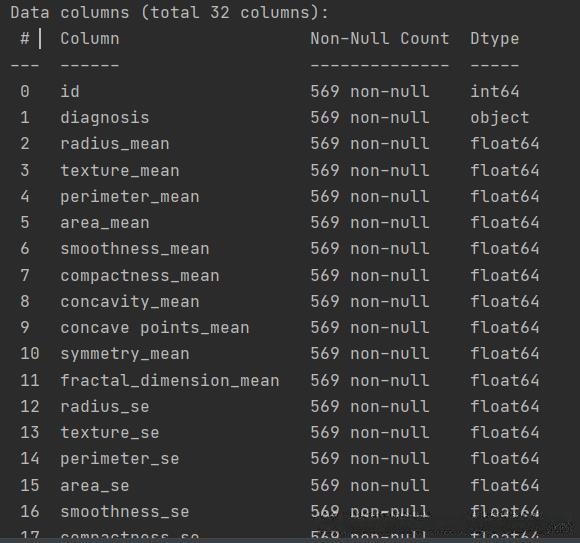

 data.info()


 data.columns




    代码解释

 #id没有实际意思，去掉


 data.drop('id',axis=1,inplace=True)#inplace=True不创建新的对象，直接对原始对象进行修改；

 #diagnosis字段的取值即分类结果为B或M，可以用0和1来替代

 data['diagnosis'] = data['diagnosis'].map({'M':1,'B':0})

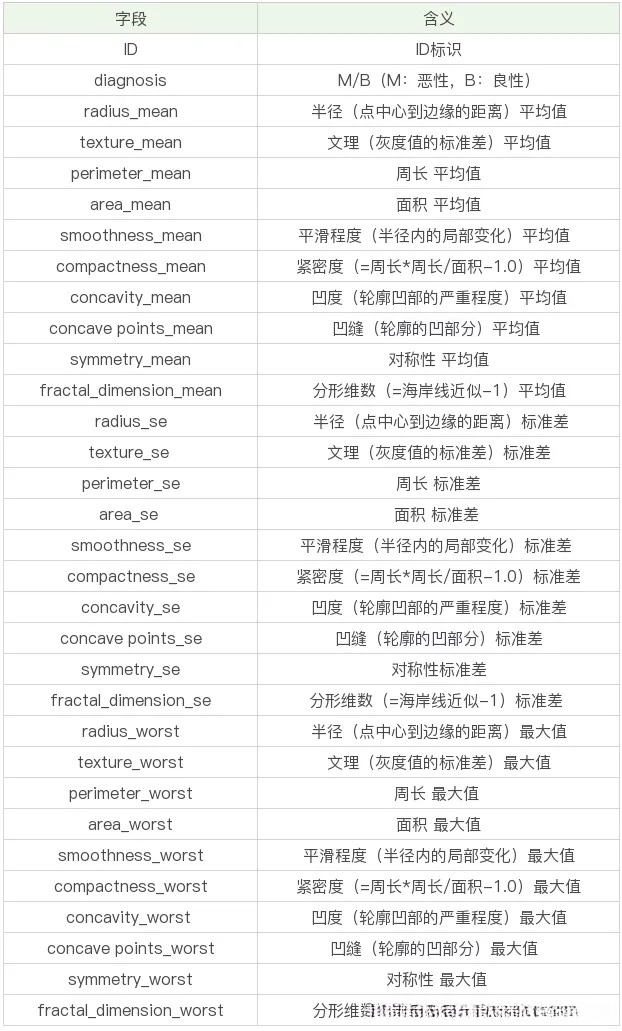

 #后面30个字段可以分成3组

 featurs_mean = list(data.columns[1:11])

 featurs_se = list(data.columns[12:21])

 featurs_worst = list(data.columns[22:31])




    代码解释

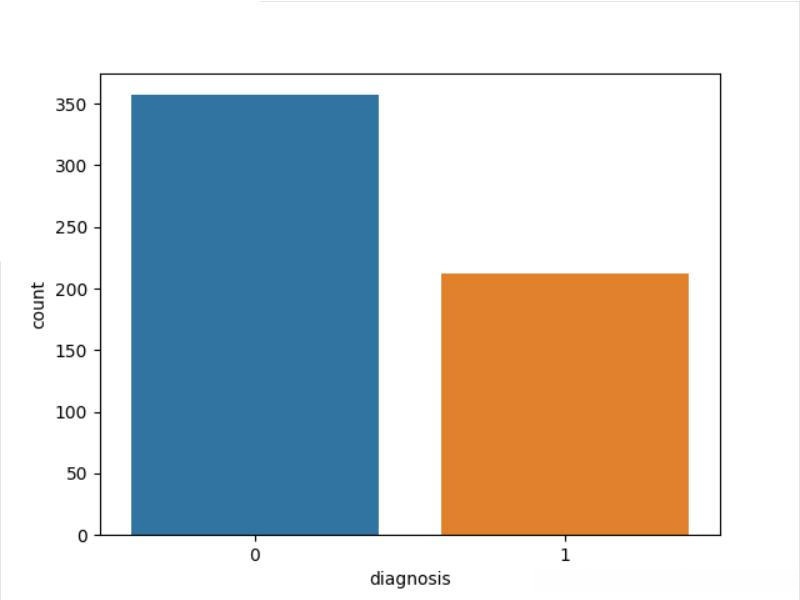

 #肿瘤结果可视化


 #看整体良性，恶行肿瘤的诊断情况

 sns.countplot(data['diagnosis'],label='Count')

 plt.show()

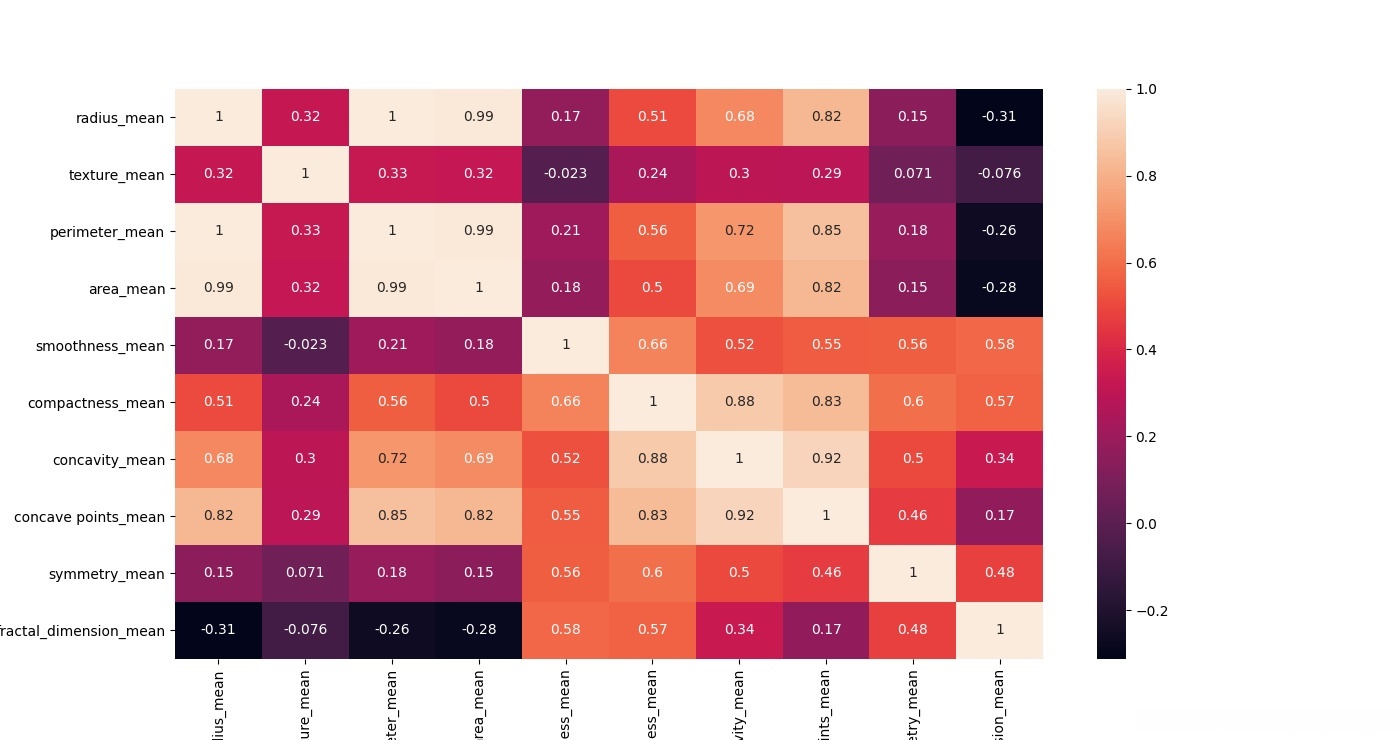

 #看整体良性、恶性肿瘤的诊断情况

 corr = data[featurs_mean].corr()

 plt.figure(figsize=(14,14))

 sns.heatmap(corr,annot=True)     #annot = True 显示每个方格的数据

 plt.show()




    代码解释

 features_remain = ['radius_mean','texture_mean','smoothness_mean','compactness_mean',


                'symmetry_mean','fractal_dimension_mean']




    代码解释

 #模型训练


 #抽取30%数据作为测试集，其他作为训练集

 train,test = train_test_split(data,test_size=0.3)

 train_x = train[features_remain]

 train_y = train['diagnosis']

 test_x = test[features_remain]

 test_y = test['diagnosis']



 #采用Z-score规范化数据，保证每个特征维度均值为0，方差为1

 ss = StandardScaler()

 train_x = ss.fit_transform(train_x)

 test_x = ss.transform(test_x)



 #创建SVM分类器

 model = svm.SVC()

 #训练

 model.fit(train_x,train_y)

 #测试集做预测

 prediction = model.predict(test_x)

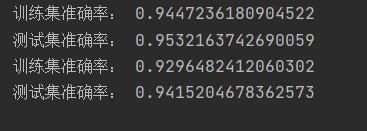

 print('训练集准确率：',model.score(train_x,train_y))

 print('测试集准确率：',model.score(test_x,test_y))



 #LinearSVC()

 model = svm.LinearSVC()

 #训练

 model.fit(train_x,train_y)

 #测试集做预测

 prediction = model.predict(test_x)

 print('训练集准确率：',model.score(train_x,train_y))

 print('测试集准确率：',model.score(test_x,test_y))




    代码解释
